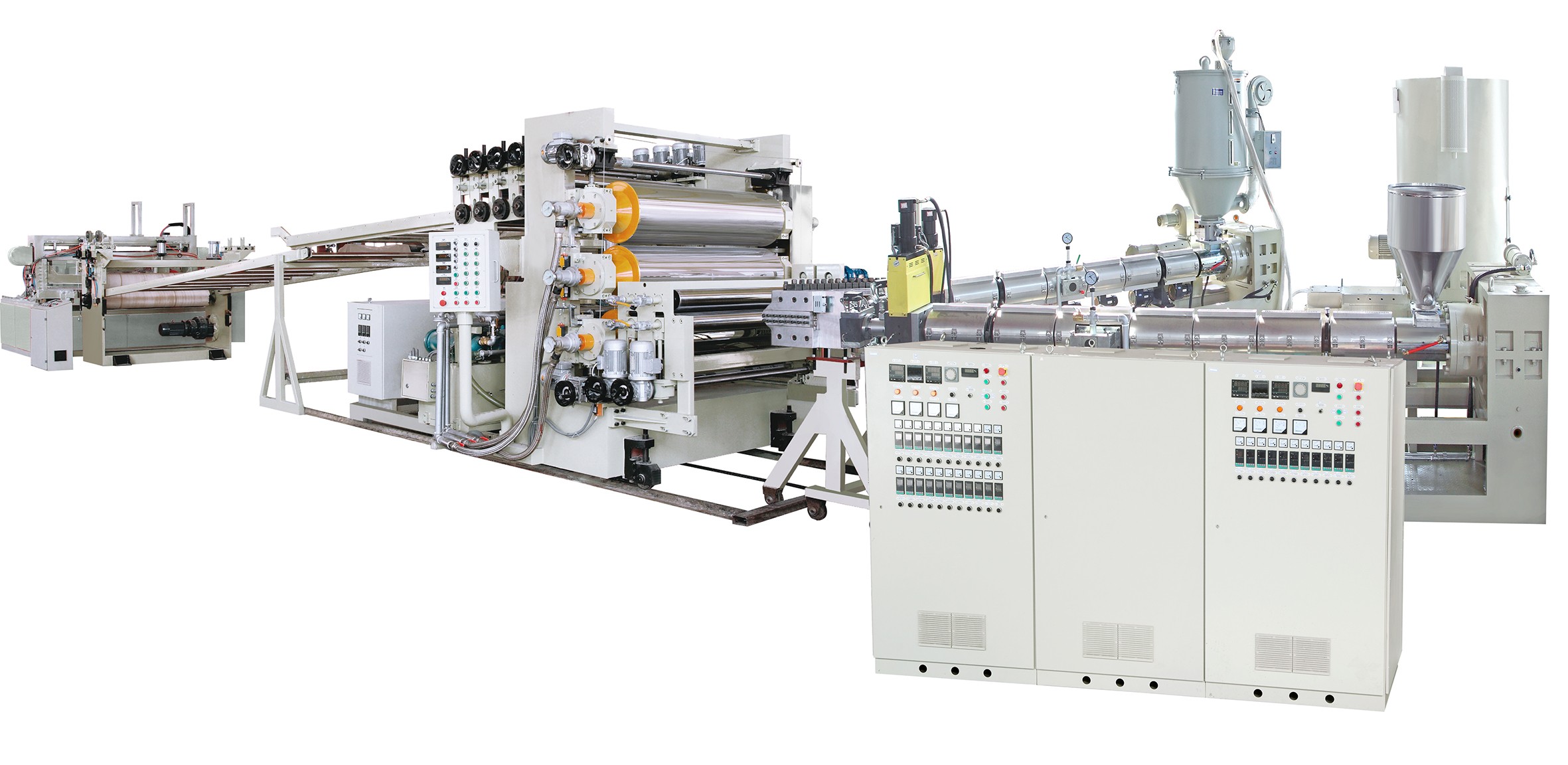

PE PVC PP Waterproof Sheet Production Line
Product Application

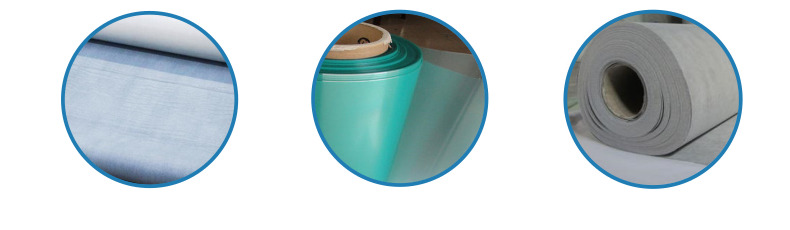

This production line is mainly used for PVC, PP.PE and other waterproof materials, the product industry and construction of various roofing waterproof, basement, reservoir, dam, highway tunnel, railway tunnel, shelter, grain depot, garbage plant, waste water treatment and other construction waterproof engineering.
PVC,PP, PE new waterproof material has strong anti-permeability, good waterproof, high temperature resistance, low temperature resistance, good strength and elongation, and excellent aging resistance characteristics.
Product Features
Compact structure, stable operation, high productivity, low energy consumption, good plasticizing.
Our single-layer and multi-layer co-extrusion line can highly satisfy customer's special requirements. Machine can adopt single extruder or double extruder, equip with horizontal calender，gradient calender，vertical calender based on customer's special requirements of products.
Production Flow

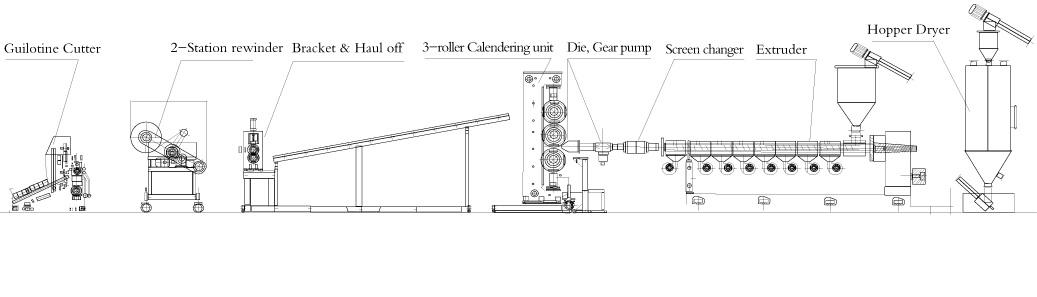

Feeding→ extruder→ filter (screen changing) → mold → three roller calender →cooling → haul-off → cutting → rewinding→ inspection→ storage
Technical Parameters
型号Model / 参数Paramenter | SBP800 | SBP1220 | SBP2000 | SBP5000 |
片材规格(mm) Width of sheet(mm) | 800 | 1220 | 2000 | 5000 |
产量(kg/h) Capacity(kg/h) | 130 | 200 | 300 | 500 |
装机功率(kw) Power(kw) | 110 | 130 | 165 | 500 |
生产线总长(m) Length of production(m) | 20 | 25 | 30 | 40 |
