PP PVC Wave Roofing Sheet Extrusion Line

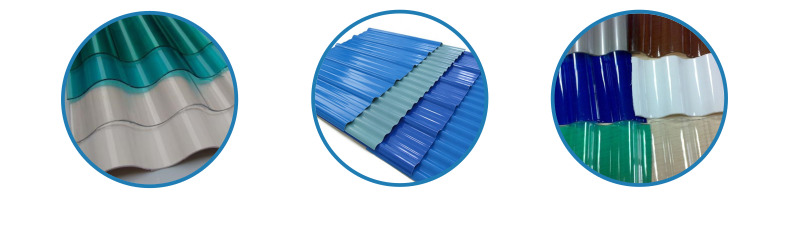

Product Application

1. Garden, agricultural greenhouse and indoor fish greenhouse sunroof, cellar, arched roof and commercial greenhouses;
2. Modern railway station, airport waiting hall and channel ceiling;
3. Modern bus station ferry terminal and other public facilities cover;
4. Plant, warehouse, market and other areas of lighting;

Product Features

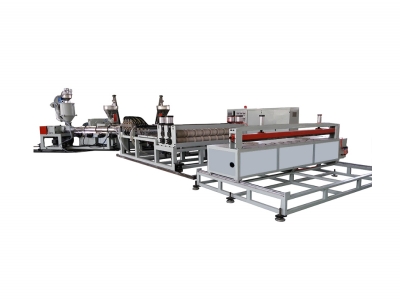

PVC Wave Roofing sheet/Tile Extrusion Line is comprised by a single or twin conical screw extruder and corresponding wave plate forming machine, cutting machine, edge trimming machine, etc.

If replacing the relevant components, this line also can produce the PC transparent wave plate, PP wave panel, chequer plank,PVC,UPVC sheet, 3-layer co-extrusion color PC, PP, PVC wave plate.

1. The line adopts conical twin-screw extruder;
2. Guide for formulation and raw material purchasing can be provided;
3. Low production cost and excellent product function;
4. Single layer or A+B/A+B+C/A+B+A multi-layer tile can be chosen;

Production Flow

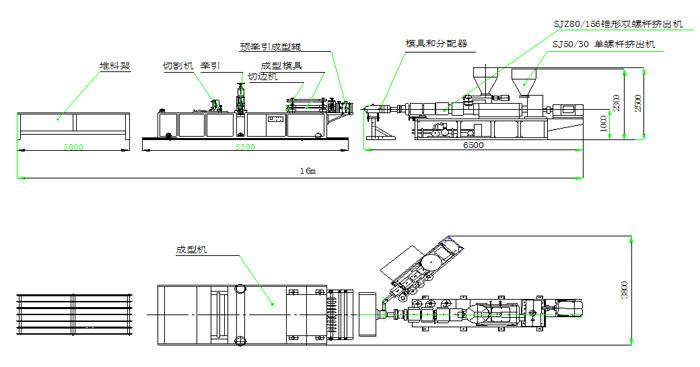

Single screw extruder/Conical twin screw extruder→co-extruder → co-extrusion die head→ embossing and cooling rollers→forming machine→ haul-off cutting machine→ stacker

Technical Parameters
