Plastic cursher
Product Application
PS series Plastic Crusher(Shredder) is suitable for crush various soft and hard plastics, take the board, ball-type bar-type and offcut of plastic to granulate into granules, in the plastic and rubber industry, it plays important role that can process and recyle the defective products, waste products and offcut of plastic quickly and promote the plastic availability
Product Features
1.Integral body,sturdy and durable,keep excellent performance after using long time.
2.Heavy loading bearing and dust protection device,the sound-proof bunker can prevent vibration and noise effectively.
3. Paddle-blades rotor adopting shear principle,made of high chromium steel,shred the various plastic easily.
4.The gap of knife is adjustable,they can be dismounted when they have been unsharped,and to be used repeatedly,long time using life.
5.Separable design,the bunker,main body,mesh frame are dismounted easily,convenient for bunker cleaning.
Technical Parameters
Model | PS200 | PS300 | PS400 | PS500 | PS600 | PS800 | SWP400 |
Diameter of Rotating Blade | 200 | 240 | 250 | 300 | 400 | 410 | 400 |
Rotating Blade Quantity | 6 | 9 | 12 | 15 | 18 | 24 | 5 |
Rotating Speed of Rotating Blade(r/min) | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
Fixed Blade Quantity: | 2 | 2 | 2 | 2 | 4 | 4 | 2 |
aperture of Screen(mm) | φ8 | φ10 | φ10 | φ10 | φ10 | φ10 | φ10 |
Grinding Capacity(kg/h) | 80-150 | 250-450 | 250-450 | 300-500 | 400-600 | 600-800 | 350-450 |
Power(kw) | 4 | 7.5 | 7.5 | 11 | 18.5 | 22 | 15 |
Power Source | 3φ380V50Hz | ||||||
Aperture of Feed Inlet(mm) | 210×230 | 260×400 | 260×400 | 320×500 | 400×600 | 420×800 | 375×320 |
Machine Weight(kg) | 350 | 650 | 650 | 850 | 1200 | 1350 | 980 |

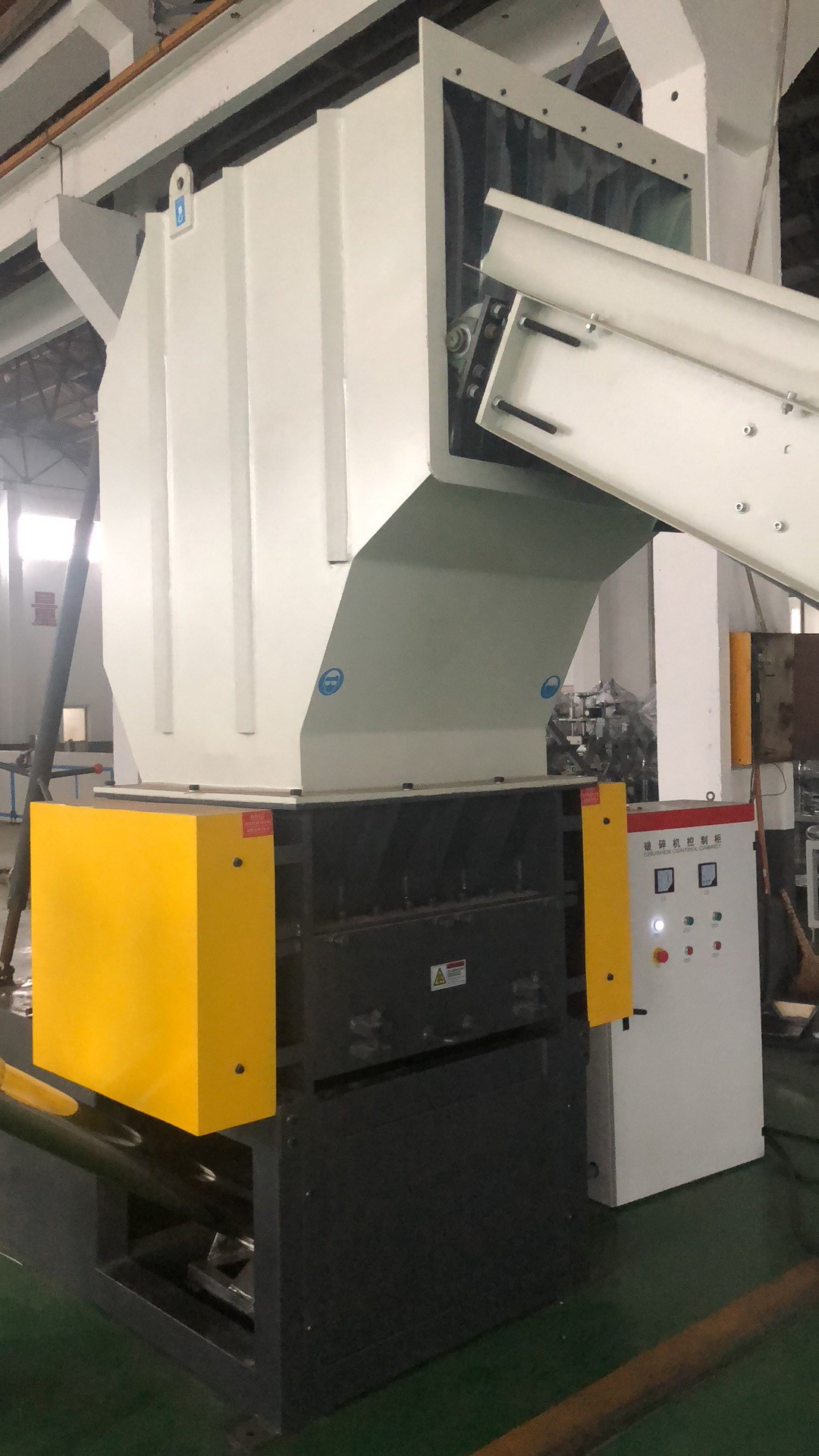

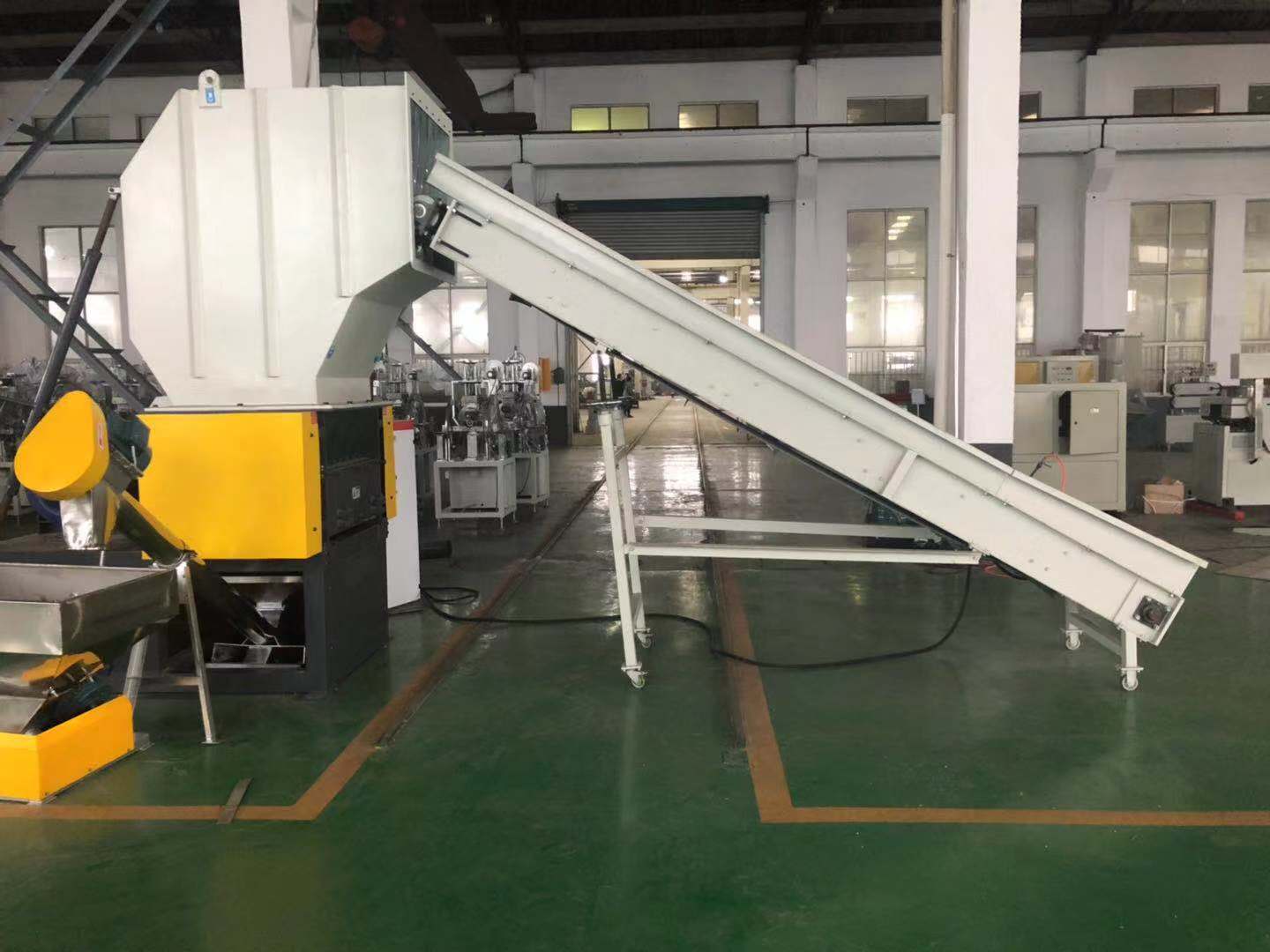

Pictures
