Pipe Belling Machine
Product Application
PVC pipe expander machine is used to belling plastic UPVC pipe.This machine can be used in the whole production line after the conical twin screw extruder and other auxiliary machines.The belling machine can belling the pipe to two type:R type and U type pipe.It can be used for belling drainage and water pipe with all kinds of sizes.It use strong wind or water to cooling PVC pipe after shaping,then the pipe shape can not transformed easily.The whole processing do not man to operate.
Product Features

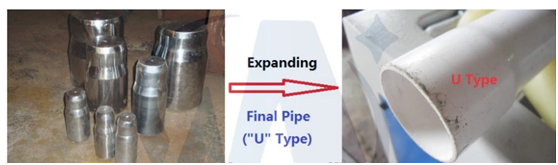

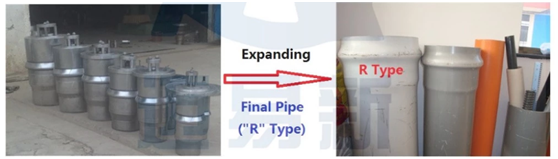

1) It is suitable for the R type and U type plastic pipes.The belling range 50-630mm.
2) It can not only used in line with the pipe production line but also can be used alone.
3) The characteristics of this machine is full automatic, stable and reliable, easy to operate.
4) It adopts vacuum calibration inside the mould and force air/water cooling outside.
Technical Parameters
Model | SGK75 | SGK160 | SGK250 | SGK315 | SGK630 |
Pipe scope(mm) | 16~75 | 50~ 160 | 50~250 | 110~315 | 315~630 |
Total power(kw) | 15 | 18 | 18 | 20 | 32 |
Expanding way | R type or U type | R type or U type | R type or U type | R type or U type | R type or U type |
Out dimension(mm) | 7460*1950*1900 | 6900*1420*2000 | 7300*1660*1920 | 8200*1750*1850 | 8420*2970*2650 |

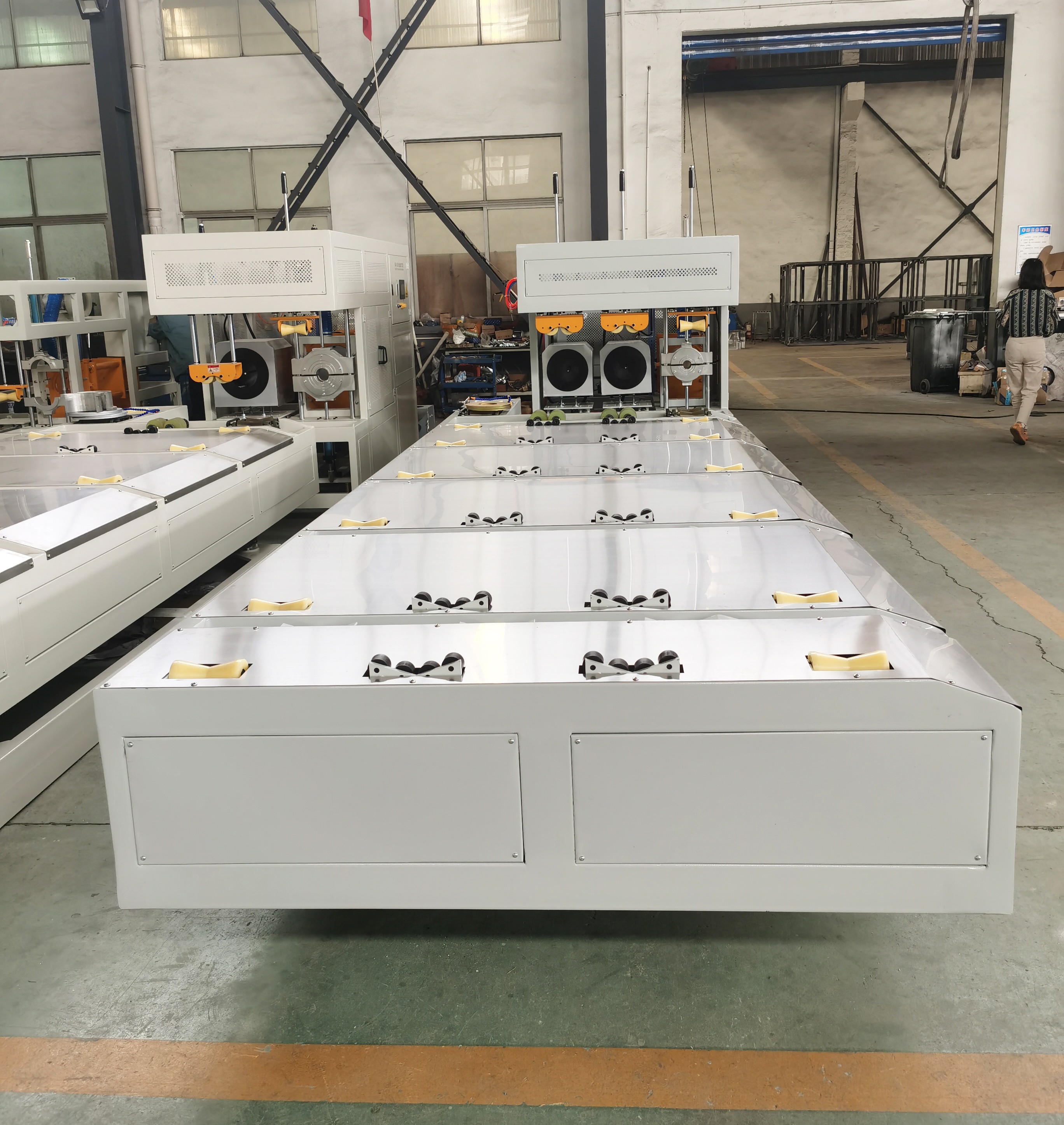

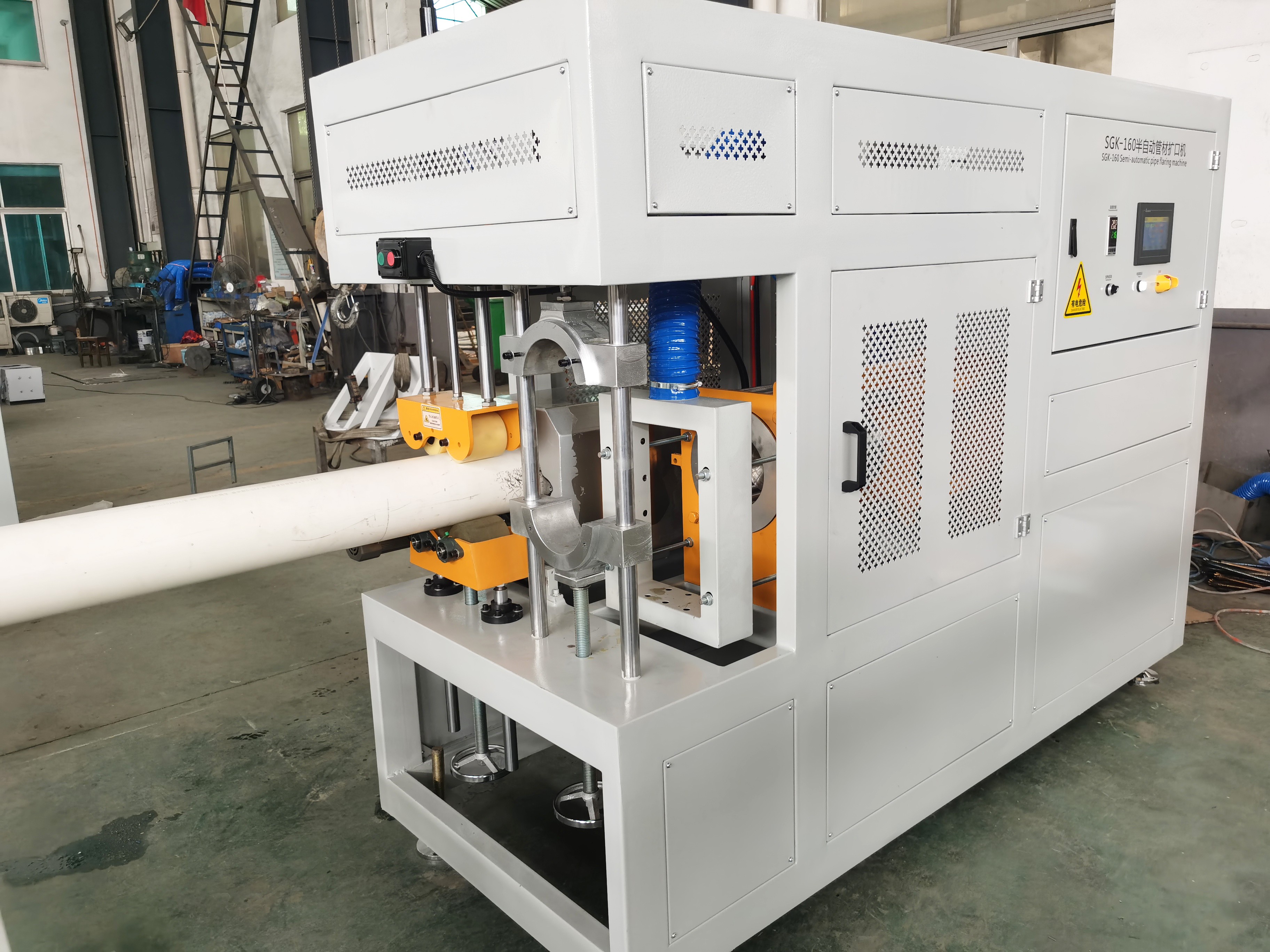

Pictures
