PVC Profile Extrusion Line
Product Application

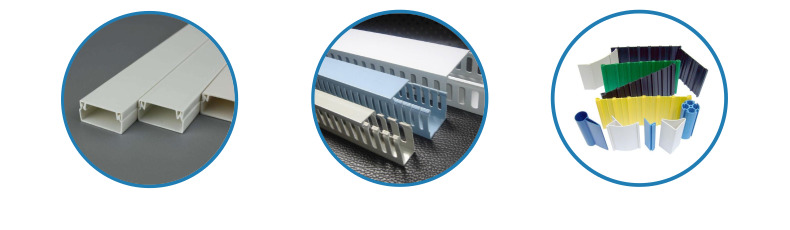

This production line is mainly used to produce PVC door & window profile, board, micro-foaming profile and micro-foaming decoration board, etc. for example, PVC plastic-steel door & window, PVC buckle plate, PVC slot, PVC hollow grid plate, etc. What’s more, after proper modification this production line can be used to produce PE pr PVC wood-plastic profile, wood-plastic floor board, construction formwork etc. Our company has coordinated service for all machines, moulds and formula, etc.
Product Features

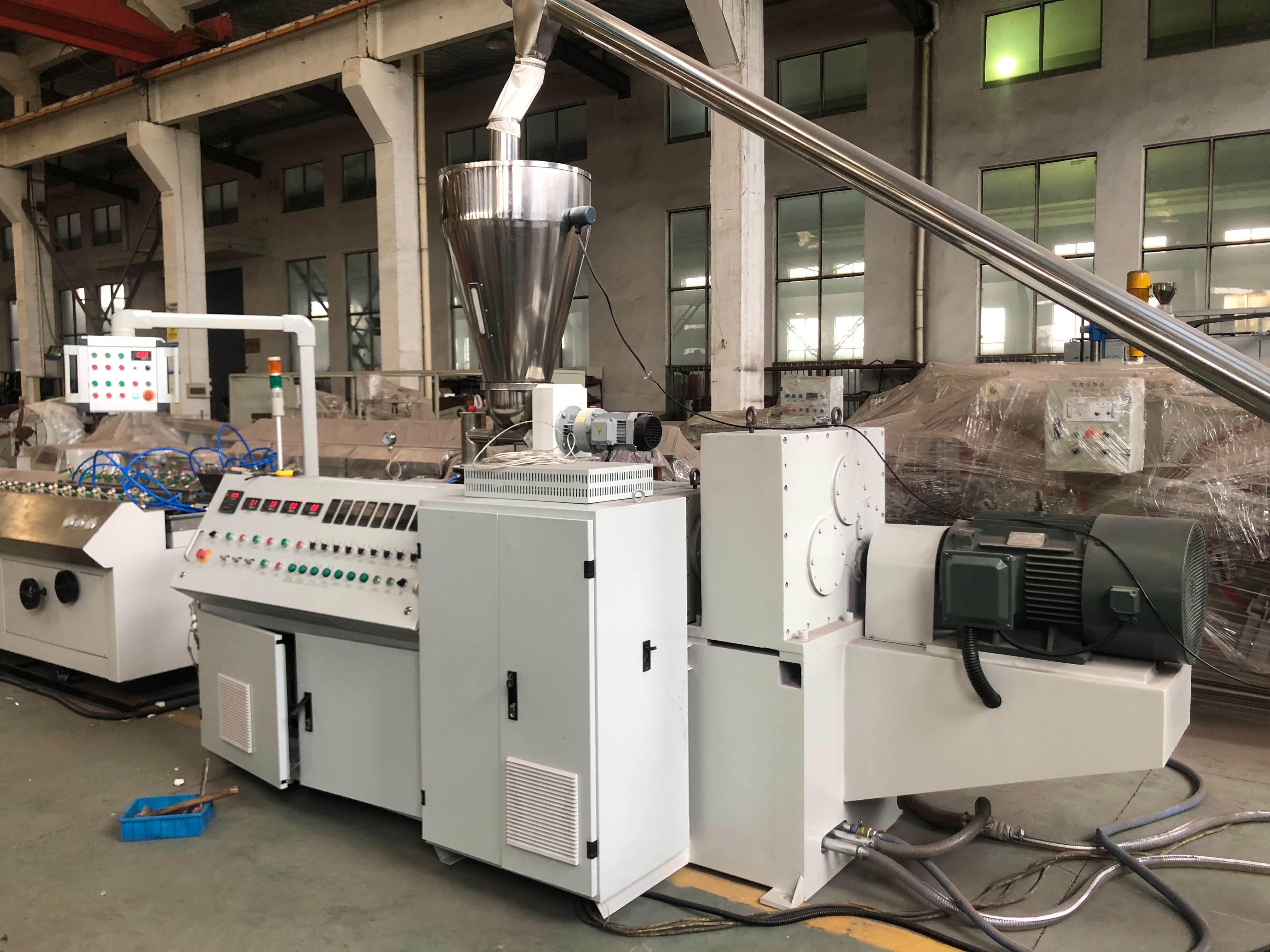

Extruding machine: conical twin-screw extruder is used to ensure high output and efficiency. Many advanced technologies are adopted such as Omron temperature control meter and frequency speed control. The auxiliary equipments such as vacuum pump and hauling motor are all top quality ones. Different products can be produced by changing moulds.
Production Flow

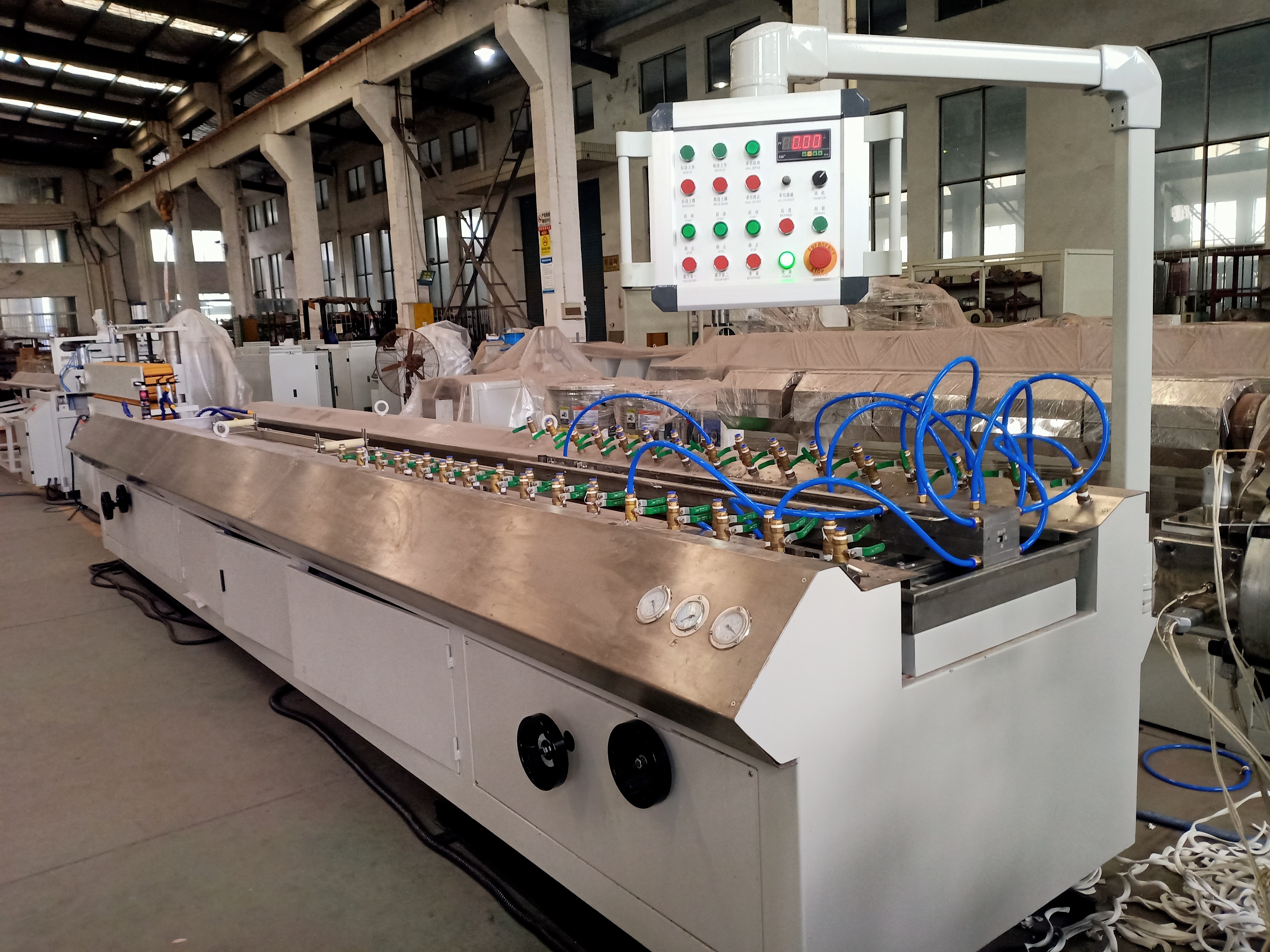

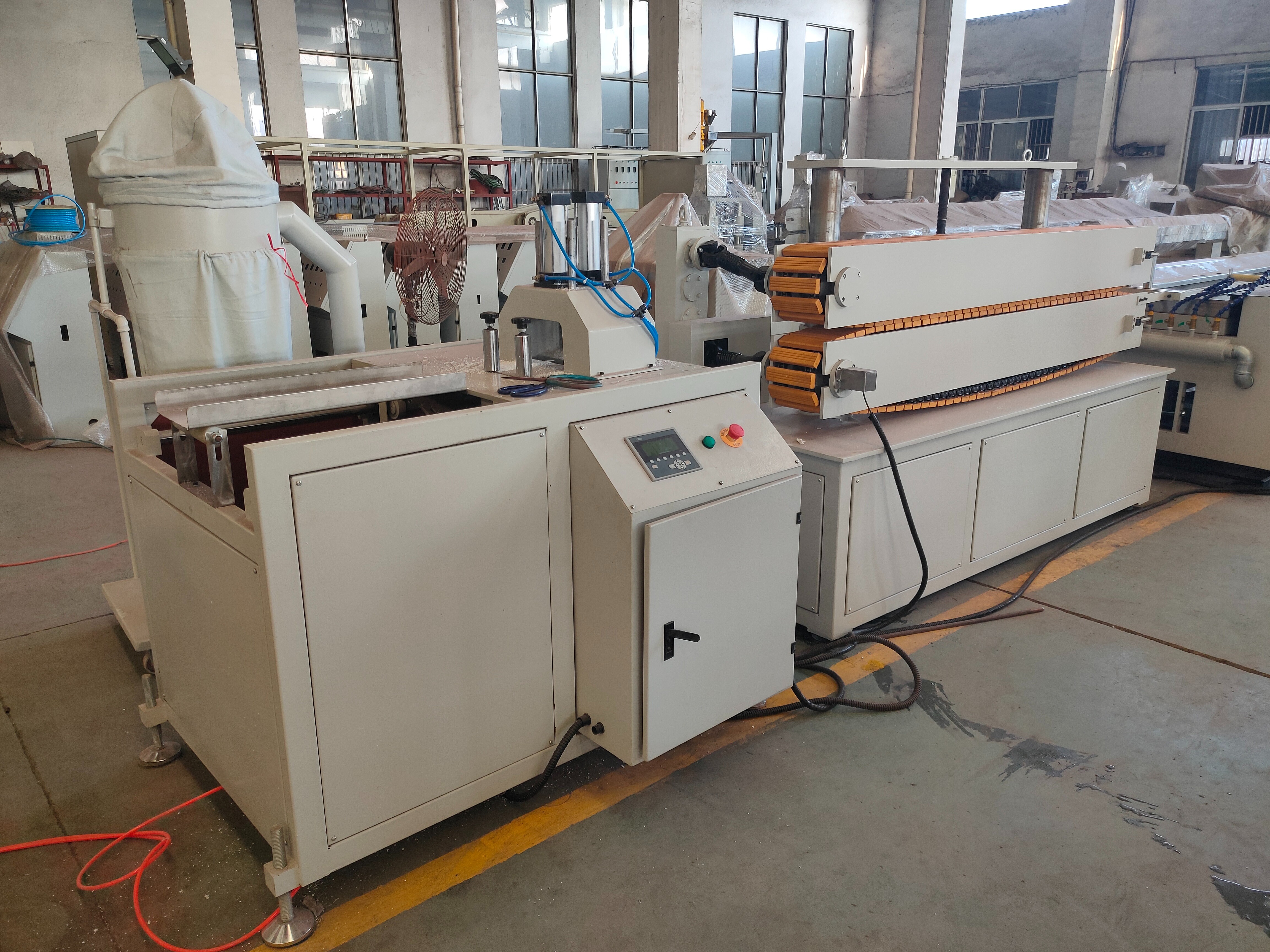

Rraw material → conical twin-screw extruder → profile mould → vacuum setting table→ tractor → cutter → stacker
Technical Parameters
Production Line | Model | YF210 | YF240 | YF500 | YF800 |
Extruder | Item | SJSZ-51 | SJSZ-65A | SJSZ-80 | SJSZ-92 |
Size (L*W*H) (mm) | 3300*1450*2100 | 3450*1450*2250 | 5000*1540*2280 | 6200*1550*2700 | |
Capacity (kg/h) | 50-150 | 80-250 | 100-360 | 200-600 | |
Power (KW) | 25 | 64 | 115 | 168 | |
Setting table | Size (L*W*H) (mm) | 4200*1000*1100 | 6200*1000*1100 | 6500*1500*1100 | 6500*1650*1100 |
Power (KW) | 18 | 24 | 30 | 43 | |
Tractor & cutter | Size (L*W*H) (mm) | 5800*1100*1700 | 5800*1100*1700 | 3100*1300*1700 | 3550*1850*1600 |
Hauling speed (m/min) | 0.1-4 | 0.1-4 | 0.1-3 | 0.1-2 | |
Hauling force (N) | 30000 | 30000 | 35000 | 50000 | |
Max. cutting section area (mm) | 240*65 | 240*65 | 500*80 | 800*80 | |
Power(KW) | 6 | 6 | 8 | 8 | |
Length of stacker (m) | 6 | 6 | 6 | 6 | |
