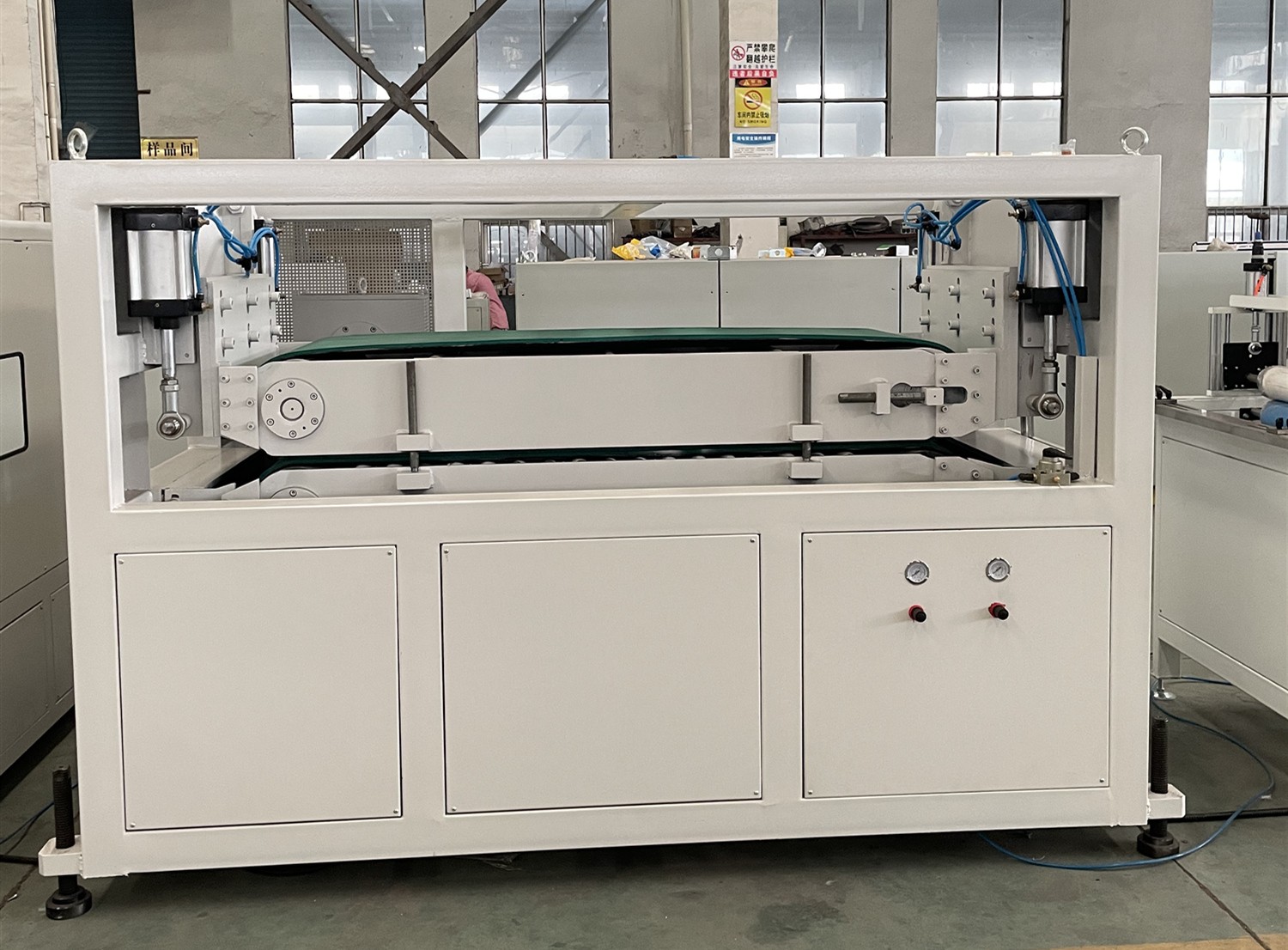

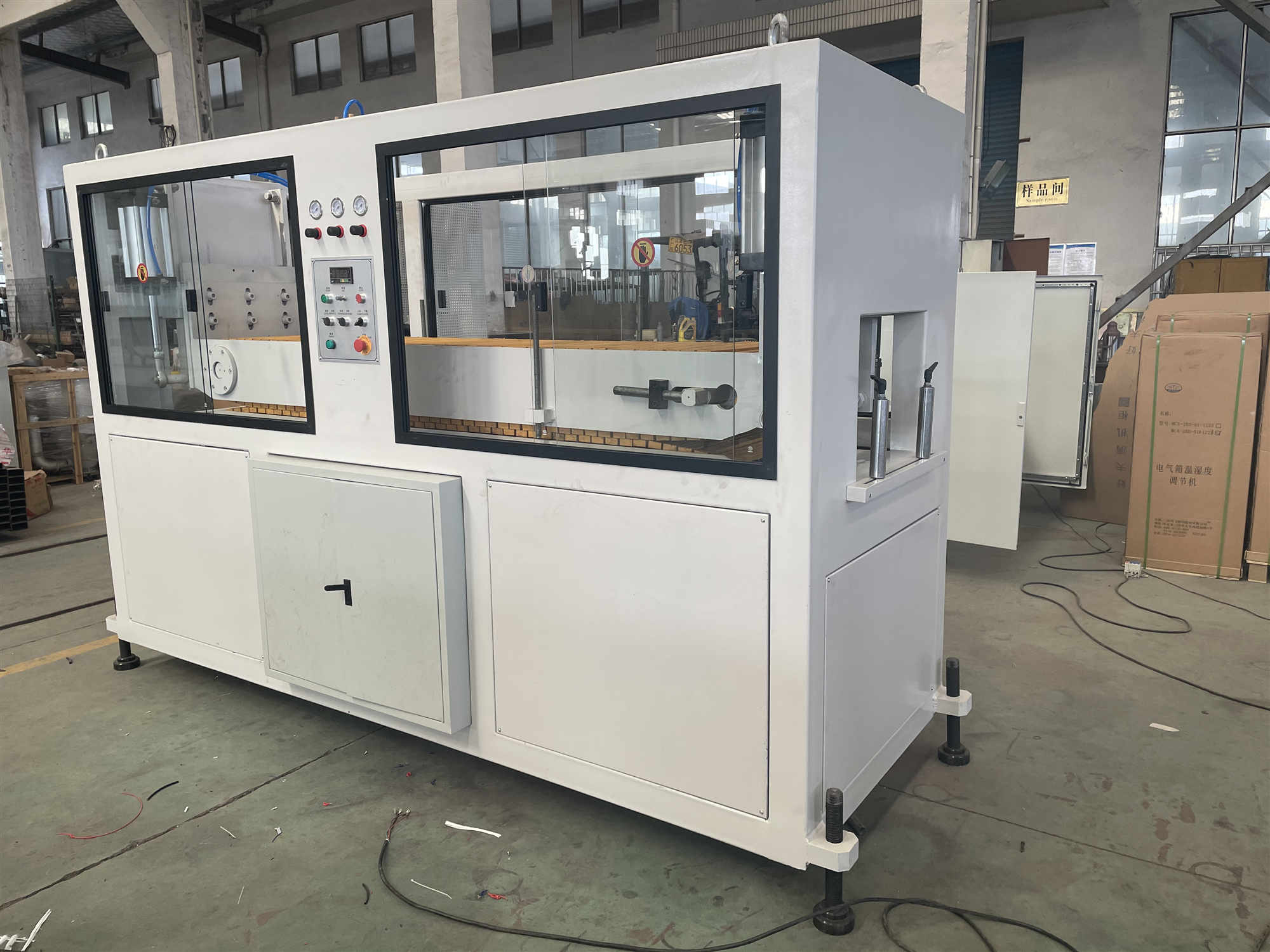

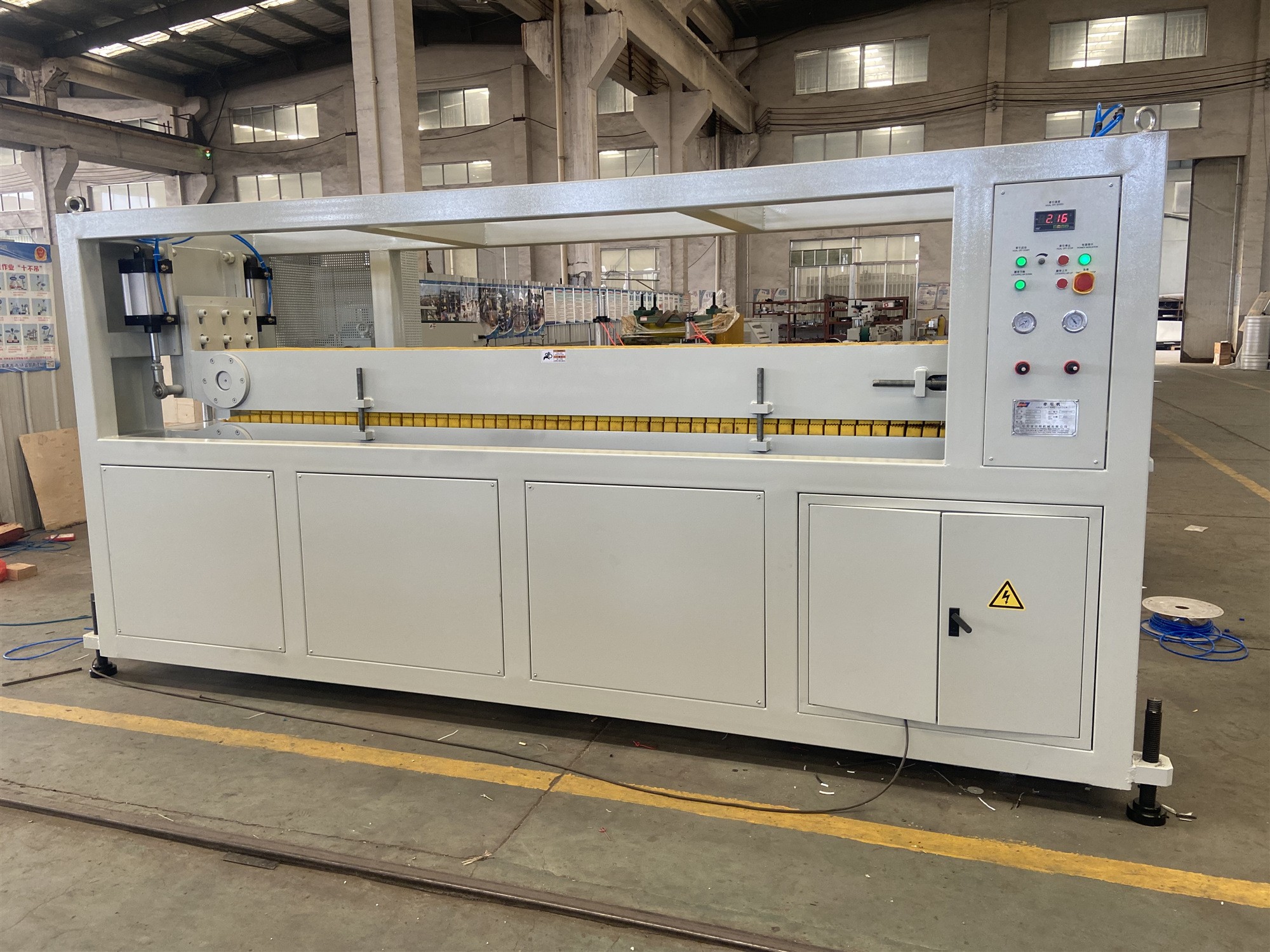

SDY-1Q Haul-off Machine
Product Application
This machine is mainly used for hauling the extruded aluminum-plastic compound pipe after cooling, drying and printing at a constant speed. The hauling system includes machine frame, driving system, pneumatic system and control system. The tractor uses pneumatic type and belt type supercharged traction to make the pressure flexible and fine control. This machine also can be used for other soft & rigid plastic pipes.
Technical Parameters
Hauling pipe size: φ10-φ70mm
Hauling speed: 0.8-15m/min
Max. hauling force: 500kg
Speed regulation: frequency control
Motor power: 2.2kw
Air pressure: 0.6MPa
