SHR Series High-speed Mixer

Product Application

SHR series mixer is widely used for mixing, agitating, drying & coloring in different fields such as plastic, rubber, dye, foods & daily chemical industry. Because of the following advantages: mixing fast and uniformly, easy to operate and clean, compact structure, sturdy and durable, etc. so it is one of the necessary machines for plastic processing. Now it gradually replaces low speed mixer and is widely used in kinds of plastic industries.

Product Features

SHR series mixer is your ideal choice because of the following features: advanced design, easy to operate, safe & reliable, small machine size, light weight, high efficiency, low energy consumption and low noise, etc.

Technical Parameters

Main structure

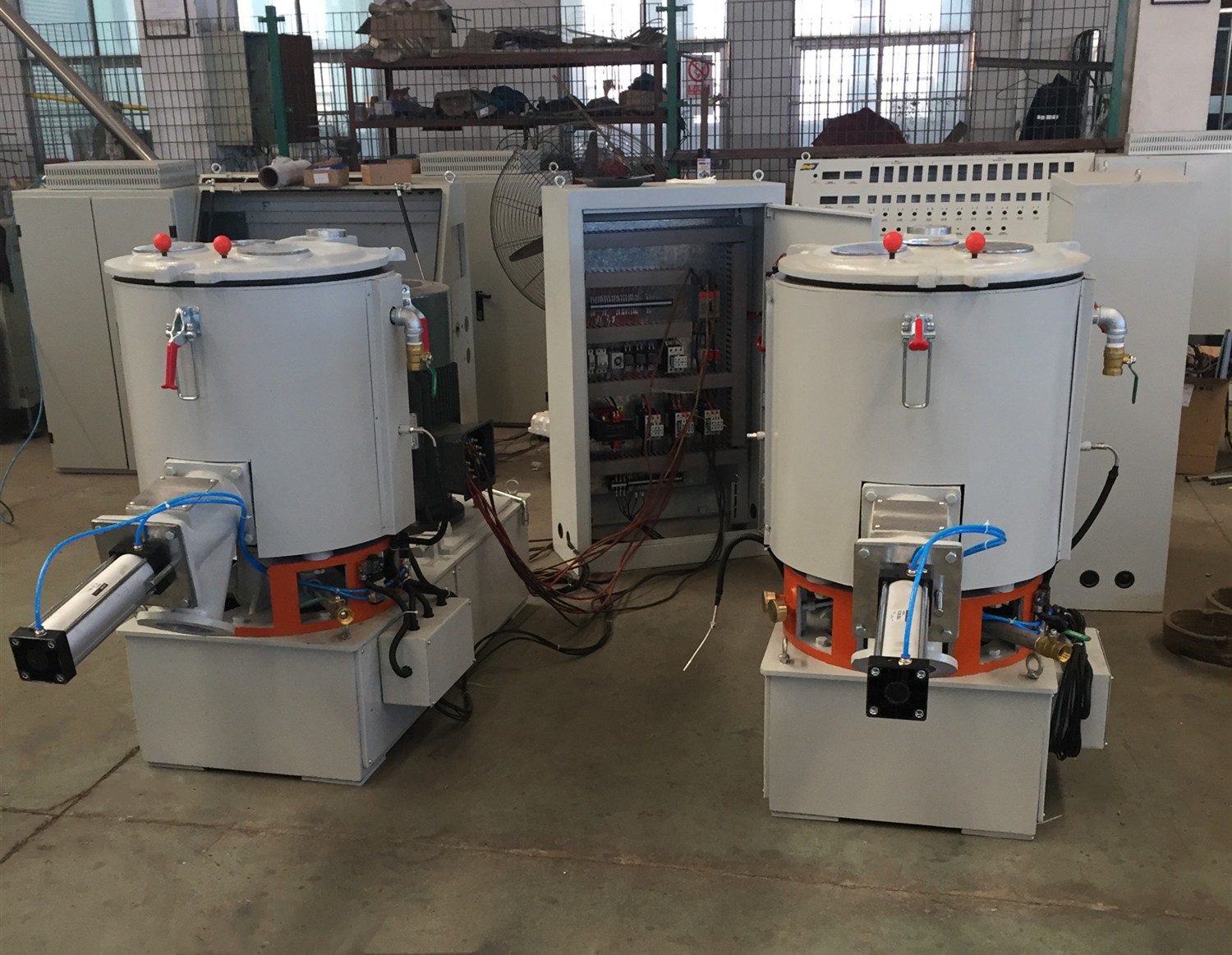

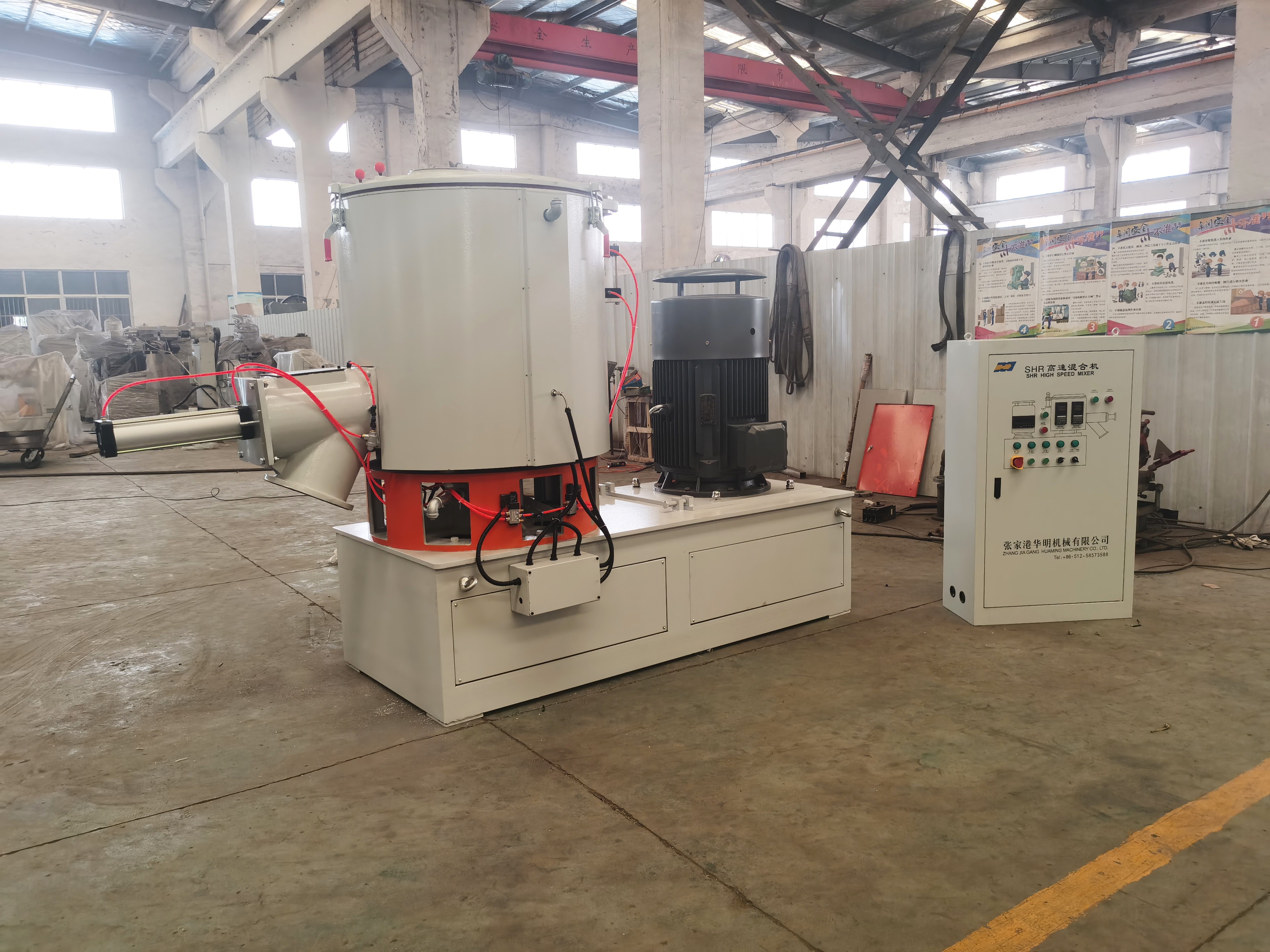

The mixer consists of machine rack, driving unit, mixing drum, lifting device, material discharging unit and electric control box. The whole machine adopts reasonable and beautiful closed-type structure.

Driving unit: the agitating blade is made by stainless steel through special processing so it is wear-resistant and corrosion-resistant. The main shaft is of fine workmanship through finish turning & grinding, quenching & tempering. There are three seals to avoid leakage: tetrafluoroethylene, gas and skeleton type oil seal.

The mixing drum has multiple layers: inner, outer and sandwich layers. The inner layer is made by stainless steel through welding. Both inner wall and bottom of the drum are made by stainless steel. The bottom is circular-arc. Inner surface is very smooth and rigid so it is wear-resistant and corrosion-resistant, also the material will not easily stick on the drum. There are heating jacket and resistance heating coil in the sandwich layer. The drum will be evenly heated through high ignition point thermal oil in heating jacket. The material temperature in drum can be controlled by adjusting thermal oil temperature. The jacket is wrapped with asbestos insulation layer so hand will not be burnt while touching the outer layer.

The mixer cover is made by aluminum alloy. Inner face is of fine workmanship through finish turning and polishing. After being lifted by cylinder, it can vertically rotate and horizontally clockwise rotate (rotate 70℃). There is a hole opened on the cover for adding resin, plasticizer and stabilizer. Also there is a hole for exhausting gas. Customers can arrange according to production. The force should not be too large while rotating the cover so as to avoid hitting the drum wall. The mixer cover is fixed with protection cover, otherwise if the cover is not closed, operators may be hurt by the agitating blade.

The discharging device is made by aluminum alloy. It is fixed with pneumatic discharging door to automatically discharge material. Cylinder and discharging door is well connected resulted in reliable compression and good sealing property.
