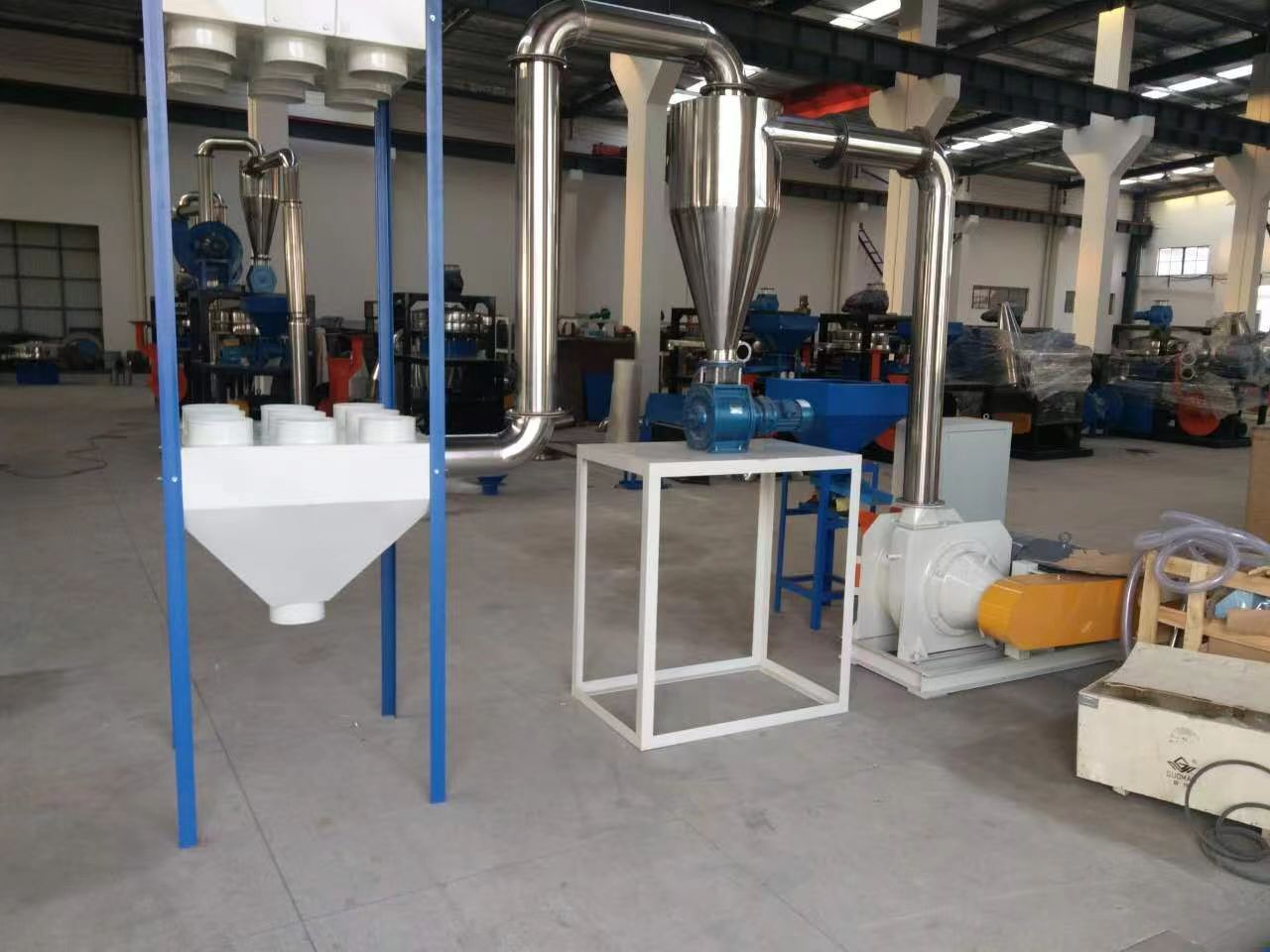

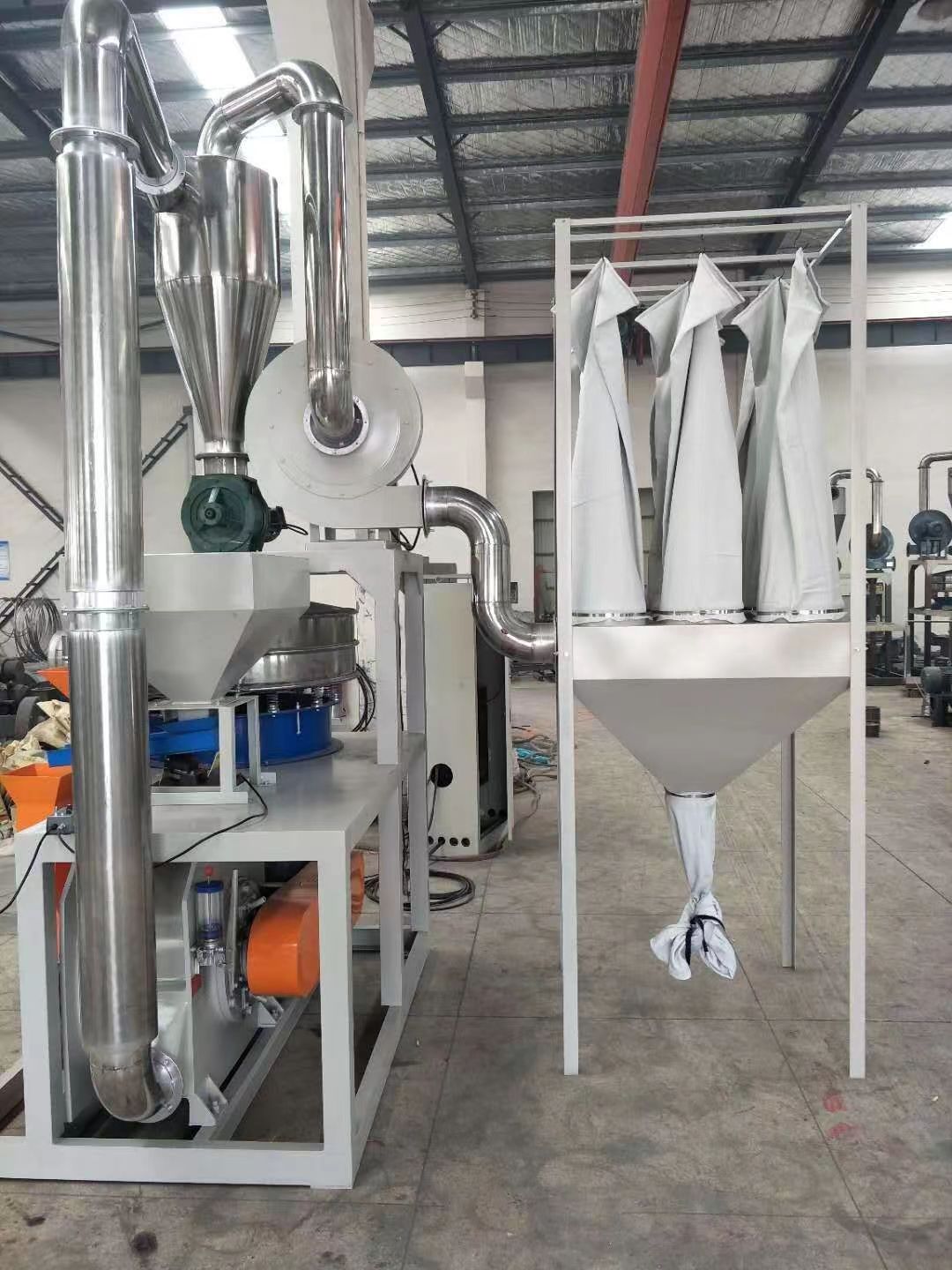

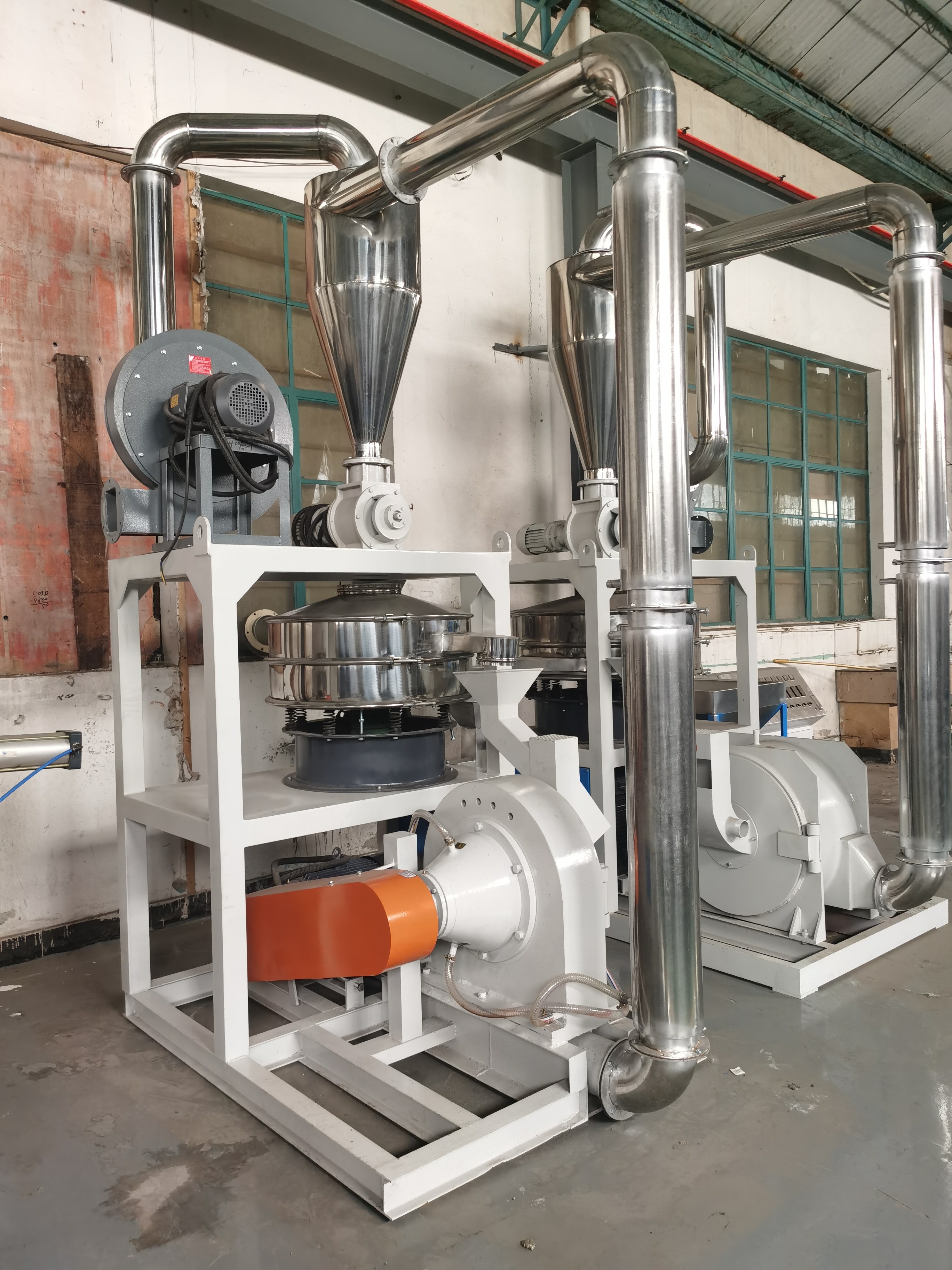

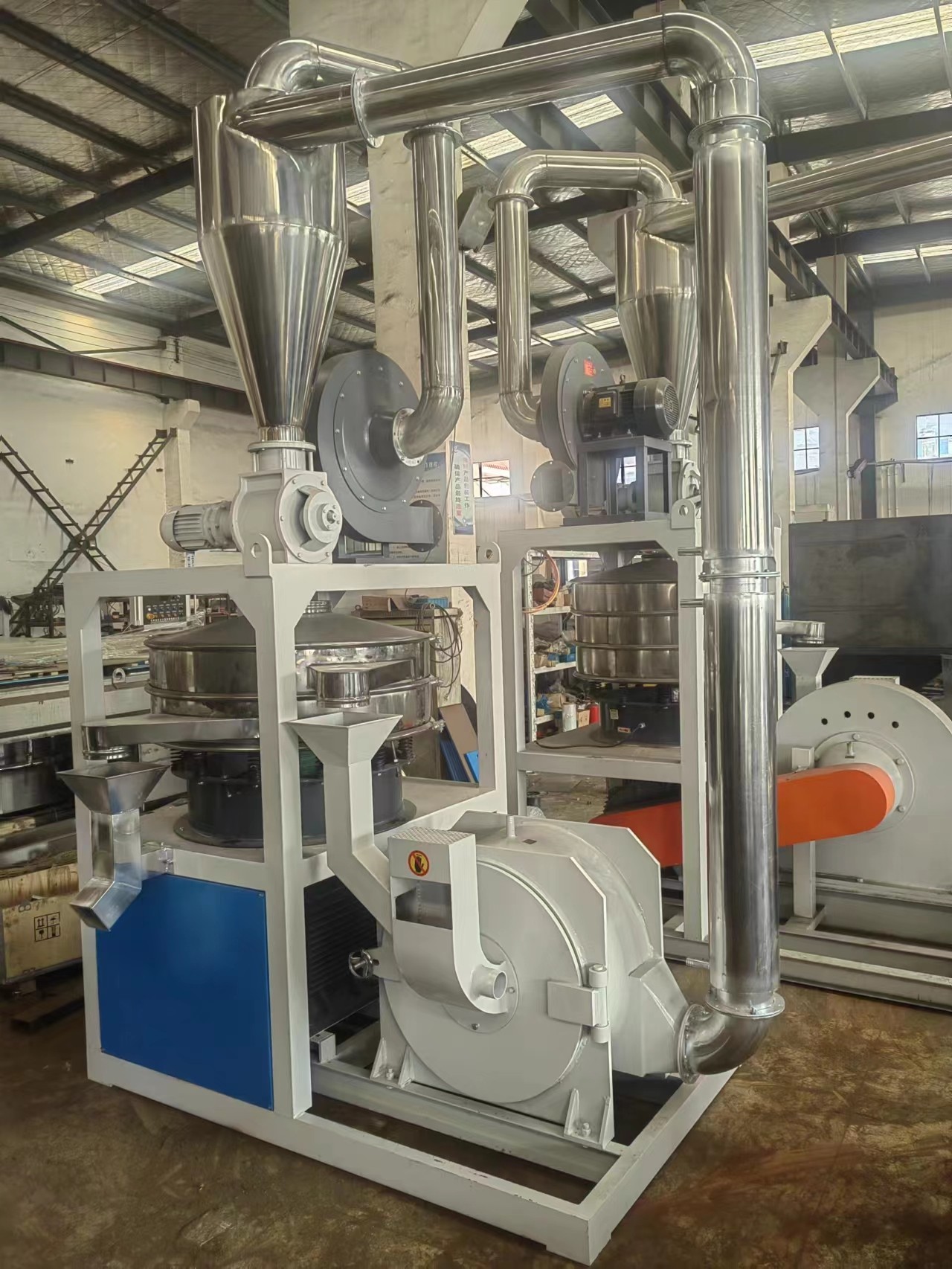

SMP Series Eddy Miller
Product Application
The SMP series high speed vortex grinder is widely used in many fields such as plastic, mining, chemistry, and metallurgy, etc. especially grinding recycled thermoplastic PVC and PE. If add 20% ~ 30% recycled powder, the chemical & physical property of final product can be same as 100% virgin. Therefore it is the best choice for plastic factory to save cost and recycle waste.
Product Features
●New model full-automatic structure; pipe and cyclone are made by stainless steel.
●new designed bearing is installed to prolong machine’s service life.
●new cutting knife structure can improve the capacity and knife’s wear-resistance
●Automatically charge, separate, discharge; high mesh scraps will be automatically re-grinded.
●Easy to install, maintain and clean;
●High capacity, low energy consumption, protect the environment from dust pollution.
●The powder fineness is among 10 ~ 120meshes and easy to adjust the fineness.
●The cooling system of this plastic grinder combines air cooling & water cooling.
Technical Parameters
Model | SMP-400 | SMP-500 | SMP-600 | SMP-800 |
Inner diameter of grinding chamber（mm） | Ф390 | ф500 | ф600 | Ф800 |
Rotating speed of main shaft（rpm） | 3700 | 3700 | 3500rpm | 3200 |
Power（kW） | 30 | 37 | 55 | 75 |
Capacity（kg/h） | 50-1500 | 150-280 | 200-550 | 450-850 |
Fineness（mesh） | 15-120 | 15-120 | 15-120 | 15-120 |
Machine size（mm） | 1250×1500×1530 | 5900×1450×2900 | 6200×1550×3100 | 6500×1650×3300 |
Weight（kg） | 1000 | 1200 | 1650 | 2800 |
