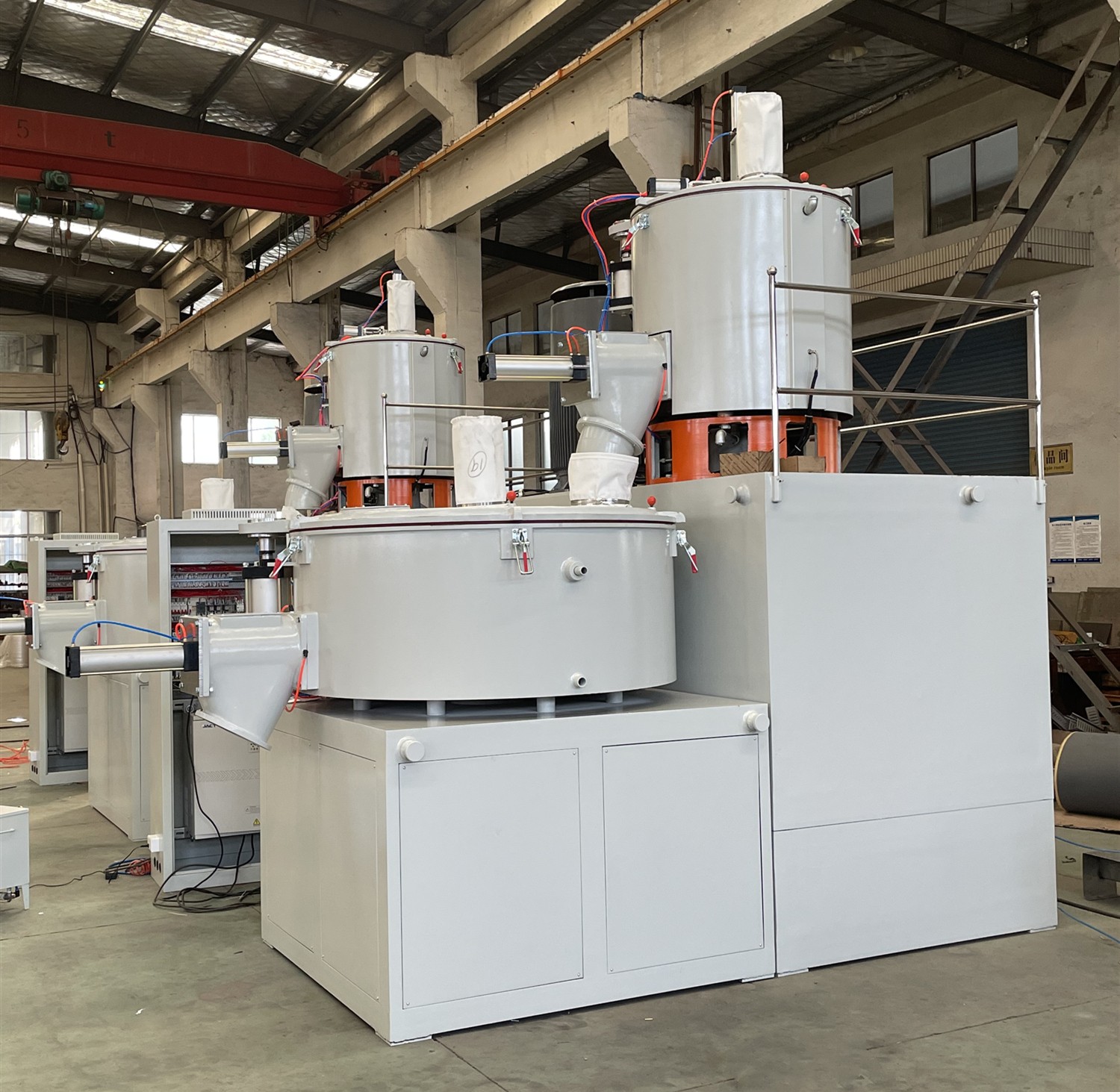

SRL-Z 500/1000L Mixer Unit
Product Application
SRL-Z series mixing unit is mainly used for batching, mixing, coloring and
drying resins such as PE, PP and PVC, etc. It also can be used for
drying and devolatilization of engineering plastics such as ABS, PC,
etc. before processing and mixing phenolic resin.
This unit
combines hot mixing and cold mixing. After hot mixing the material will be cooled down during cold mixing so as to exhaust residual gas and
avoid caking.
Product Features
This mixing unit is controlled by PLC. It is the ideal choice for plastic mixing because of high automation, good mixing effect, multiple functions, compact structure, and beautiful appearance, etc.
Technical Parameters
Model | SRL-Z100/200 | SRL-Z200/500 | SRL-Z300/600 | SRL-Z500/1000 | SRL-Z800/1600 |
Total Capacity(L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
Effective Capacity(L) | 75/160 | 150/320 | 225/390 | 375/650 | 600/1050 |
Rotation Speed(rpm) | 650/130/180 | 475/950/130 | 475/950/130 | 430/860/60 | 370/740/50 |
Heating and cooling method | Electrical heating/Water cooling | Electrical heating/Water cooling | Electrical heating/Water cooling | Electrical heating/Water cooling | Electrical heating/Water cooling |
Mixing time(min) | 6-10 | 6-10 | 6-10 | 6-10 | 8-12 |
Power(kw) | 14/22/7.5 | 30/42/11 | 40/50/11 | 55/75/18.5 | 60/90 |
Dimensions(mm) | 3780×1870×2250 | 4580×2240×2470 | 4580×2440×2570 | 4600×3000×4050 | 4850×3860×6550 |
Weight(kg) | 3200 | 3400 | 4200 | 5800 | 8700 |
