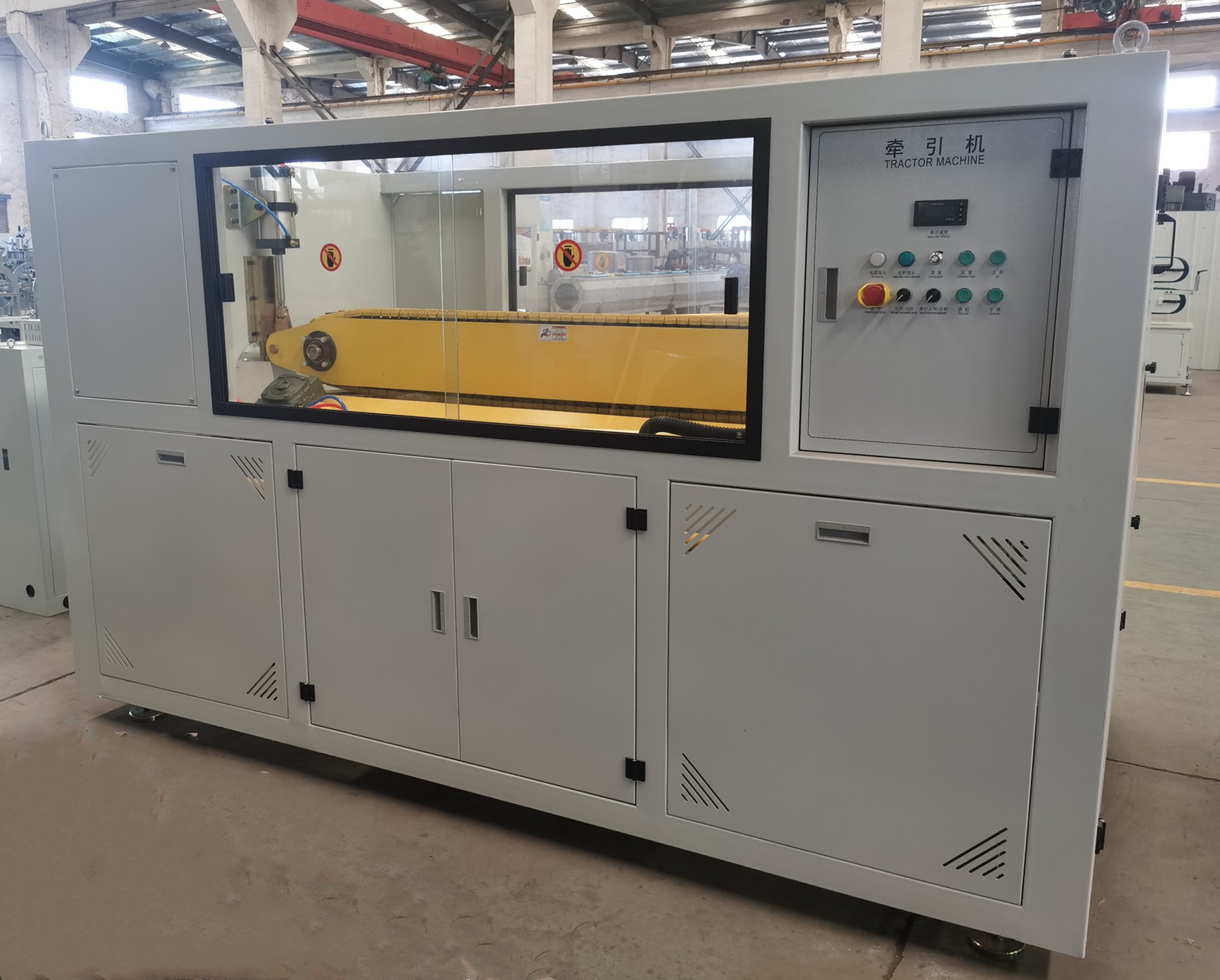

SZ Series Multi-jaw Haul-off Machine
Product Application
SZ series tractor is rubber block multi-caterpillar type for hauling large size plastic pipes. The pipes will not deform because of uniform compression. It uses pneumatic control so operation is easy.
Product Features
The multi-caterpillar hauling type is specially designed for large size pipes.
The speed regulation range is wide as stepless speed regulation is adopted.
Hauling speed is uniform.
Noise is low.
compact structure & beautiful appearance
coding length-counting device is selectable for precisely measuring.
Technical Parameters
Main Technical Standards Model | SZ3 | SZ4 | SZ6 | SZ8 |
Drawing speed: m/min | 0.5-5 | 0.34-3 | 0.2-2 | 0.1-0.8 |
Max. pulling force N | 20000 | 30000 | 48000 | 50000 |
Main motor power kW | 2.2 | 4 | 7.5 | 15 |
Total power | 4 | 5.5 | 7.5 | 15 |
Max.drawing height:mm | 1000-1100 | 1000-1100 | 1000-1200 | 1150-1300 |
Effective pulling length:mm | 1200 | 1300 | 1800 | 1800 |
Pulled pipe specification:mm | Ф50-Ф250 | Ф100-Ф300 | Ф200-Ф500 | Ф350-Ф750 |
Weight:kg | 2500 | 3000 | 4000 | 5000 |
Appearance size:mm | 2500×1300×2000 | 2870×1585×2250 | 3440×2000×2500 | 2940×2560×2900 |
Pictures
Video

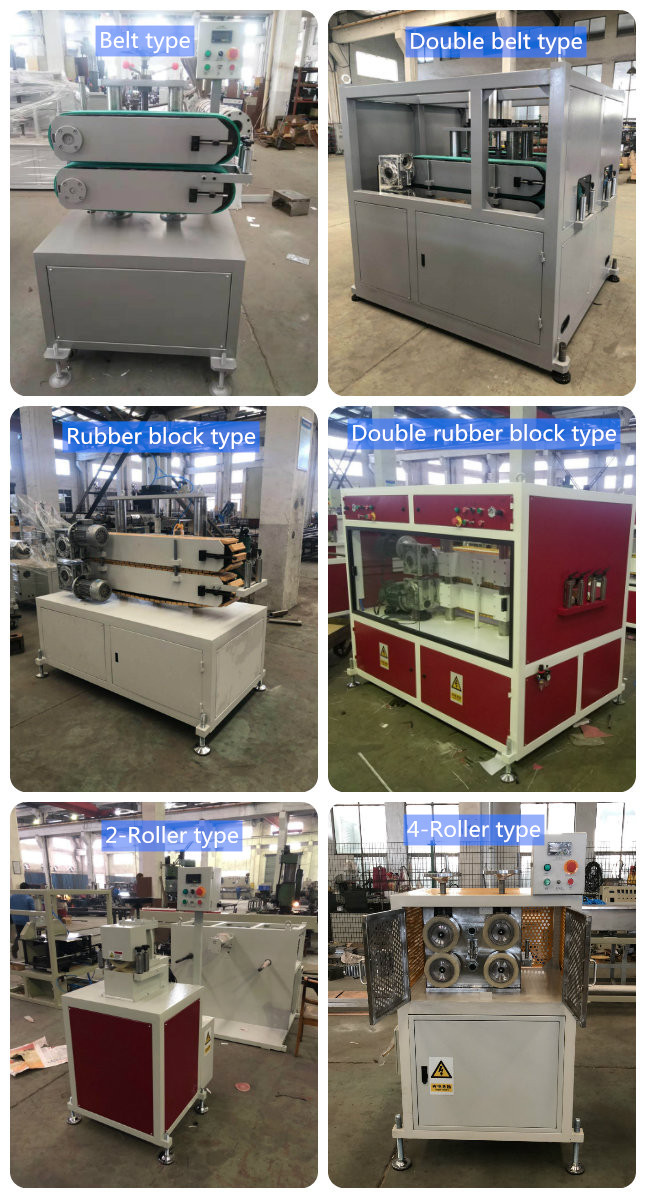

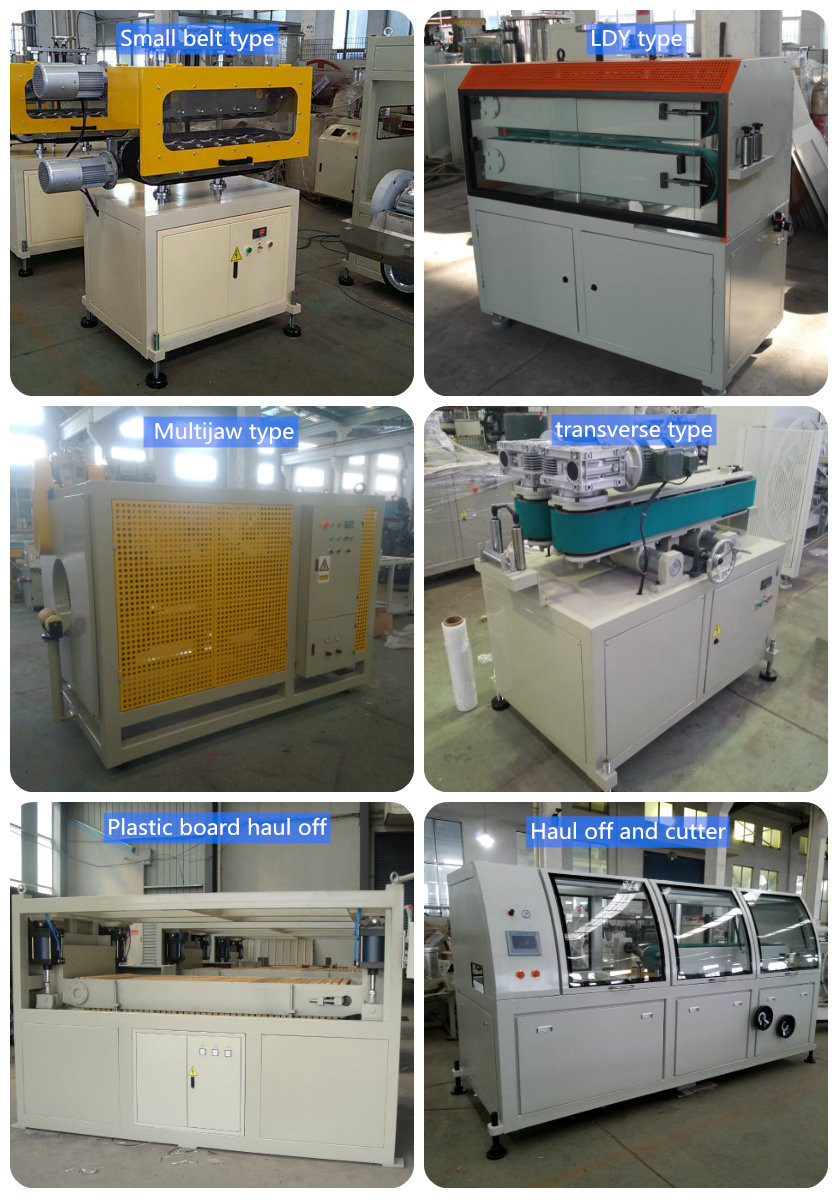

Different types of haul off
