ZJF Series Powder Feeder
Product Application
This machine can be used with different extruders to automatically transfer the plastic powder into hopper from storage tank. The charging procedure is controlled by level indicator to make it charge automatically. The features of this machine are as follows: stable performance, save labor cost and stable & reliable, etc.
Technical Parameters
Model | ZJF100 | ZJF300 | ZJF700 |
Registered transfer capacity(kg/h) | 100 | 300 | 700 |
Hopper volume(kg) | 100 | 120 | 150 |
Spring diameter(mm) | φ30 | φ36 | φ59 |
Max. transfer capacity(kg/h) | 200 | 450 | 1000 |
length transfer pipe and spring(m) | 3 | 3-5 | 3-5 |
Storage tank volume(kg) | 120 | 150 | 200 |
motor power(kw) | 1.1 | 1.1 | 2.75 |
Appearance size(mm) | φ650×980 | φ650×1162 | φ820×1550 |
850×620×740 | 905×655×840 | 950×950×960 | |
Weight(kg) | 120 | 150 | 250 |

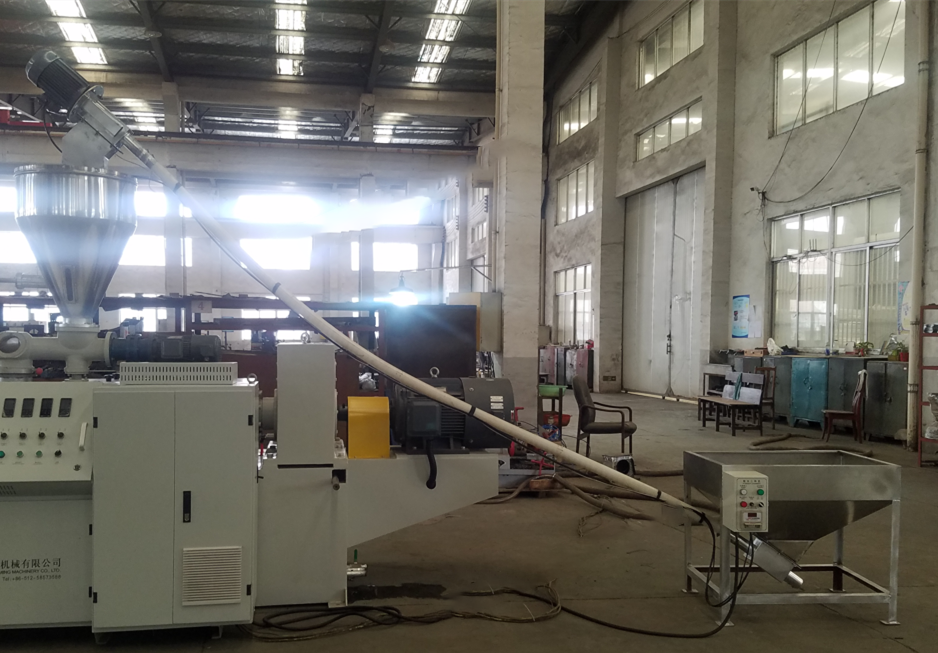

Pictures
