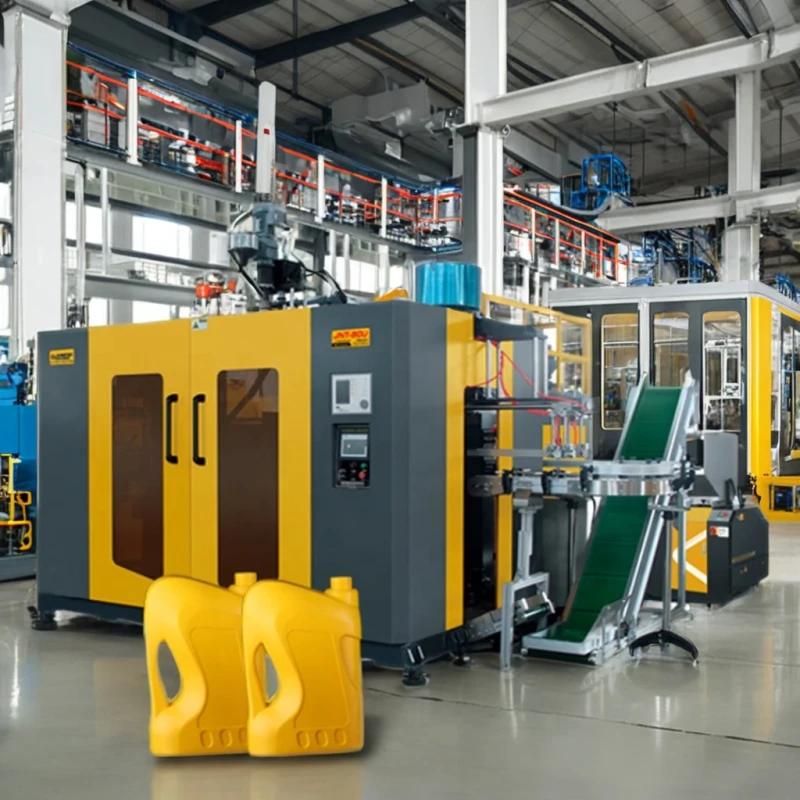

10 Liter HDPE LDPE PP New Condition Extrusion Blow Molding Machine
10 Liter HDPE LDPE PP New Condition Extrusion Blow Molding Machine
| plastic processed | PP, HDPE, PE | Clamping Force (kN) | 110 |
| voltage | design as you need | automation | Automatic |
| No. of Screw Heating Zone | 4 | plc brand | Siemens |
| core components | Motor, Pump, Gear | key selling points | High-Accuracy |
| machinery test report | Provided | video outgoing-inspection | Provided |
| output (kg/h) | 240 kg/h | power (kw) | 30 |
| weight (t) | 7.8 | dimension(l*w*h) | 3.3*3.3*2.6 |
| Screw L/D Ratio | 25 | screw diameter (mm) | 80 mm |
| screw heating power(kw) | 5.5 kW | extruder motor power(kw) | 120 kW |
| mold platen size(width)(mm) | 500 mm | mold platen size(height)(mm) | 510 mm |
| air pressure(mpa) | 0.8 MPa | air comsumption(m³/min) | 0.6 m³/min |
| die head heating power(kw) | 5.5 kW | Blow Moulding Type | Extrusion Blow Moulding |
| Station | 1or 2 | Language settings | Custom Language |
| Parison Control | MOOG | Thermal Relay | FRANCE SCHNEIDER |
| Air Switch | FRANCE SCHNEIDER | Frequency Converter | INOVANCE |
| Blowing Value | TAIWAN AIRTAC | Oil Seal | UK Sealtech |
