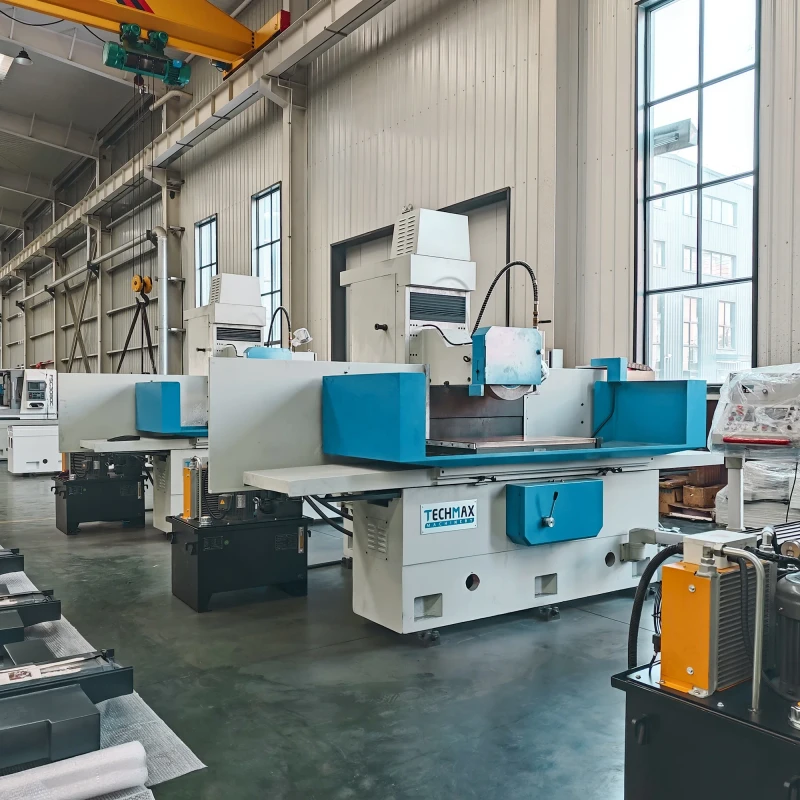

CNC Surface Grinder Machine with PLC Engine Gear Components for High Accuracy Precision Grinding
CNC Surface Grinder Machine with PLC Engine Gear Components for High Accuracy Precision Grinding
| voltage | As per the client's request | cnc or not | CNC |
| machinery test report | Provided | core components | Gear, Engine, Pressure Vessel, Pump, PLC, Bearing |
| key selling points | High-Accuracy | video outgoing-inspection | Provided |
| grinding length(mm) | 1600 | table travel (x) (mm) | 1700 |
| table travel (y) (mm) | 560 | wheel size(mm) | 350 |
| table size(mm) | 500x1600 | weight (kg) | 6000 |
| power (kw) | 7.5 | surface roughness(μm) | 2 |
| dimension(l*w*h) | 564x225x250 | T-slot quantity / width | 3/18 mm |
| Permanent magnet clamping plate | 500x1600 mm | Max. distance spindle / table | 600 mm |
| Max. workpiece weight | 900 kg | Table speed, hydraulic | 5-25 m/min |
| Spindle speed | 1450 rpm | Automatic adjustment, vertical | 0.005-0.04 mm/stroke |
| Rapid feed, vertical | 0-300 mm/min | Automatic adjustment, cross | 0.5-30 mm/stroke |
| Rapid feed, cross | 0-600 mm/min |
