Professional Manufacturer of Plastic Processing Machinery

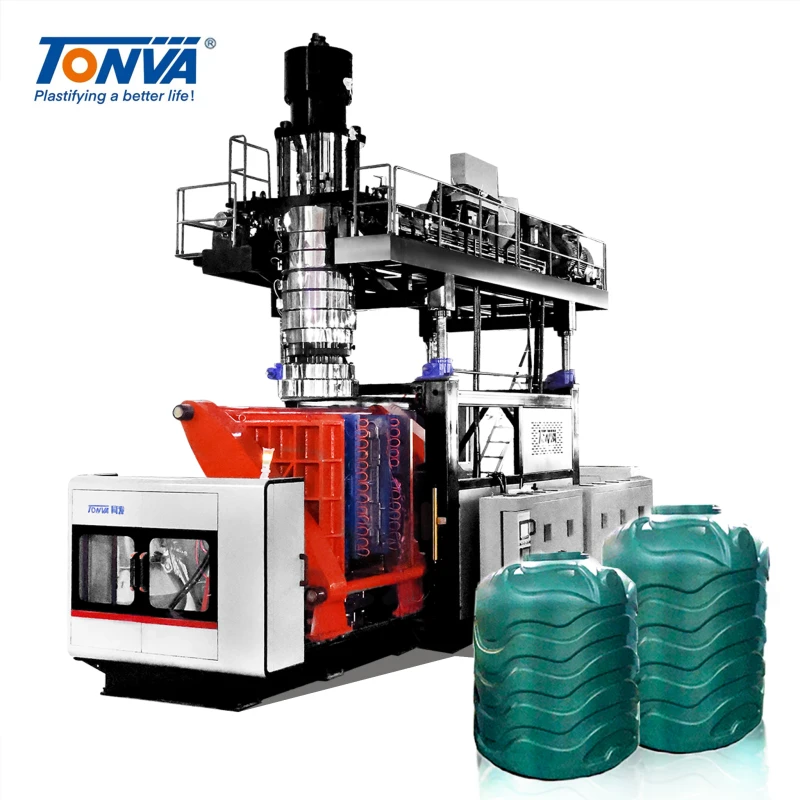

Plastic 500L Water Tank Barrel Blow Molding Making Machine
Plastic 500L Water Tank Barrel Blow Molding Making Machine
| plastic processed | HDPE | Clamping Force (kN) | 1600 |
| voltage | Customization | automation | Automatic |
| core components | PLC, Engine, Bearing, Gearbox, Pressure Vessel, Gear, Pump | key selling points | Easy To Operate |
| machinery test report | Provided | video outgoing-inspection | Provided |
| output (kg/h) | 450 kg/h | power (kw) | 230 |
| weight (t) | 38 | dimension(l*w*h) | 9.0mX3.8mX6.5m |
| screw diameter (mm) | 150 mm | screw heating power(kw) | 23 kW |
| extruder motor power(kw) | 55 kW | mold platen size(width)(mm) | 1500 mm |
| mold platen size(height)(mm) | 1800 mm | air pressure(mpa) | 0.6 MPa |
| air comsumption(m³/min) | 5 m³/min | die head heating power(kw) | 40 kW |
| After Sales | Overseas Service Engineers | Blow Moulding Type | Accumlator Blow Molding |
| Keywords | Water Tank Blow Molding Machine | Product Name | Automatic Blowing Molding Machine |
