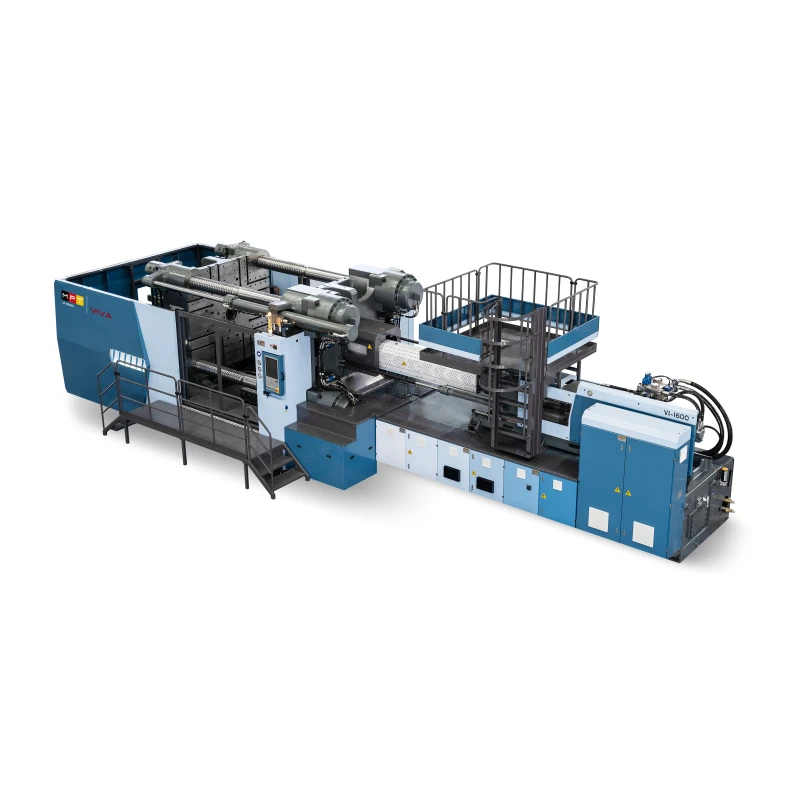

3000 Ton Plastic Injection Molding Machine Household Chair Making Container Single Face Pallet Injection Moulding Machine
3000 Ton Plastic Injection Molding Machine Household Chair Making Container Single Face Pallet Injection Moulding Machine
| machine type | Hydraulic | distance between tie bars | 2020 x 1800 |
| plastic processed | PP, Polystyrene, PE, PE/PP | style | Horizontal |
| key selling points | High-Accuracy | core components | Bearing, Motor, Pump |
| machinery test report | Provided | video outgoing-inspection | Provided |
| injection weight (g) | 33146 g | injection rate (g/s) | 2323 g/s |
| weight (kg) | 160000 kg | power (kw) | 317.5 kW |
| mold height(mm) | 800 - 1900 mm | ejector stroke(mm) | 500 mm |
| ejector force(kn) | 450 kN | theoretical shot volume(cm³) | 36424 cm³ |
| screw speed (rpm) | 0 - 55 rpm | screw diameter (mm) | 200 mm |
| Screw L/D Ratio | 23 | open stroke(mm) | 2200 mm |
| Application | Making Plastic Product | Keyword | Europe design |
| Machine Color | Grey and white | Clamping Force (kN) | 30000KN |
| Max. Daylight | 4100mm | Hopper capacity | 400L |
| Injection Pressure | 146Mpa |
