Professional Manufacturer of Plastic Processing Machinery

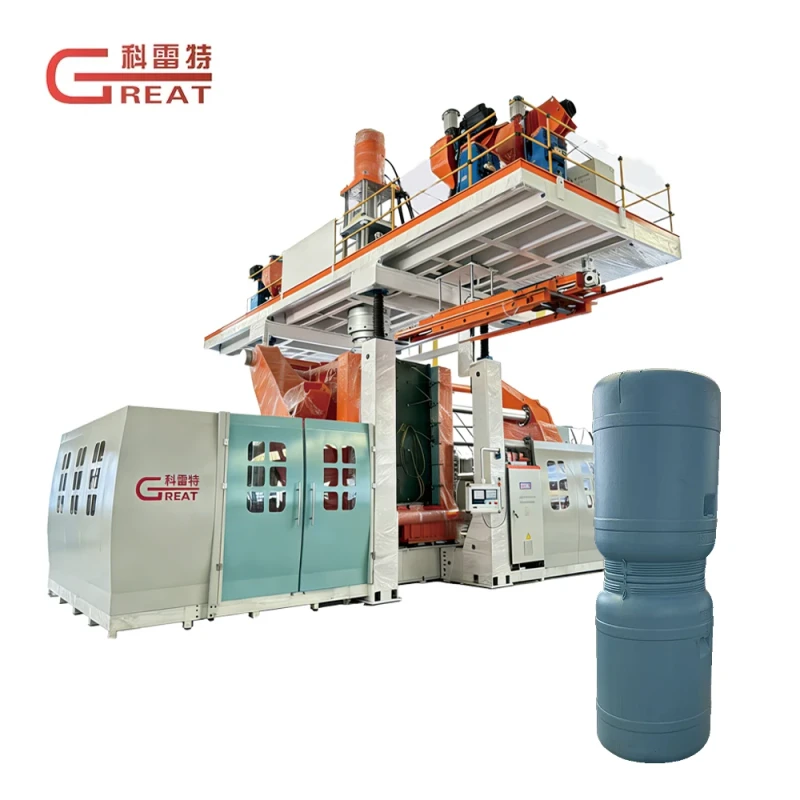

High Efficiency One Mold Two Cavities HDPE Plastic Blow Moulding Machine Production Line for Chemical Barrel and Water Tank
High Efficiency One Mold Two Cavities HDPE Plastic Blow Moulding Machine Production Line for Chemical Barrel and Water Tank
| plastic processed | HDPE, ABS | Clamping Force (kN) | 900 |
| voltage | 380 V | automation | Automatic |
| No. of Screw Heating Zone | 5 | plc brand | Siemens |
| core components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | machinery test report | Provided |
| video outgoing-inspection | Provided | output (kg/h) | 400 |
| power (kw) | 325 | weight (t) | 42 |
| dimension(l*w*h) | 9*4.5*5.2 | Screw L/D Ratio | 32 |
| screw diameter (mm) | 90 | screw heating power(kw) | 90 |
| extruder motor power(kw) | 45 | mold platen size(width)(mm) | 1600 |
| mold platen size(height)(mm) | 1500 | air pressure(mpa) | 0.8 |
| air comsumption(m³/min) | 4 | die head heating power(kw) | 70 |
| Certification | ISO9001, CE | Blow Moulding Type | Blow Molding Machine |
| Key words | water tank making machine | Product Type | Blow Moulding Machine |
| Product name | automatic blow molding machine | Type | Plastic Blow Molding Machine |
| Material | hdpe blow molding machine | Name | One Mold Two Cavities |
| Blow Molding Type | plastic blowing machine | Keywords | plastic manufacturing machine |
