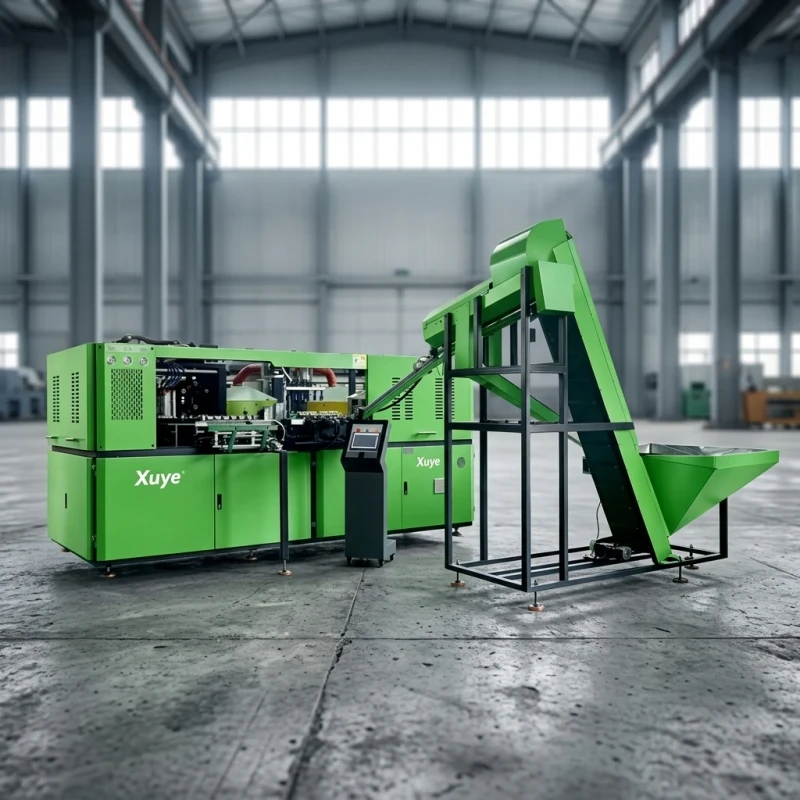

High-Efficiency Automatic PLC-Controlled PET Stretch Blow Molding Machine SMC Components High Productivity
High-Efficiency Automatic PLC-Controlled PET Stretch Blow Molding Machine SMC Components High Productivity
| Machine Type | Stretch Blow Moulding | plastic processed | PET |
| automation | Automatic | voltage | 380 V |
| power (kw) | <36 | PLC Brand | XIEJE |
| Rotary Cylinder Brand | SMC | High Pressure Valve Brand | SMC |
| machinery test report | Provided | video outgoing-inspection | Provided |
| core components | PLC | key selling points | High Productivity, Easy To Operate |
| neck diameter(mm) | 30 | max.bottle diameter(mm) | 72 |
| clamping force (kn) | 1000 | weight (kg) | 6200 |
| max.bottle height(mm) | 260 | dimension(l*w*h) | 4.3X1.9X1.9 |
| Cavity Number | 6 Pcs | Heating Pitch | 76.2 mm |
| Number of Heating Zones | 4 sets | Number of Lamps | 28 Pcs |
| Number of Bottle Grippers | 108 Pcs | Blow Molding | 7 times |
| Air Consumption for Movement | 2.5 m³/min | Movement Pressure | 0.8-0.85 Mpa |
| Chiller Specification | 10 HP | Installed Power | 120 kw |
