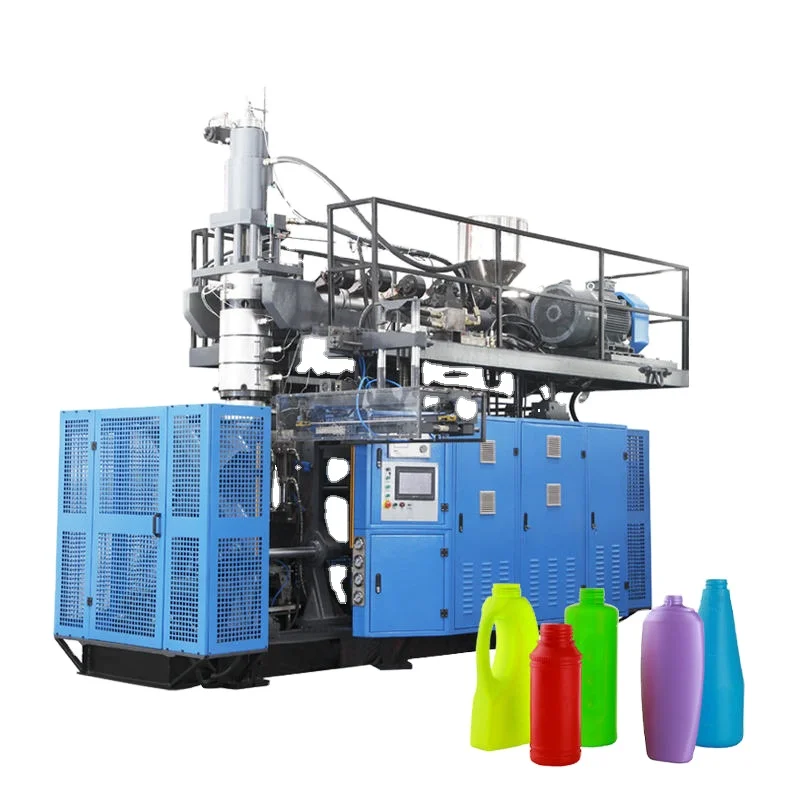

1200mm Flim Width Extrusion Blow Moulding Film Blowing 10 Liter 55 Gallon HDPE Blue Barrel Moulding Making Machine
1200mm Flim Width Extrusion Blow Moulding Film Blowing 10 Liter 55 Gallon HDPE Blue Barrel Moulding Making Machine
| plastic processed | PE | Clamping Force (kN) | 65 |
| voltage | 380V/50HZ | automation | Automatic |
| plc brand | Siemens | core components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| key selling points | Long Service Life | machinery test report | Provided |
| video outgoing-inspection | Provided | output (kg/h) | 110 kg/h |
| power (kw) | 50 | weight (t) | 11 |
| dimension(l*w*h) | 3.9*2.0*2.6 | Screw L/D Ratio | 28 |
| screw diameter (mm) | 80 mm | screw heating power(kw) | 8 kW |
| extruder motor power(kw) | 30 kW | mold platen size(width)(mm) | 550 mm |
| mold platen size(height)(mm) | 650 mm | air pressure(mpa) | 0.8 MPa |
| air comsumption(m³/min) | 0.8 m³/min | die head heating power(kw) | 5 kW |
| Keywords | 200 litre plastic drum stretch blow molding machine price | Color | Blue/yellow/white/orange |
| Material application | PP/PE/LDPE/HDPE/LLDPE/ABS | MAX.Product Volume | 50L |
| Station | single | Output of HDPE | 130~160kg/h |
| Air consumption | 1.0M3/Min | Blowing pressure | 0.8Mpa |
| Cooling water pressure | 0.3Mpa | Water consumption | 85L/Min |
