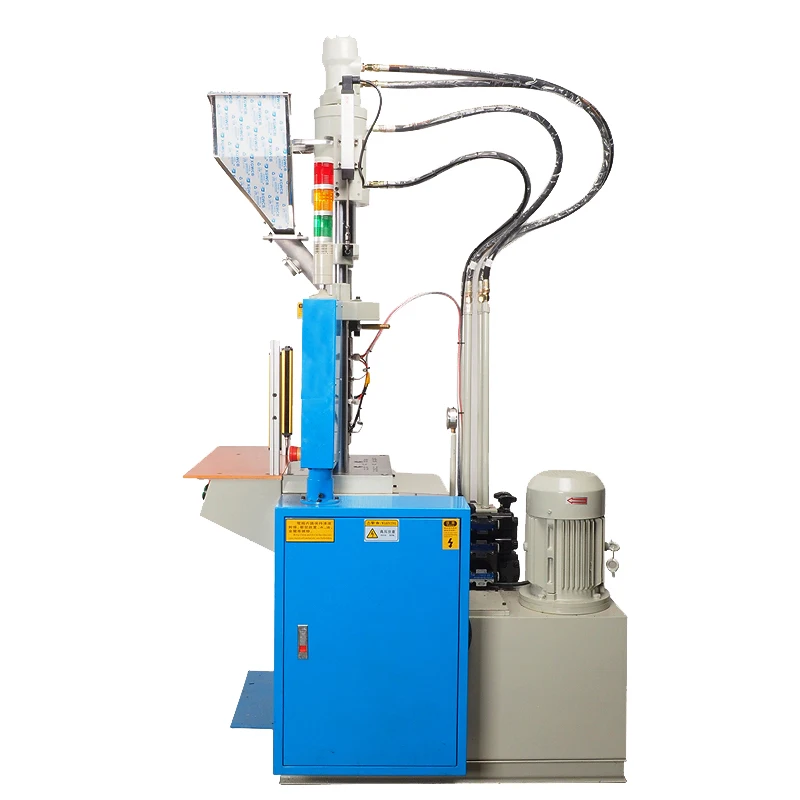

15Tons Vertical Plastic Hand Injection Moulding Machine
15Tons Vertical Plastic Hand Injection Moulding Machine
| machine type | Hydraulic | distance between tie bars | 270x270 mm |
| plastic processed | PVC, PC, PP | style | VERTICAL |
| key selling points | Competitive Price | ejector number | 1 |
| core components | PLC, Motor | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 58 |
| injection weight (g) | 58 | injection rate (g/s) | 44 |
| weight (kg) | 600 | power (kw) | 5.5 |
| mold height(mm) | 225 - 260 | ejector stroke(mm) | 25 |
| ejector force(kn) | 12.7 | theoretical shot volume(cm³) | 58 |
| screw speed (rpm) | 1 - 170 | screw diameter (mm) | 26 |
| Screw L/D Ratio | 22 | open stroke(mm) | 185 |
| Opening Stroke | 190mm | Injection Rate | 105mm |
| After-sales Service Provided | Overseas service center available | Plastic Type | Thermoplastic |
| Certification | CE | Power | 2200 |
| Injection Weight | 50g | Automatic | YES |
| Screw Diameter | 26-28mm | Min. Mold Thickness | 100/25mm |
