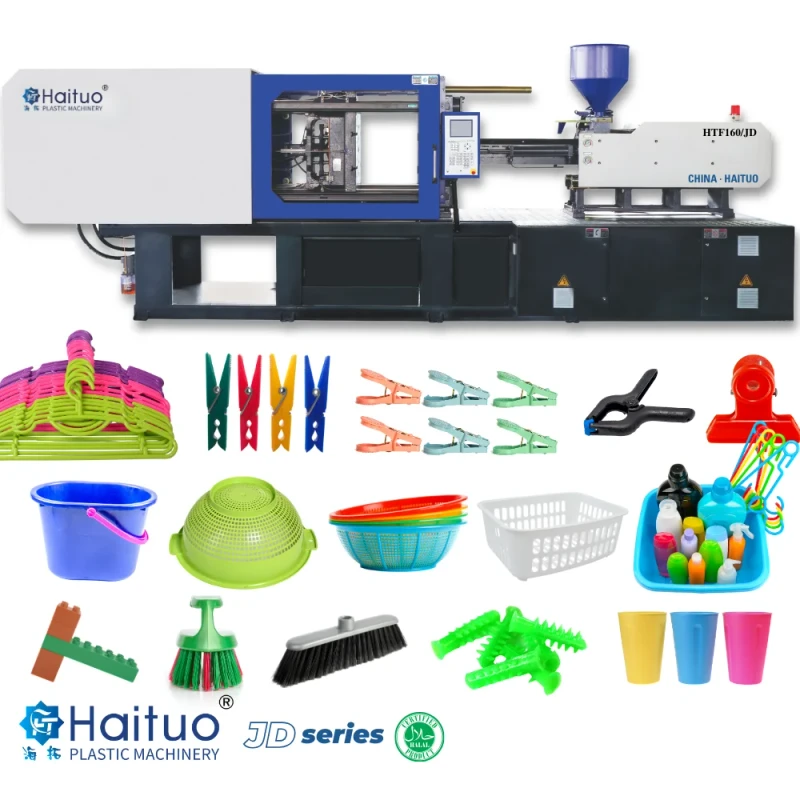

160 Ton Servo Plastic Injection Molding Machine for Household Goods Hangers Baskets and Plastic Clips Production
160 Ton Servo Plastic Injection Molding Machine for Household Goods Hangers Baskets and Plastic Clips Production
| machine type | Hydraulic | distance between tie bars | 480x480 mm |
| plastic processed | PP, PC, ABS | style | Horizontal |
| key selling points | Energy Saving | ejector number | 5 |
| core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw, Other | machinery test report | Provided |
| video outgoing-inspection | Provided | Raw Material | Polypropylene (PP), Polyamide (Pa) |
| plasticizing capacity(g/s) | 30 | injection weight (g) | 316 |
| injection rate (g/s) | 316 | weight (kg) | 4700 |
| power (kw) | 10.8 | mold height(mm) | 150 - 500 |
| ejector stroke(mm) | 130 | ejector force(kn) | 46 |
| theoretical shot volume(cm³) | 320 | screw speed (rpm) | 0 - 180 rpm |
| screw diameter (mm) | 45 | Screw L/D Ratio | 20 |
| open stroke(mm) | 440 |
