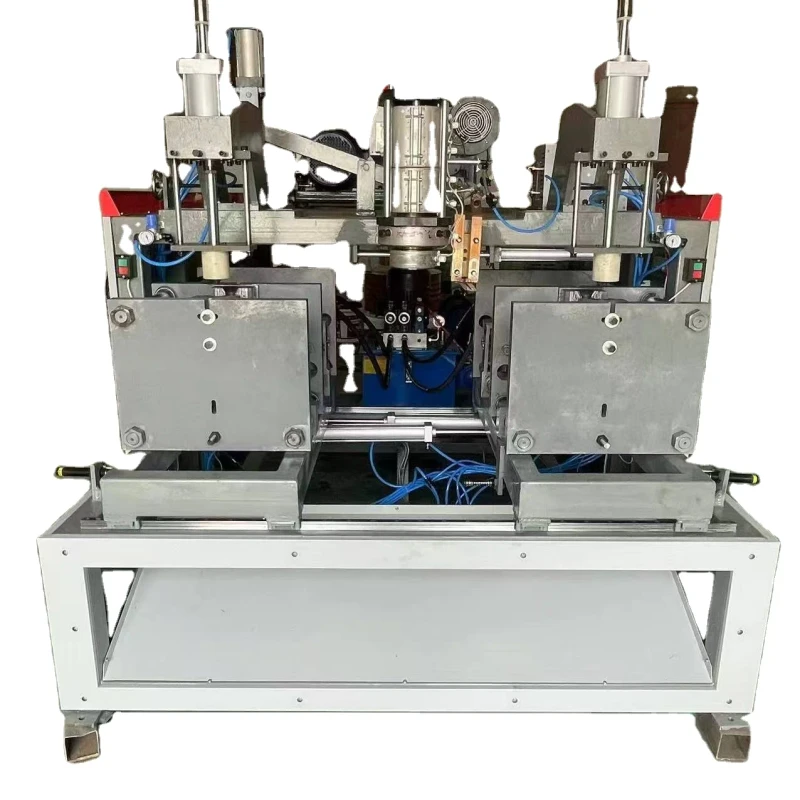

1L-5L Bottle Mold Blow Molding Extrusion Blow Moulding Machine
1L-5L Bottle Mold Blow Molding Extrusion Blow Moulding Machine
| plastic processed | Other | Clamping Force (kN) | 220 |
| voltage | 220V/380V | automation | Automatic |
| No. of Screw Heating Zone | 7 | core components | PLC |
| key selling points | Easy To Operate | machinery test report | Provided |
| video outgoing-inspection | Provided | output (kg/h) | 200 |
| power (kw) | 12 | weight (t) | 2.3 |
| dimension(l*w*h) | 2000*1200*2000 | Screw L/D Ratio | 25 |
| screw diameter (mm) | 65 | screw heating power(kw) | 8.1 |
| extruder motor power(kw) | 20 | mold platen size(width)(mm) | 1000 |
| mold platen size(height)(mm) | 1500 | air pressure(mpa) | 20 |
| air comsumption(m³/min) | 10 | die head heating power(kw) | 1000 |
| After-sales Service Provided | Overseas service center available | Blow Moulding Type | Extrusion Blow Moulding |
| Automatic | yes | Name | automatic blow molding bottle machine |
| Advantages | Easy Operation | Suitable bottle | plastic bottles |
| Machine type | Auto | Use | Making Bottle |
| Marketing Type | Ordinary Product |
