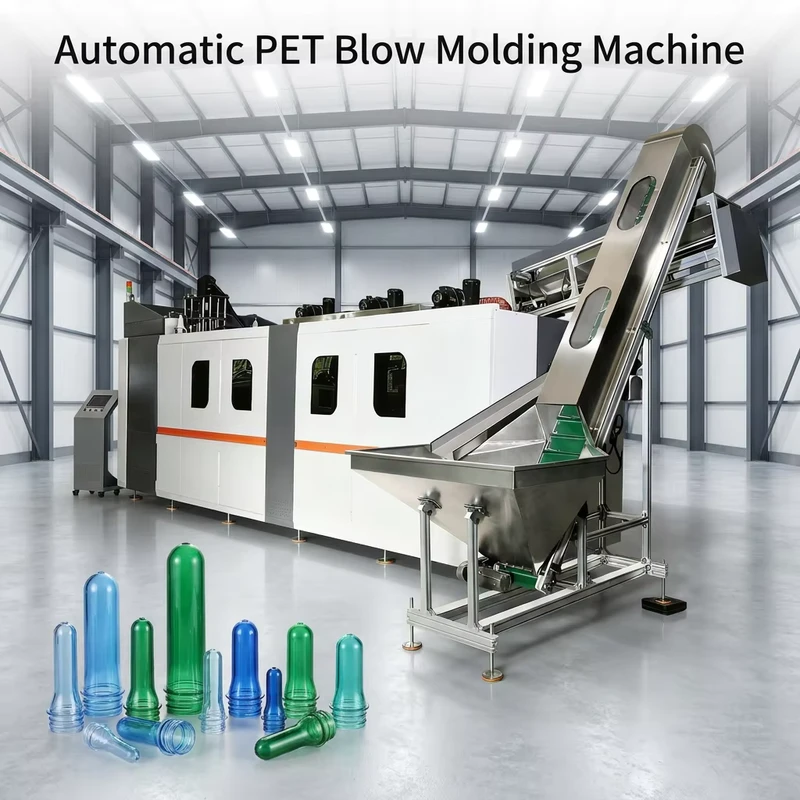

2 Cavity Fully Automatic PET Blow Molding Machine Durable Plastic Bottle Making Machine for Mineral Water Plant
2 Cavity Fully Automatic PET Blow Molding Machine Durable Plastic Bottle Making Machine for Mineral Water Plant
| Machine Type | Injection Stretch Blow Molding | plastic processed | PP, PET |
| automation | Automatic | voltage | 380 V |
| power (kw) | 35-45 | PLC Brand | Schneider |
| Rotary Cylinder Brand | Delixi | High Pressure Valve Brand | SMC |
| machinery test report | Provided | video outgoing-inspection | Provided |
| core components | Bearing, motor, Pump, Gear, PLC, Pressure vessel, | neck diameter(mm) | 38 |
| max.bottle diameter(mm) | 70 | clamping force (kn) | 3000 |
| weight (kg) | 7000 | max.bottle height(mm) | 240 |
| dimension(l*w*h) | 7756X3255X3342 | Number of HeatingTube Layers | 6 |
| Number of Preform Holders | 162 | Frequency | 50 |
| CoolingWater | WaterTemperature 18°C | Maximum Bottle Volume | 600 |
| Maximum Bottle Neck | 38 | Maximum Preform Height | 115 |
| HeatingUnit | 6 | Main Machine(LxWXH) | 5812X1810X2874 |
| Complete Machine(LxWXH) | 7756X3255X3342 |
