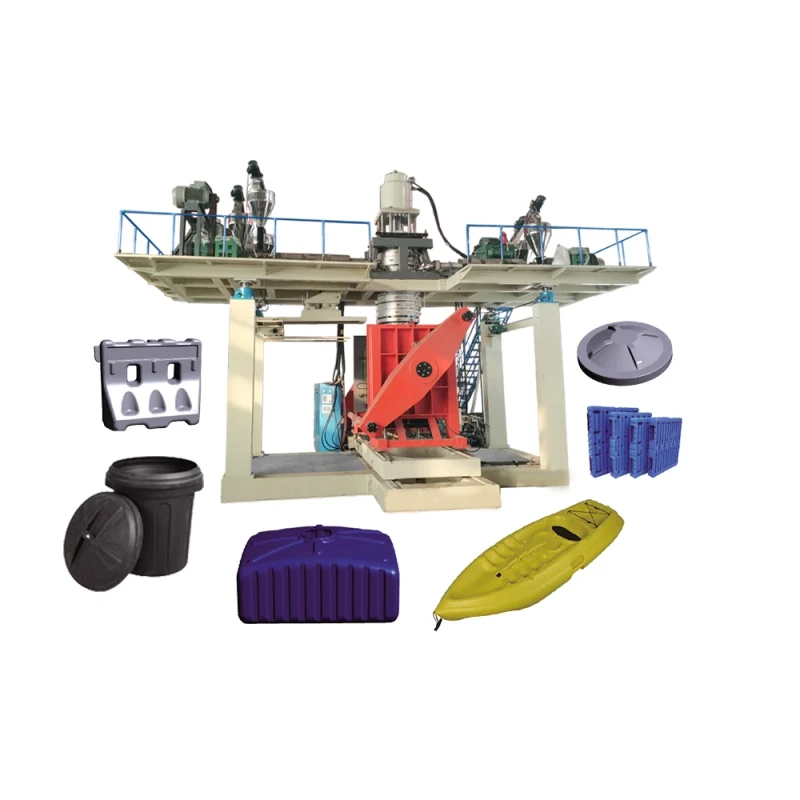

20-10000L 1-6 Layers Plastic Extrusion Blow Molding Machine for Float Boat
20-10000L 1-6 Layers Plastic Extrusion Blow Molding Machine for Float Boat
| plastic processed | HDPE, HDPE PE | Clamping Force (kN) | 1800 |
| voltage | 380v-415v | automation | Automatic |
| plc brand | Siemens | core components | PLC, Bearing, Gearbox, Motor |
| key selling points | Multilayer | machinery test report | Provided |
| video outgoing-inspection | Provided | output (kg/h) | 500 kg/h |
| power (kw) | 500 | weight (t) | 70 |
| dimension(l*w*h) | customized | Screw L/D Ratio | 30 |
| screw diameter (mm) | 120 mm | screw heating power(kw) | 80 kW |
| extruder motor power(kw) | 270 kW | mold platen size(width)(mm) | 1900 mm |
| mold platen size(height)(mm) | 2100 mm | air pressure(mpa) | 0.65 MPa |
| air comsumption(m³/min) | 2 m³/min | die head heating power(kw) | 100 kW |
| Layers | 1-6 |
