Professional Manufacturer of Plastic Processing Machinery

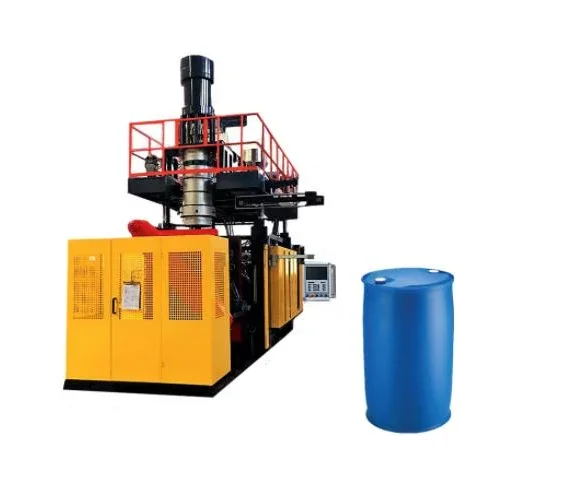

200 Liter Plastic Drum Large Barrel Bottle Making Moulding Production Line Double Extrusion Blow Molding Machine
200 Liter Plastic Drum Large Barrel Bottle Making Moulding Production Line Double Extrusion Blow Molding Machine
| plastic processed | PP, HDPE, Polystyrene, PE/PP, HDPE/PP | Clamping Force (kN) | 1000 |
| voltage | 380 | automation | Automatic |
| No. of Screw Heating Zone | 6 | plc brand | Mitsubishi |
| core components | PLC, Gearbox, Motor, Gear, Pump | key selling points | Long Service Life |
| machinery test report | Provided | video outgoing-inspection | Provided |
| output (kg/h) | 350 kg/h | power (kw) | 37 |
| weight (t) | 36 | Screw L/D Ratio | 33 |
| screw diameter (mm) | 120 mm | screw heating power(kw) | 36 kW |
| extruder motor power(kw) | 52 kW | mold platen size(width)(mm) | 800 mm |
| mold platen size(height)(mm) | 1000 mm | air pressure(mpa) | 0.8 MPa |
| air comsumption(m³/min) | 1.0 m³/min | die head heating power(kw) | 32 kW |
| Small Orders | Accepted | Weight per Unit | 20 Tons (UK) |
| Export Carton Dimensions L/W/H | 5.8 * 3.2 * 4.8 Meters | Lead Time | 60 - 70 days |
| Units per Export Carton | 1 | Export Carton Weight | 20 Tons (UK) |
| Marketing Type | New Product 2020 |
