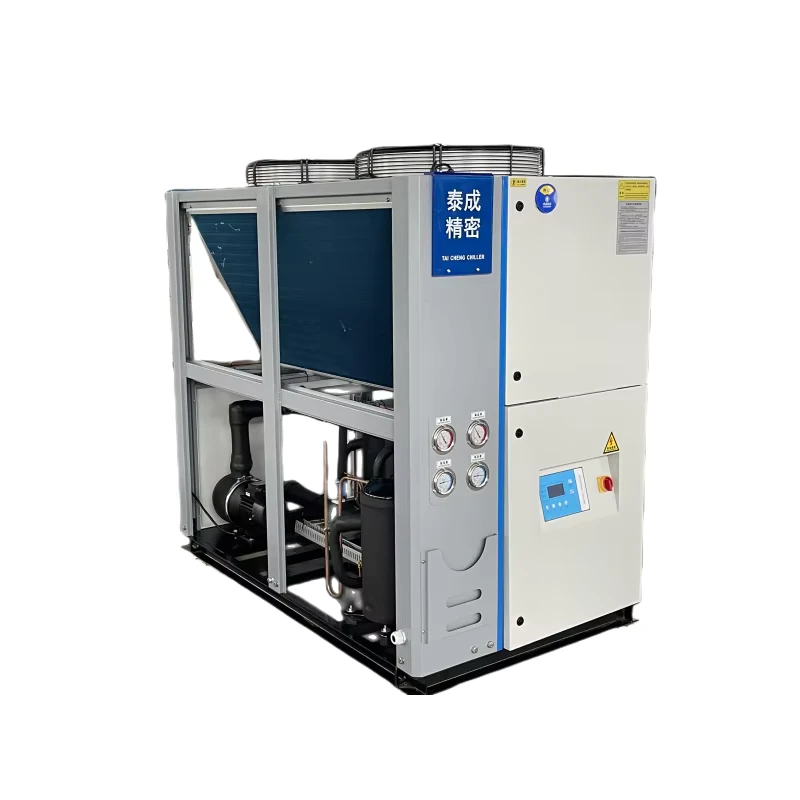

20HP 10 Ton 5C Air Cooled Water Cooling Beer Brewery Glycol Chiller

20HP 10 Ton 5C Air Cooled Water Cooling Beer Brewery Glycol Chiller
  • 20HP 10 Ton 5C Air Cooled Water Cooling Beer Brewery Glycol Chiller

    • 20HP 10 Ton 5C Air Cooled Water Cooling Beer Brewery Glycol Chiller

    Request a Quote
    voltage3PH-380V-50Hz or according to customer needpower20KW
    machinery test reportProvidedvideo outgoing-inspectionProvided
    key selling pointsCompetitive Pricecore componentsPLC, Engine, Motor, Pressure Vessel, Pump, Compressor, Fan, Evaporator, Condenser
    Weight (KG)1000dimension(l*w*h)2050*990*1740 mm
    working temperature range+7-+35 degree CProduct name20HP 10 Ton -5C Air Cooled Water Cooling Beer Brewery Glycol Chiller
    Cooling capacity20HP 10 ton glycol chiller for breweryApplicationIndustry process cooling, plastic injection, extrusion chiller
    Compressor power7.96 Kw*2Compressor BrandHermetic Scroll Compressor
    CondenserAir cooling aluminum foll finnedHeat exchangerShell and tube
    Water flow7.2 m3/h at -5 deg C outletRefrigerantR22 / R407c / R134a / R507
    Remote controlWIFI Connection
