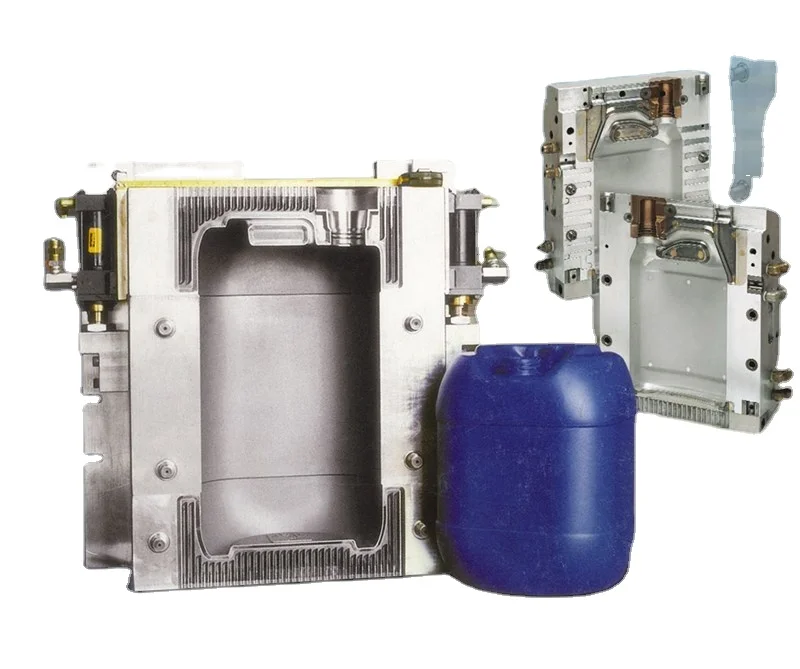

20L 30L Jerrycan Extrusion Blow Molding Machine
20L 30L Jerrycan Extrusion Blow Molding Machine
| plastic processed | HDPE, PE, HDPE/PP | Clamping Force (kN) | 120 |
| voltage | CUSTOMIZED | automation | Automatic |
| No. of Screw Heating Zone | 4 | plc brand | Siemens |
| core components | PLC, Engine, Gearbox, Motor, Gear, Pump | key selling points | Multi Color,Energy Saving,cheap price |
| machinery test report | Provided | video outgoing-inspection | Provided |
| output (kg/h) | 120 kg/h | power (kw) | 100 |
| weight (t) | 15 | dimension(l*w*h) | 5mX4mX3.0m |
| Screw L/D Ratio | 25 | screw diameter (mm) | 90 mm |
| screw heating power(kw) | 18 kW | extruder motor power(kw) | 37 kW |
| mold platen size(width)(mm) | 500 mm | mold platen size(height)(mm) | 700 mm |
| air pressure(mpa) | 0.8 MPa | air comsumption(m³/min) | 1 m³/min |
| die head heating power(kw) | 20 kW | Blow Moulding Type | Extrusion Blow Molding Machine |
| After-sales Service Provided | Engineers | Material | HDPE PP |
| Certification | CE IS09001 | Max. Product Volume | 30L |
| Advantages | 20 Years Experiences | Keywords | Extrusionb Blow Molding Machine |
| Production Technics | Saving Energy | Hydraulic Valve | Japan Yuken |
