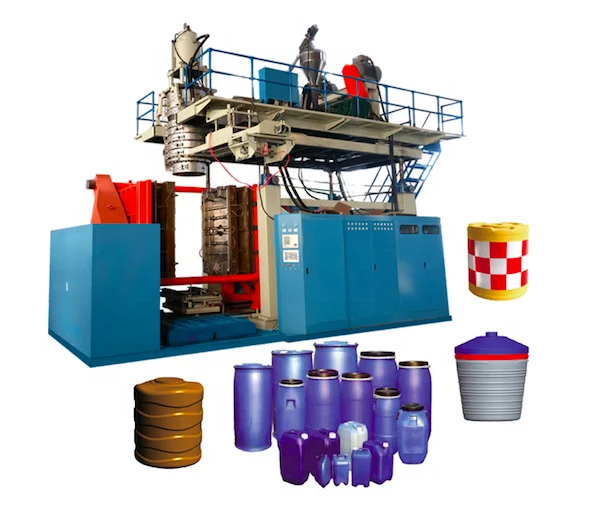

20L 50L Small Extrusion Blow Moulding Machine Jerrycan Drum Stretch Blow Molding Machine
20L 50L Small Extrusion Blow Moulding Machine Jerrycan Drum Stretch Blow Molding Machine
| plastic processed | HDPE, PE | Clamping Force (kN) | 800 |
| voltage | 380V/50HZ | automation | Automatic |
| No. of Screw Heating Zone | 6 | plc brand | Siemens |
| core components | Gearbox, Motor, Gear, Pump | key selling points | Automatic |
| machinery test report | Provided | video outgoing-inspection | Provided |
| output (kg/h) | 300 | power (kw) | 45 |
| weight (t) | 28 | dimension(l*w*h) | 10*3*5 |
| Screw L/D Ratio | 30 | screw diameter (mm) | 90 |
| screw heating power(kw) | 45 | extruder motor power(kw) | 90 |
| mold platen size(width)(mm) | 1350 | mold platen size(height)(mm) | 1350 |
| air pressure(mpa) | 1 | air comsumption(m³/min) | 0.3 |
| die head heating power(kw) | 45 | Blow Moulding Type | Extrusion Blow Molding Machine |
| After-sales Service Provided | Engineers | Product name | Plastic Extrusion Blow Molding Machine |
| Key words | Automatic Extrusion Blow Moulding Machine | Use | Drum |
| Name | Plastic Drum Blow Moulding Machine | Material | HDPE PE |
| Type | Extrusion Blow Molding Equipment | Station | Doule Station |
