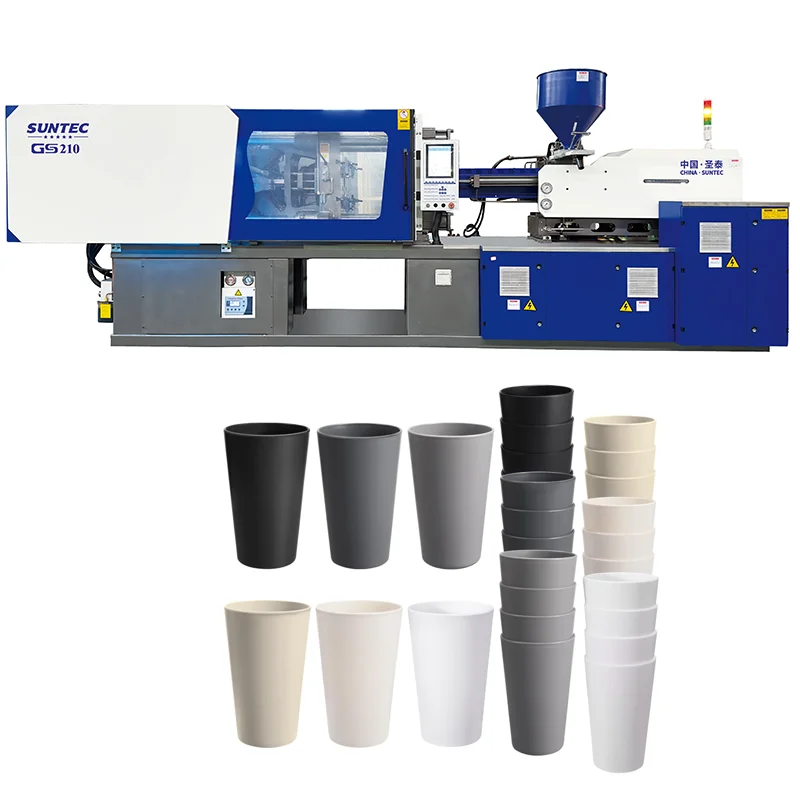

210T Servo Injection Molding Machine High Precision for Plastic Cup Storage Container Thin Wall Packaging
210T Servo Injection Molding Machine High Precision for Plastic Cup Storage Container Thin Wall Packaging
| machine type | Hydraulic | distance between tie bars | 470x470 mm |
| plastic processed | PP, Silicon, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE | style | Horizontal |
| ejector number | 5 | core components | Bearing, Gear, Pump, Motor, PLC, Pressure Vessel, Engine, Gearbox, Screw |
| machinery test report | Provided | video outgoing-inspection | Provided |
| plasticizing capacity(g/s) | 21 | injection weight (g) | 326 |
| injection rate (g/s) | 150 | weight (kg) | 160 |
| power (kw) | 11 | mold height(mm) | 130 - 380 |
| ejector stroke(mm) | 100 | ejector force(kn) | 33 |
| theoretical shot volume(cm³) | 176 | screw speed (rpm) | 0 - 210 |
| screw diameter (mm) | 45 | Screw L/D Ratio | 20 |
| open stroke(mm) | 430 |
