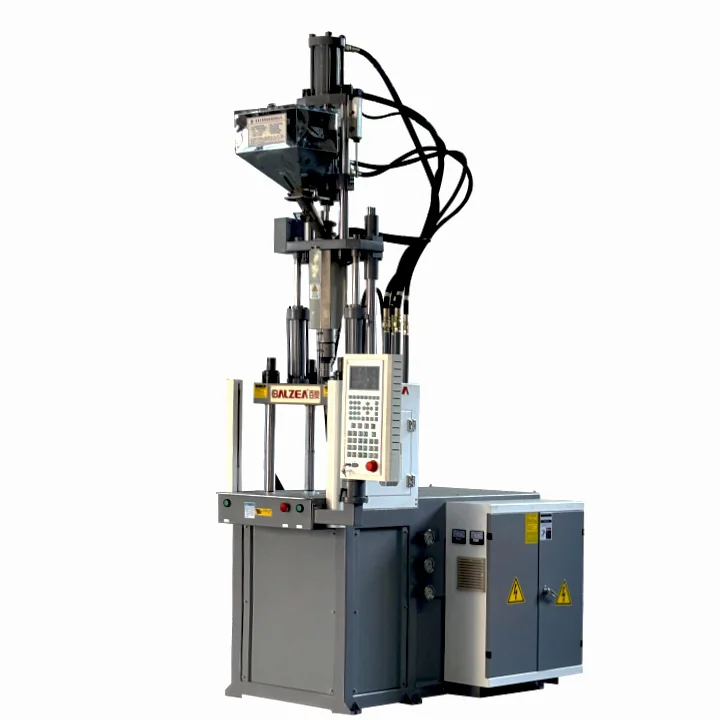

25 320 Ton Vertical Injection Molding Machine
25 320 Ton Vertical Injection Molding Machine
| machine type | Hydraulic | distance between tie bars | 270*200mm |
| plastic processed | ABS, PC, PP, PVC, FRPP/PVC, PPR, EVA, PA, Polystyrene, PE, HDPE/PP, ABS/PP, PE/PP, Polylactic Acid | style | VERTICAL |
| key selling points | High Safety Level | ejector number | 1 |
| core components | Bearing, Motor, Pump, PLC, Gear, Other, Pressure Vessel, Engine, Gearbox, Screw | machinery test report | Provided |
| video outgoing-inspection | Provided | injection weight (g) | 67 g |
| injection rate (g/s) | 36 g/s | weight (kg) | 1100 kg |
| power (kw) | 6.5 kW | mold height(mm) | 60 - 100 mm |
| ejector stroke(mm) | 70 mm | ejector force(kn) | 17.5 kN |
| theoretical shot volume(cm³) | 73 cm³ | screw speed (rpm) | 0 - 175 rpm |
| screw diameter (mm) | 32 mm | open stroke(mm) | 200 mm |
