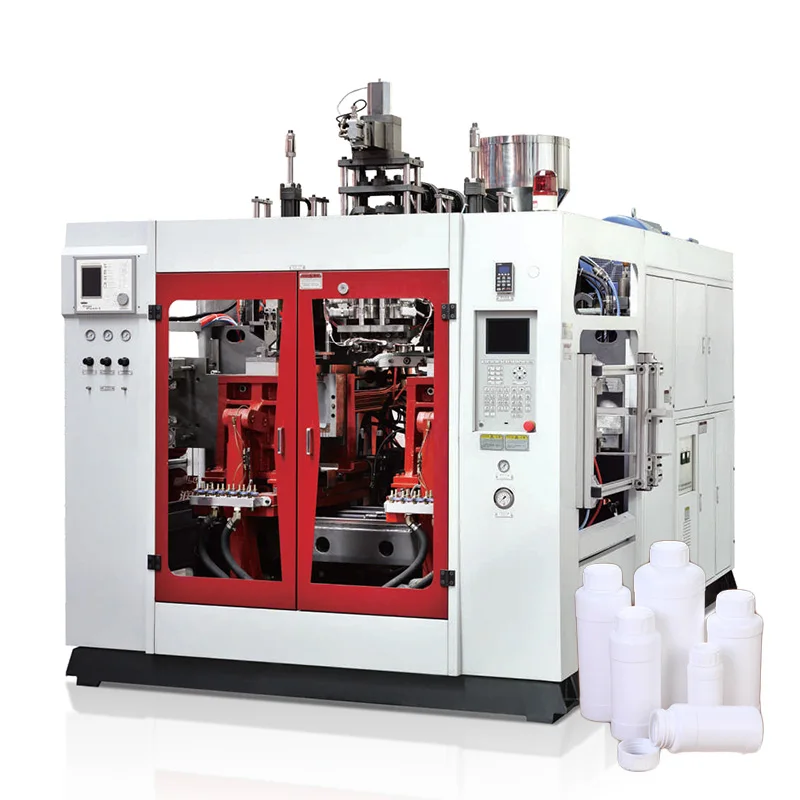

250ml 500ml 3 Layers Multilayers PE EVOH Plastic Bottles Coex Extrusion Blow Molding Machine
250ml 500ml 3 Layers Multilayers PE EVOH Plastic Bottles Coex Extrusion Blow Molding Machine
| plastic processed | PP, HDPE, PC, ABS, PVC, PE, ABS/PP, PE/PP, HDPE/PP | Clamping Force (kN) | 110 |
| voltage | 380V/50HZ | automation | Automatic |
| No. of Screw Heating Zone | 4 | plc brand | Customized |
| core components | PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump | key selling points | Energy Saving |
| machinery test report | Provided | video outgoing-inspection | Provided |
| output (kg/h) | 90 kg/h | power (kw) | 45 |
| weight (t) | 8.2 | dimension(l*w*h) | 4.2*2.9*2.8m |
| Screw L/D Ratio | 26 | screw diameter (mm) | 80 mm |
| screw heating power(kw) | 19.6 kW | extruder motor power(kw) | 30 kW |
| mold platen size(width)(mm) | 500 mm | mold platen size(height)(mm) | 360 mm |
| air pressure(mpa) | 0.8 MPa | air comsumption(m³/min) | 1.5 m³/min |
| die head heating power(kw) | 8.5 kW | Blow Moulding Type | Extrusion Blow Moulding |
| Automatic | Yes | Material | PE,PP,PVC,PA... |
| Machine type | Extrusion blow moulding machine | Range | 0-10L plastic bottle |
| Production | hdpe extrusion blow molding machine | High Pressure Valve Brand | Customized |
| Product name | 10l Pesticide bottle making machine | Die head No. | 1,2,3,4,6 |
