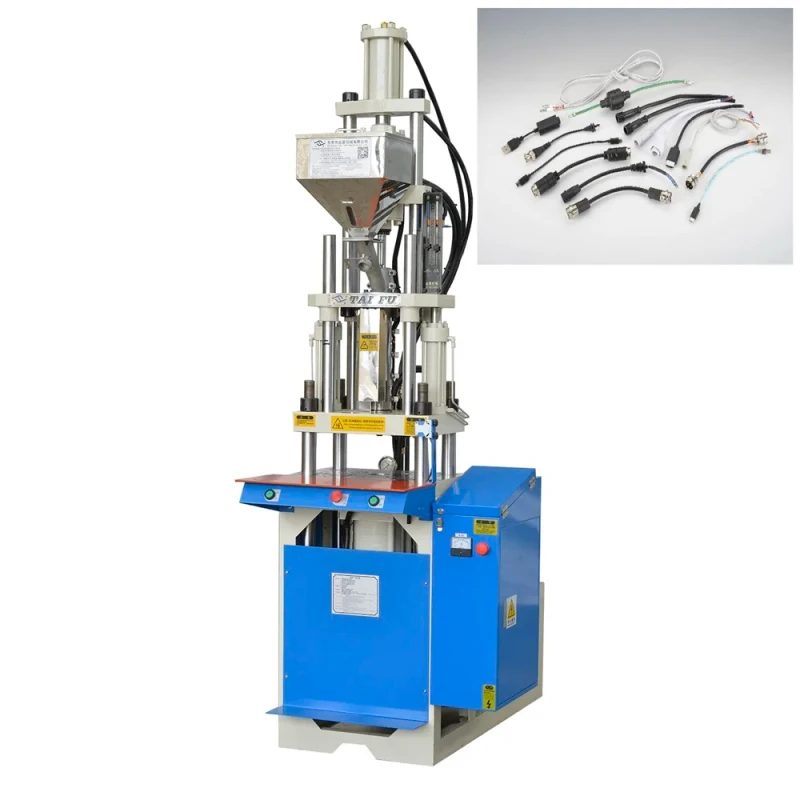

25ton Mini Vertical Injection Molding Machine for Producing Line Materials

25ton Mini Vertical Injection Molding Machine for Producing Line Materials
  • 25ton Mini Vertical Injection Molding Machine for Producing Line Materials

    • 25ton Mini Vertical Injection Molding Machine for Producing Line Materials

    Request a Quote
    machine typeHydraulicdistance between tie barsOther
    plastic processedPP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PPstyleVertical
    key selling pointsEasy To Operateejector numberOther
    core componentsBearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw, Othermachinery test reportProvided
    video outgoing-inspectionProvidedplasticizing capacity(g/s)58
    injection weight (g)58injection rate (g/s)42
    weight (kg)600power (kw)6
    mold height(mm)70 - 130 mmejector stroke(mm)28
    ejector force(kn)0.7theoretical shot volume(cm³)63
    screw speed (rpm)0 - 150 rpmscrew diameter (mm)26
    open stroke(mm)200Oil Tank Capacity120L
    Motor Power3.75KwHeater Power2.3Kw
    Space Between Tie Bars(H*V)370mm x 200mmHydraulic Ejector Force0.7
    Screw Stroke120
