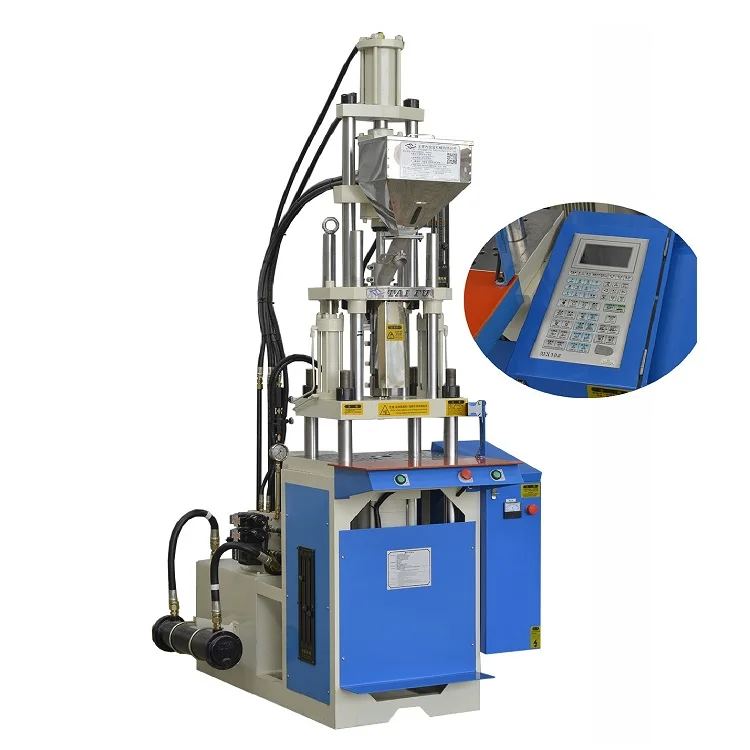

25Ton Plastic Standard Vertical Injection Molding Machine Used for Turning Holder
25Ton Plastic Standard Vertical Injection Molding Machine Used for Turning Holder
| machine type | Hydraulic | distance between tie bars | 370*200 |
| plastic processed | PP, PC, PVC | style | VERTICAL |
| key selling points | Energy Saving | ejector number | 1 |
| core components | Bearing, Motor, Pump, Gear, Screw, Engine, Pressure Vessel | machinery test report | Provided |
| video outgoing-inspection | Provided | injection weight (g) | 79 g |
| injection rate (g/s) | 55 g/s | weight (kg) | 900 kg |
| power (kw) | 4 kW | mold height(mm) | 70 - 130 mm |
| ejector stroke(mm) | 30 mm | ejector force(kn) | 6.86 kN |
| theoretical shot volume(cm³) | 85 cm³ | screw speed (rpm) | 10 - 150 rpm |
| screw diameter (mm) | 30 mm | open stroke(mm) | 200 mm |
| Product name | 25Ton Plastic Standard Vertical Injection Moulding Machine | Model | TFV4-25 |
| Used for | Turning Holder Plastic Part | Application | Plastic products |
| Clamping force | 394(30) | Keyword | Easy to operate,Enegy saving |
| Certification | ISO9001,CE | Color | white+grey/customized |
