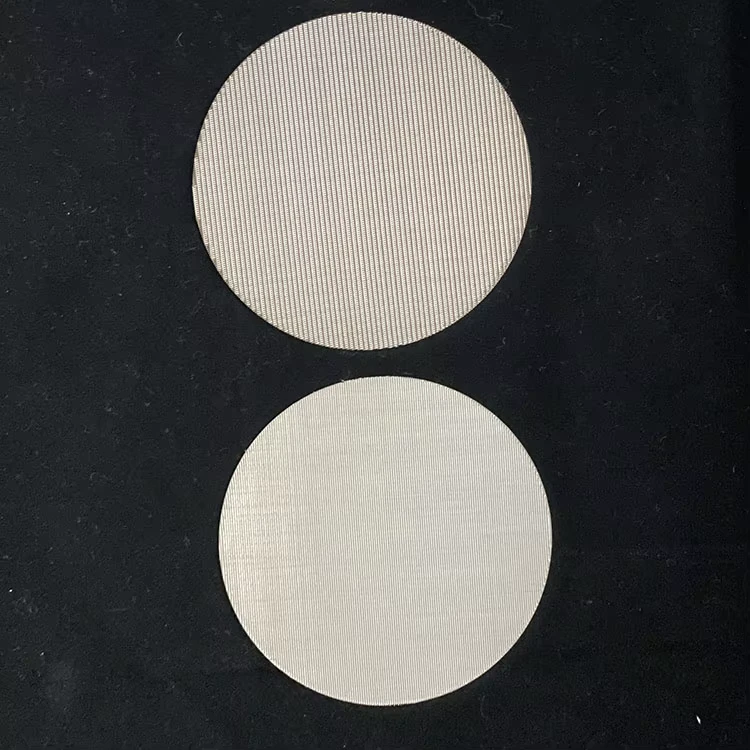

260 40 Stainless Steel Black Reversed Dutch Weave Wire Mesh Belt Screen Changer Extruder Filter Screens for Plastic Pelletizer
260 40 Stainless Steel Black Reversed Dutch Weave Wire Mesh Belt Screen Changer Extruder Filter Screens for Plastic Pelletizer
| usage | Solid Filter | material | Metal |
| type | Filter Elements | hole shape | Square |
| machinery test report | Provided | video outgoing-inspection | Provided |
| core components | Bearing, Pressure Vessel | weight (kg) | 3 |
| filter rating | 50% to 95% | thickness | 40 x 15 up to 350 x 150 (Warp x Weft) |
| length | common 10 m per one roll | width | 40 mm to 210 mm (up to 500 mm for special orders) |
| Item name | extruder filter screens | Material | extruder screen filters , Mainly SUS302, 304, 304L, 316, 316L |
| Width | 40mm - 210mm (up to 500mm for special orders) | Length | industrial stainless steel wire mesh , Typically 10 meters per roll |
| Wire diameter | 0.45 x0.45 0.30x0.45 0.30x0.40 0.15x0.25 0.13x0.25 0.041x0.13 mm | Hole size | 3.0 3.175 4.0 4.2 4.76 6.3 6.35 7.0 7.937 12 12.7 15.8 mm etc |
| Mesh count | extruder filter mesh , 40 x 15 up to 350 x 150 (Warp x Weft) | Surface treatment | plastic extruder melt filter , oiling , or customized |
| Weaving type | plastic extruder filters, Twilled Reverse Dutch | Sample | wire mesh screen filter for plastic pelletizer , available |
