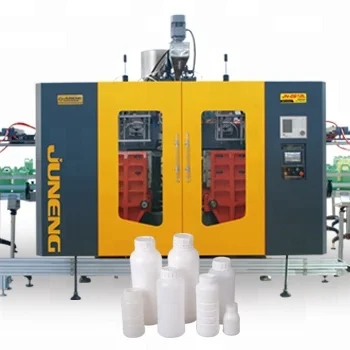

2S1L Plastic Bottle Blow Molding Machine

2S1L Plastic Bottle Blow Molding Machine
  • 2S1L Plastic Bottle Blow Molding Machine

    • 2S1L Plastic Bottle Blow Molding Machine

    Request a Quote
    plastic processedPP, HDPE, PE, PE/PP, HDPE/PPClamping Force (kN)20
    voltage220V/380V/3phaseautomationAutomatic
    No. of Screw Heating Zone3plc brandSiemens
    core componentsPLC, Engine, Bearing, Gearbox, Gear, Pumpkey selling pointsHigh Productivity
    machinery test reportProvidedvideo outgoing-inspectionProvided
    output (kg/h)240 kg/hpower (kw)11
    weight (t)2.5dimension(l*w*h)2.5*1.6*2
    Screw L/D Ratio25screw diameter (mm)50 mm
    screw heating power(kw)2.8 kWextruder motor power(kw)40 kW
    mold platen size(width)(mm)100 mmmold platen size(height)(mm)280 mm
    air pressure(mpa)0.8 MPaair comsumption(m³/min)0.3 m³/min
    die head heating power(kw)3 kWBlow Moulding TypeExtrusion Blow Moulding
    StationDoule StationHydraulic ValveYuken
    Layer1-6 LayersAfter Warranty ServiceLife
    PLC ControllerMITSUBISHIFrequency ConverterINOVANCE
    Oil SealUK SealtechAC ContactorSchneider
    Blowing ValueTAIWAN AIRTAC
