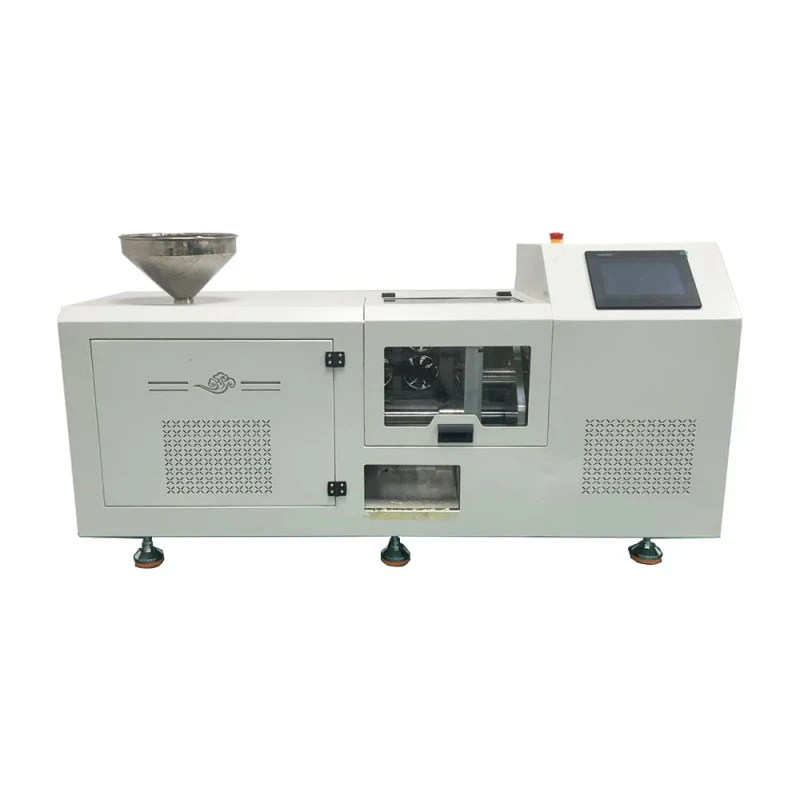

2T 8T Desktop Mini Small Horizontal Injection Molding Machine
2T 8T Desktop Mini Small Horizontal Injection Molding Machine
| machine type | Electric | distance between tie bars | customizable |
| plastic processed | PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, PA, PE, ABS/PP, PE/PP, Nylon | style | Horizontal |
| key selling points | High Safety Level | ejector number | Other |
| core components | Motor | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 20 |
| injection weight (g) | 20 | injection rate (g/s) | 35 |
| weight (kg) | 60 | power (kw) | 1 |
| ejector stroke(mm) | 25 | ejector force(kn) | 20 |
| theoretical shot volume(cm³) | 6.72 | screw speed (rpm) | 1 - 200 rpm |
| screw diameter (mm) | 20 | open stroke(mm) | 150 |
| Product name | Desktop Mini Injection Molding Machine For Processing Small Plastics | Product Model | 3059E-2T |
| Control System | PLC | Locking Force | 2.0T |
| Motor Type | servo motor | Actual Firing Rate | ≥1500mm3/S |
| Maximum Injection Amount | 20g | Maximum Heating Temperature | 350°C |
| Voltage | 220V/ 60H Z | Certification | CE |
