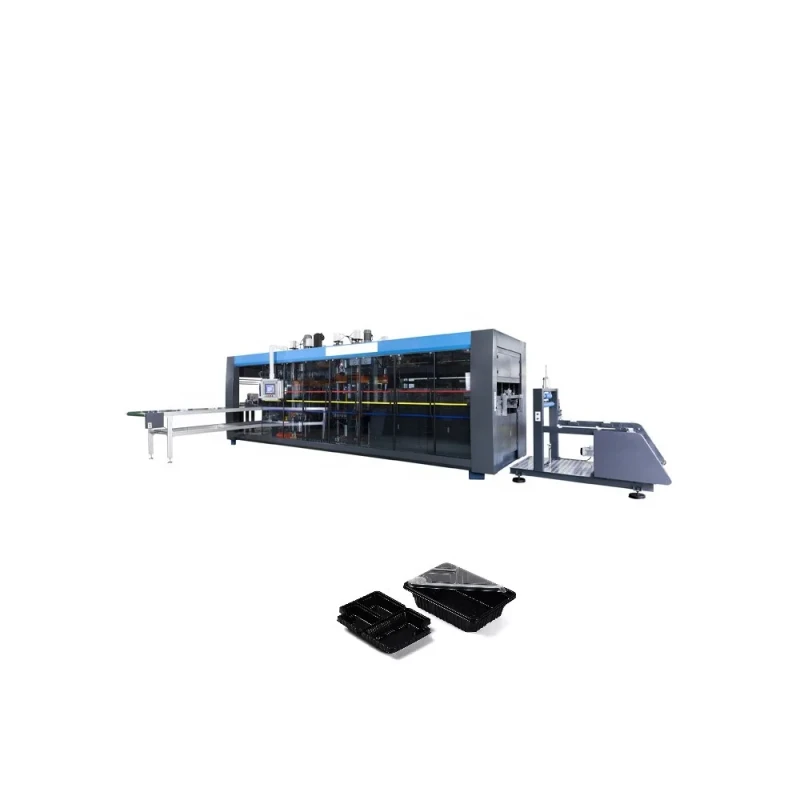

3 Stations Full Automatic Plastic Food Box Container Thermoforming Food Container Forming Machine

3 Stations Full Automatic Plastic Food Box Container Thermoforming Food Container Forming Machine
  • 3 Stations Full Automatic Plastic Food Box Container Thermoforming Food Container Forming Machine

    • 3 Stations Full Automatic Plastic Food Box Container Thermoforming Food Container Forming Machine

    Request a Quote
    plastic typePVC, PS, PP, PETproduct typeFast Food Box
    processing typePlastic Thermoforming Machinepower(kw)150KW
    voltage380V 50hzcore componentsPLC, Engine, Gearbox, Motor, Pressure Vessel, Pump
    machinery test reportProvidedvideo outgoing-inspectionProvided
    key selling pointsHigh Productivitydimension(l*w*h)9000mm*2300mm*2500mm
    forming width (mm)740 mmforming length (mm)850 mm
    weight (t)12 Tmax.forming height(mm)120 mm
    air pressure(mpa)0.8 MPasheet thickness(mm)0.15 - 2 mm
    heating power (kw)112 kWair comsumption(l/min)10 L/min
    water comsumption(l/min)10 L/minApplicationPlastic Products
    Suitable materialPET PS PVC PPForming Area710*850*
    Max Forming Depth120mmAir Consumption0.8m3/min
    ColorCustomized ColorControlPLC+Touch Screen
    Delivery Time60 Working DaysMachine NameFully Automatic Plastic Products Forming Machine
    ModelHW-7185 Thermoforming Machine
