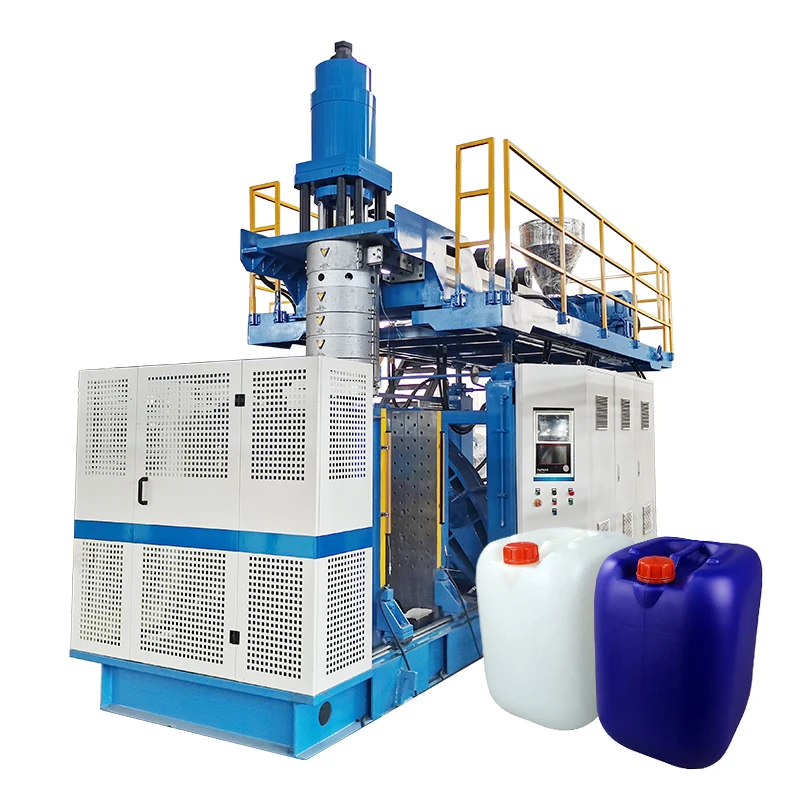

30litres Blow Molding Machine Automatic 25L 30L HDPE Drum Extrusion Blowing Molder Machinery

30litres Blow Molding Machine Automatic 25L 30L HDPE Drum Extrusion Blowing Molder Machinery
  • 30litres Blow Molding Machine Automatic 25L 30L HDPE Drum Extrusion Blowing Molder Machinery

    • 30litres Blow Molding Machine Automatic 25L 30L HDPE Drum Extrusion Blowing Molder Machinery

    Request a Quote
    plastic processedHDPE, PE, PE/PP, HDPE/PP, HMWHDPEClamping Force (kN)1500
    voltage220V/380V/CustomizedautomationAutomatic
    No. of Screw Heating Zone6plc brandMitsubishi
    core componentsEngine, Motor, Pumpkey selling pointsHigh Safety Level
    machinery test reportProvidedvideo outgoing-inspectionProvided
    output (kg/h)380 kg/hpower (kw)307
    weight (t)35dimension(l*w*h)11.5*9*6.9m
    Screw L/D Ratio30screw diameter (mm)120 mm
    screw heating power(kw)47 kWextruder motor power(kw)132 kW
    mold platen size(width)(mm)950 mmmold platen size(height)(mm)1600 mm
    air pressure(mpa)1 MPaair comsumption(m³/min)1.8 m³/min
    die head heating power(kw)38 kWProduct namejerry can making machine
    Blow Moulding TypeExtrusion Blow MouldingAutomaticYes
    Product possiblewater tank, container,drum, barrel, pallet, etc.MaterialHDPE, PE, PP, etc
    Applicationplastic 10l to 30l containerMachine typechemical barrel making machine
    Key wordsplastic chemical drum making machine
