Professional Manufacturer of Plastic Processing Machinery

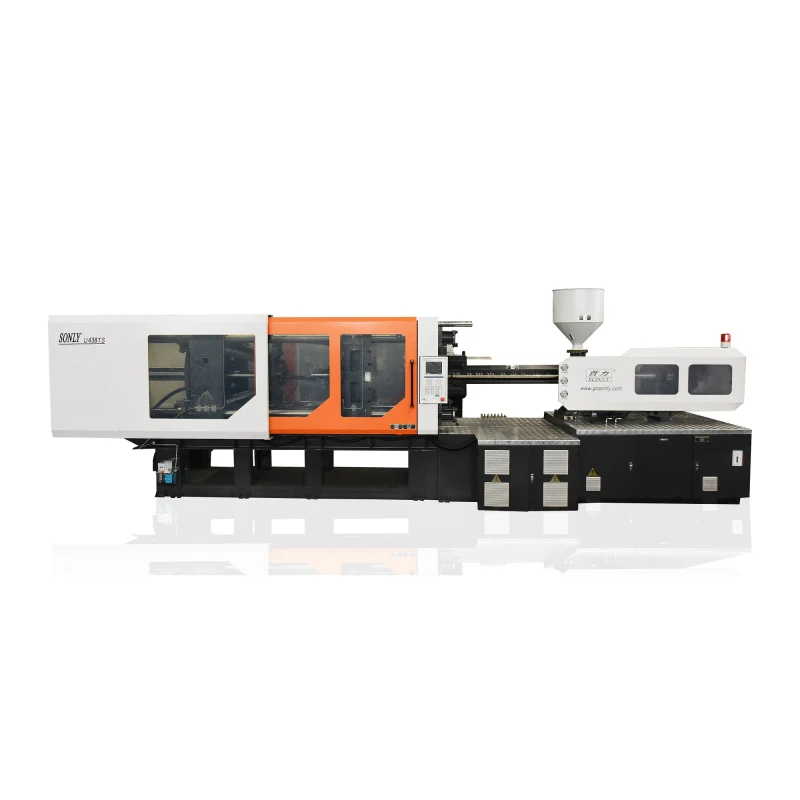

400 450 Ton Injection Molding Machine
400 450 Ton Injection Molding Machine
| machine type | Hydraulic | plastic processed | PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, PA, Polystyrene, PE, LDPE, HDPE/PP, ABS/PP, PE/PP |
| style | Horizontal | key selling points | High Productivity |
| ejector number | 12+1 | core components | Bearing, Motor, Pump, Gear, PLC, Other, Pressure Vessel, Engine, Gearbox |
| machinery test report | Provided | video outgoing-inspection | Provided |
| plasticizing capacity(g/s) | 109 | injection weight (g) | 1788 |
| injection rate (g/s) | 730.3 | weight (kg) | 18000 |
| power (kw) | 75 | mold height(mm) | 280 - 780 mm |
| ejector stroke(mm) | 170 | ejector force(kn) | 90 |
| theoretical shot volume(cm³) | 1965 | screw speed (rpm) | 0 - 194 |
| screw diameter (mm) | 80 | Screw L/D Ratio | 22 |
| open stroke(mm) | 780 | BOUNDARY DIMENSION(L*W*H) | 8.3*2*2.53 m |
| Certification | CE, ISO9001 |
