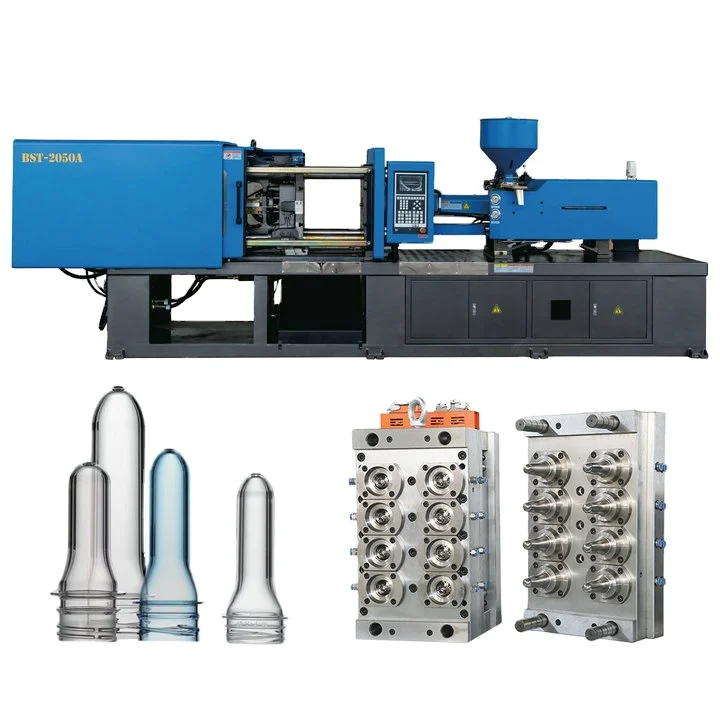

450ton Automatic Injection Molding Machine for PET Preform Bottle
450ton Automatic Injection Molding Machine for PET Preform Bottle
| machine type | Hydraulic | distance between tie bars | 720*720mm |
| plastic processed | PET | style | Horizontal |
| key selling points | High Productivity | ejector number | 13 |
| core components | Bearing, Motor, Pump, Gear, PLC, Other, Pressure Vessel, Engine, Gearbox, Screw | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 378 |
| injection weight (g) | 1215 g | injection rate (g/s) | 378 g/s |
| weight (kg) | 5500 kg | power (kw) | 57.5 kW |
| mold height(mm) | 280 - 710 mm | ejector stroke(mm) | 160 mm |
| ejector force(kn) | 85 kN | theoretical shot volume(cm³) | 1680 cm³ |
| screw speed (rpm) | 1 - 180 rpm | screw diameter (mm) | 75 mm |
| Screw L/D Ratio | 20.6 | open stroke(mm) | 700 mm |
| Injection Molding Machine Classification | PET Preform Making Injection Molding Machine | Injection pressure | 160 Mpa |
| Mould thickness | 280-710 mm | Ejector tonnage | 85KN |
| Ejector number | 13 Pieces | Hole diameter | 160 mm |
| Max pump pressure | 16 Mpa | Machine dimension | 7.3*2.3*2.4m |
| Machine weight | 13.8 t | Oil tank capacity | 450 L |
