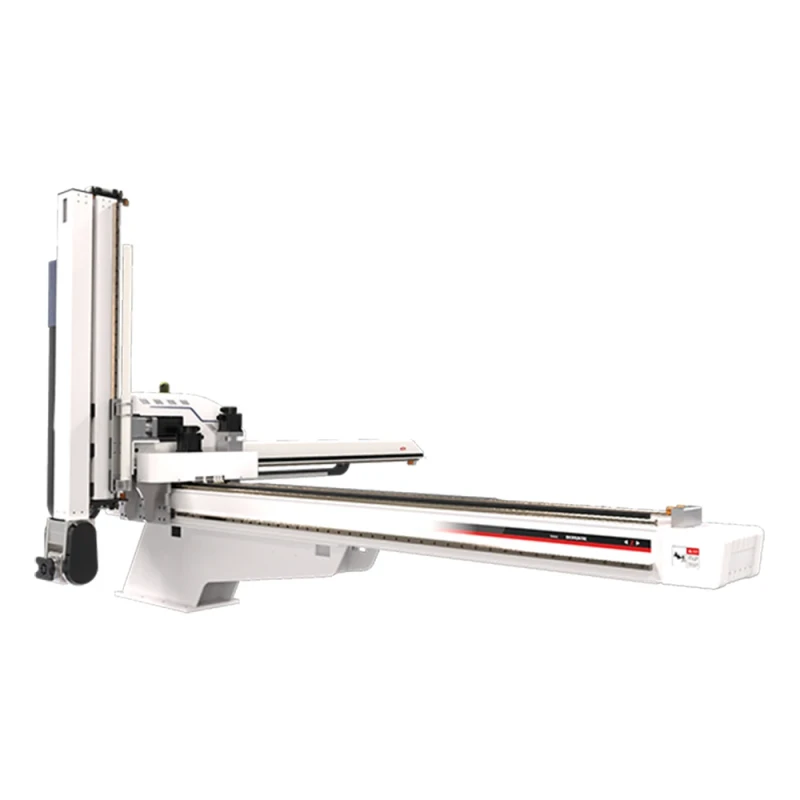

5 Axis Servo Injection Molding Robot High Precision Automatic Pick and Place Industrial Arm with 3200x2400mm Travel
5 Axis Servo Injection Molding Robot High Precision Automatic Pick and Place Industrial Arm with 3200x2400mm Travel
| Horizonal Travel(mm) | 3200mm | Condition | New |
| Vertical Travel(mm) | 2400mm | Dimension(L*W*H) | No data |
| Weight | 1761kg | Power capacity (kVA) | 5.9 |
| Applicable molding machine (ton) | 1300T-2100T | Fixture type | AC servo motor |
| Pull stroke (mm) | 2000mm | Maximum load (kg) | 40 |
| Withdrawal time (sec) | 7.04 | Full cycle time (sec) | 15.38 |
| Air consumption (NI/cycle) | 15 | Positioning accuracy (mm) | ±0.05 |
