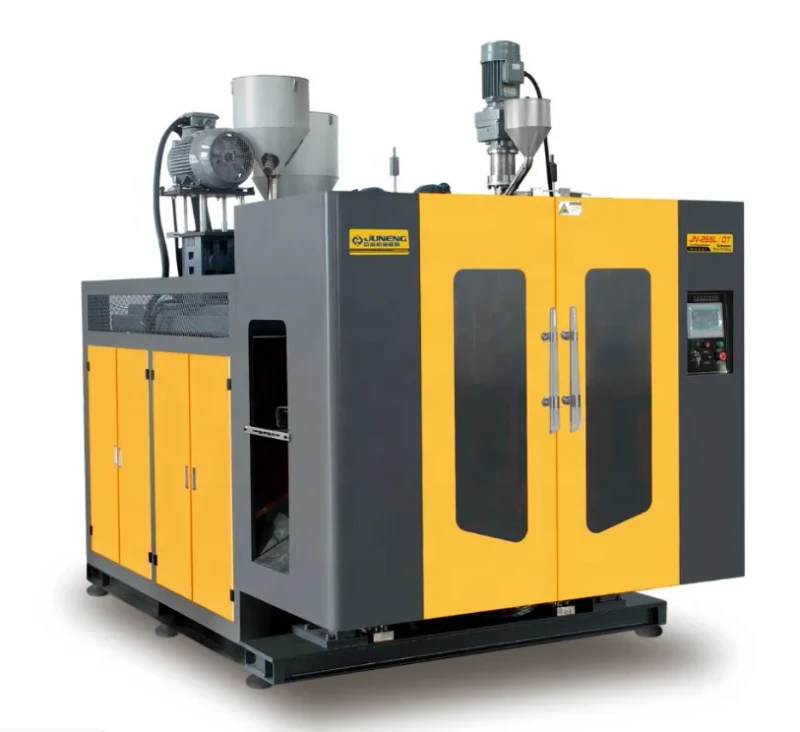

5 Liter Plastic Blow Moulding Bottle Machine

5 Liter Plastic Blow Moulding Bottle Machine
  • 5 Liter Plastic Blow Moulding Bottle Machine

    • 5 Liter Plastic Blow Moulding Bottle Machine

    Request a Quote
    plastic processedPP, HDPE, PE, HDPE/PPClamping Force (kN)68
    voltageCustomizedautomationAutomatic
    No. of Screw Heating Zone3plc brandSiemens
    core componentsPLC, Motor, Pumpkey selling pointsAutomatic
    machinery test reportProvidedvideo outgoing-inspectionProvided
    output (kg/h)80 kg/hpower (kw)37
    weight (t)6.5dimension(l*w*h)3.4*2.1*2.2
    Screw L/D Ratio28screw diameter (mm)70 mm
    screw heating power(kw)5 kWextruder motor power(kw)22 kW
    mold platen size(width)(mm)370 mmmold platen size(height)(mm)400 mm
    air pressure(mpa)1.25 MPaair comsumption(m³/min)0.4 m³/min
    die head heating power(kw)4 kWPC SCREENSIEMENS GERMANY
    CONTROLLERSIEMENS GERMANYOIL PUMPJAPAN YUKEN
    MAIN DIRECTION VALVETAIWAN NORTHMAN HYDRAULIC VALVEOIL SEALUK SEALTECH
    FREQUENCYDANMARK HOLIPConditionNew
    Marketing TypeOrdinary ProductWarranty of core components2 years
    ApplicationBottleApplicable IndustriesManufacturing Plant, Food & Beverage Shops
    Showroom LocationEgypt, United Kingdom, Viet Nam, PhilippinesAccumulator Capacity(L)0
    Hollow part volume5literYear2020
