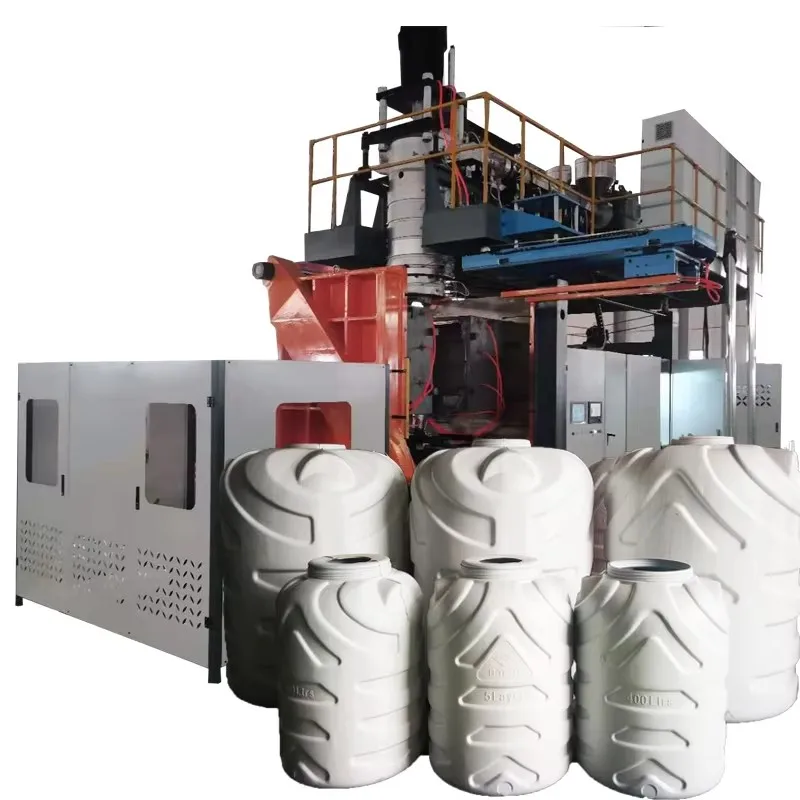

500 L 10000 Litre HDPE Plastic Water Tank Production Line Blowing Moulding Making Automatic PE Extrusion Blow Molding Machines

500 L 10000 Litre HDPE Plastic Water Tank Production Line Blowing Moulding Making Automatic PE Extrusion Blow Molding Machines
  • 500 L 10000 Litre HDPE Plastic Water Tank Production Line Blowing Moulding Making Automatic PE Extrusion Blow Molding Machines

    • 500 L 10000 Litre HDPE Plastic Water Tank Production Line Blowing Moulding Making Automatic PE Extrusion Blow Molding Machines

    Request a Quote
    plastic processedHDPE, PEClamping Force (kN)550,800,1000,1800,2000,2200
    voltage380 V, 110 V, 220 V, 415 V, 440 VautomationAutomatic
    No. of Screw Heating Zone4plc brandSiemens
    core componentsPLC, Engine, Bearing, Gearbox, Motor, Gear, Pump, Pressure Vesselmachinery test reportProvided
    video outgoing-inspectionProvidedoutput (kg/h)800
    power (kw)210weight (t)28
    dimension(l*w*h)8*5*5.5Screw L/D Ratio28
    screw diameter (mm)130screw heating power(kw)46
    extruder motor power(kw)55mold platen size(width)(mm)1600
    mold platen size(height)(mm)1500air pressure(mpa)0.8
    air comsumption(m³/min)2.4die head heating power(kw)60
    Blow Moulding TypeExtrusion Blow Mouldingapplicable industriesmanufacturing plant,food & beverage factory, energy & mining
    warranty of core components1 yearafter-sales service providedOnline Support, field installation, commissioning and training
    after warranty serviceOnineconditionnew
    blow moulding typeExtrusion Blow Moulding
