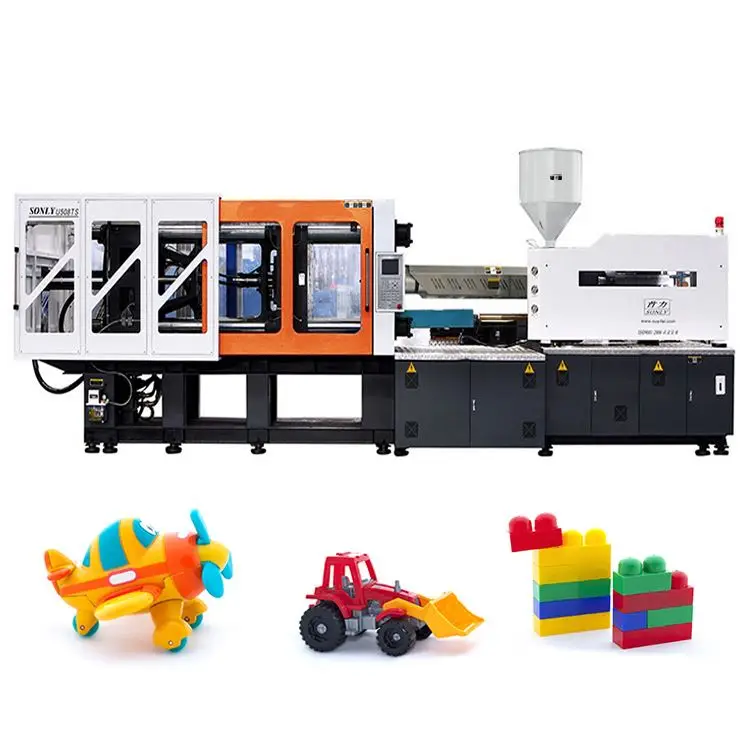

500 Ton Injection Molding Machines Plastic Toy Making Machinery
500 Ton Injection Molding Machines Plastic Toy Making Machinery
| machine type | Hydraulic | plastic processed | PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, PA, Polystyrene, PE, LDPE, HDPE/PP, ABS/PP, PE/PP |
| style | Horizontal | key selling points | High Productivity |
| ejector number | 12+1 | core components | Bearing, Motor, Pump, Gear, PLC, Other, Pressure Vessel, Engine, Gearbox |
| machinery test report | Provided | video outgoing-inspection | Provided |
| plasticizing capacity(g/s) | 90 | injection weight (g) | 2018 |
| injection rate (g/s) | 545.82 | weight (kg) | 20000 |
| power (kw) | 67 | mold height(mm) | 290 - 800 mm |
| ejector stroke(mm) | 225 | ejector force(kn) | 152 |
| theoretical shot volume(cm³) | 2218 | screw diameter (mm) | 85 |
| Screw L/D Ratio | 22 | open stroke(mm) | 775 |
| BOUNDARY DIMENSION(L*W*H) | 7.8*2.3*2.7 m | After-sales Service Provided1 | Field installation, commissioning and training |
| After-sales Service Provided2 | Field maintenance and repair service | After Warranty Service1 | Video technical support, Online support |
| After Warranty Service2 | Spare parts, Field maintenance and repair service | Local Service Location1 | TurkeyPeruIndonesiaMexicoRussia |
| Local Service Location2 | ArgentinaSouth KoreaColombiaAlgeriaBangladeshSouth Africa | Certification | CE, ISO9001 |
