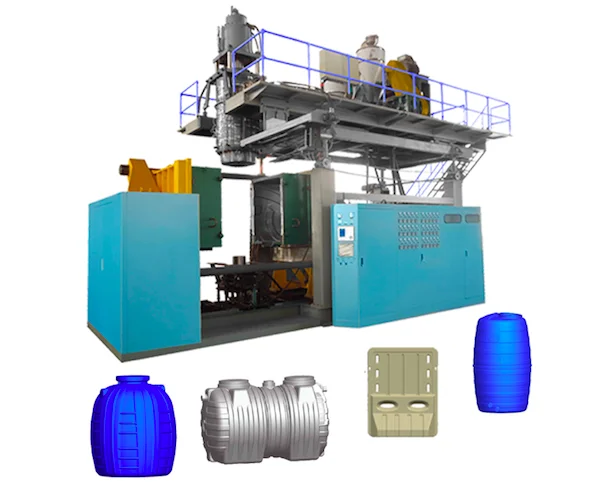

500L 1000L 2000L 3000L 5000L 10000L Plastic Water tank Blow Molding Machine
500L 1000L 2000L 3000L 5000L 10000L Plastic Water tank Blow Molding Machine
| plastic processed | PE, HDPE | Clamping Force (kN) | 800 |
| voltage | 380-415V | automation | Automatic |
| core components | PLC, Gearbox, Motor | key selling points | Energy Saving |
| machinery test report | Provided | video outgoing-inspection | Provided |
| output (kg/h) | 240 kg/h | power (kw) | 40 |
| weight (t) | 25 | dimension(l*w*h) | 10*3*5 |
| Screw L/D Ratio | 30 | screw diameter (mm) | 110 mm |
| screw heating power(kw) | 31.5 kW | extruder motor power(kw) | 40 kW |
| mold platen size(width)(mm) | 1350 mm | mold platen size(height)(mm) | 1350 mm |
| air pressure(mpa) | 0.8 MPa | air comsumption(m³/min) | 0.2 m³/min |
| die head heating power(kw) | 30 kW | Blow Moulding Type | Extrusion Blow Moulding |
| Automatic | Yes | After-sales Service Provided | Engineers |
| Product name | Water Tank Blowing Molding Machine | Key words | HDPE Extrusion Blow Moulding Machine |
| Use | Water Storage | Material | HDPE PE |
| Name | Plastic Tank Blow Moulding Machine | Type | Extrusion Blow Molding Equipment |
