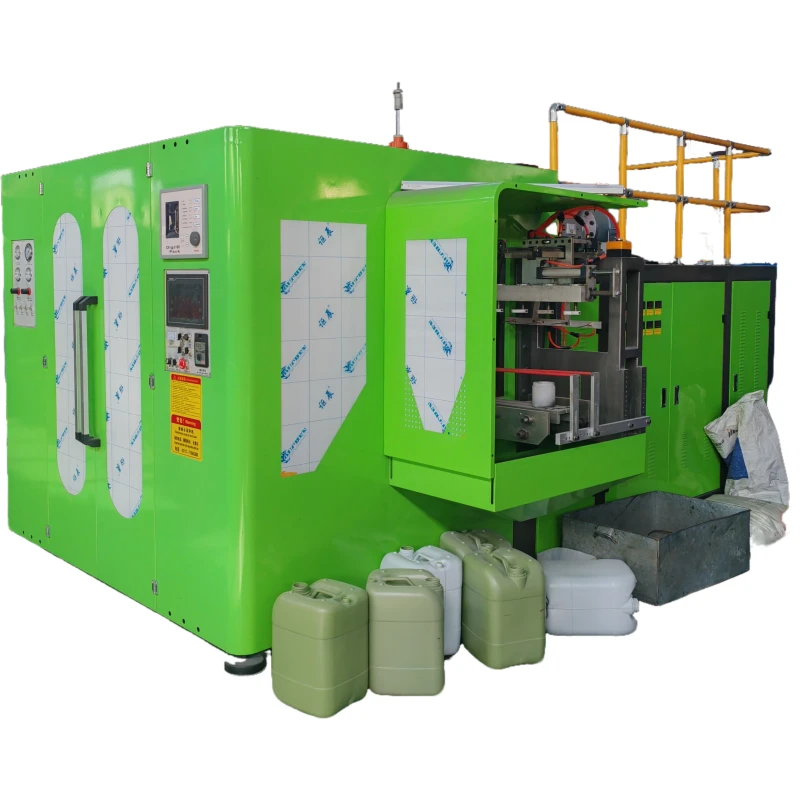

5L Jerrycan Blow Molding Machine 10L Drum Extrusion Blowing 20L 30L Barrel Double Station
5L Jerrycan Blow Molding Machine 10L Drum Extrusion Blowing 20L 30L Barrel Double Station
| plastic processed | PP, HDPE, PVC, PE | Clamping Force (kN) | 70 |
| voltage | 380v | automation | Automatic |
| No. of Screw Heating Zone | 8 | core components | PLC, Motor, Pump |
| key selling points | High Safety Level | machinery test report | Provided |
| video outgoing-inspection | Provided | output (kg/h) | 90 |
| power (kw) | 22 | weight (t) | 7 |
| dimension(l*w*h) | 4800*2300*2300mm | Screw L/D Ratio | 25 |
| screw diameter (mm) | 80 | screw heating power(kw) | 20 |
| extruder motor power(kw) | 22 | mold platen size(width)(mm) | 400 |
| mold platen size(height)(mm) | 500 | air pressure(mpa) | 0.6 |
| air comsumption(m³/min) | 0.5 | die head heating power(kw) | 20 |
| Name | hydraulic servo blow molding machine | Key words | Plastic Bottle Making Machine |
| Type | Extrusion Blow Molding Equipment | Station | Doule Station |
| Use | Making Bottle | Material application | PP PE |
| Product name | Automatic Blowing Molding Machine | Product Type | Plastic Bottle Jerrycan |
| After Warranty Service | Onine | After-sales Service Provided | Online Support |
