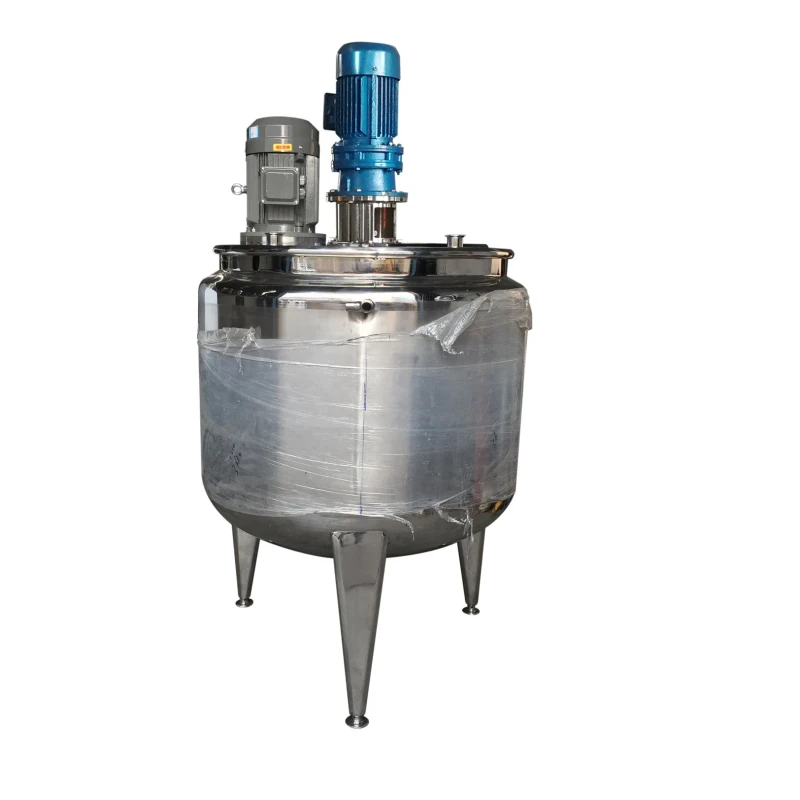

600L Steam Jacketed Mixing Tank Sauce Cooking Mixing Tank with High Shear Emulsifier
600L Steam Jacketed Mixing Tank Sauce Cooking Mixing Tank with High Shear Emulsifier
| material processed | Plastics, Chemicals, Food, sauce | mixer type | Homogenizer |
| material | SUS304, SUS316L | product type | oil |
| additional capabilities | heating & cooling | voltage | 220V / 380V |
| Power (kW) | 22 kW | core components | heating system, mixing tank, temperature controller, tank mixer, homogenizer |
| machinery test report | factory direct supply | video outgoing-inspection | factory direct supply |
| barrel volume (l) | 500 | key selling points | high shear mixer on heating tank |
| weight (kg) | 20 KG | range of spindle speed(r.p.m) | 0 - 3600 r.p.m |
| dimension(l*w*h) | 1100x1100x1700mm | Tank structure | Wing top Jacketed mixing tank with high shear homogenizer |
| Tank capacity | 600Liter | Heating medium | Steam heating |
| Heat exchange device | Heating Coil / U-steel / half-tube / Dimple jacket | Construction material | SS304 / SS316L |
| Temp. Control | manual temp. control / automatic control | Mixing speed | 36rpm, bottom scraping agitator |
| Emulsifying speed | 2800rpm / 3600rpm emulsifier | Drainage pipe | DN50 |
| Power Supply | 380V 50Hz 3phase / 220V 60Hz 3phase |
