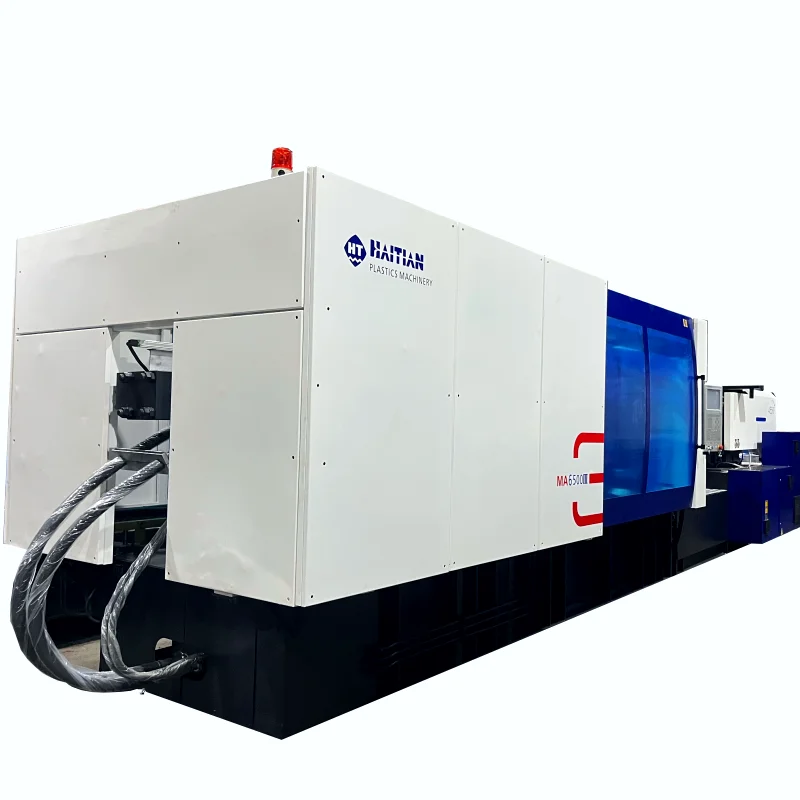

650 Ton Injection Molding Machine High Precision Plastic Molding Equipment
650 Ton Injection Molding Machine High Precision Plastic Molding Equipment
| machine type | Hybrid | style | Horizontal |
| core components | Motor, PLC, Pressure Vessel, Engine, Pump, Bearing, Gear, Screw, Gearbox | machinery test report | Not Available |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 80.1 |
| injection weight (g) | 2344 | injection rate (g/s) | 620 |
| weight (kg) | 30200 | power (kw) | 49.25 |
| mold height(mm) | 400 - 900 | ejector stroke(mm) | 260 |
| ejector force(kn) | 175 | theoretical shot volume(cm³) | 2576 |
| screw diameter (mm) | 90 | Screw L/D Ratio | 22 |
| open stroke(mm) | 970 | Space Between Tie Bars | 895*895 |
| Machine Dimension(L*W*H) m | 9.9*2.32*2.7 |
