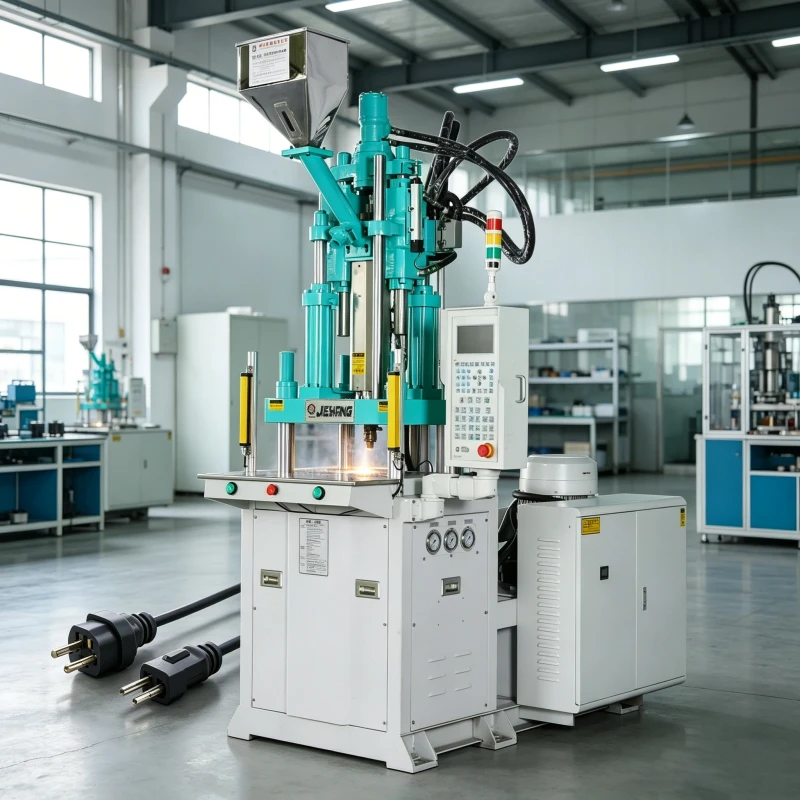

85 Ton Vertical Injection Molder for Power Plug & Electronic Connectors

85 Ton Vertical Injection Molder for Power Plug & Electronic Connectors
  • 85 Ton Vertical Injection Molder for Power Plug & Electronic Connectors

    • 85 Ton Vertical Injection Molder for Power Plug & Electronic Connectors

    Request a Quote
    machine typeElectricdistance between tie bars375*205
    styleVERTICALkey selling pointsEasy To Operate
    ejector number1core componentsMotor, PLC
    machinery test reportProvidedvideo outgoing-inspectionProvided
    plasticizing capacity(g/s)76injection weight (g)74
    injection rate (g/s)76weight (kg)1300
    power (kw)6.3mold height(mm)100 - 150 mm
    ejector stroke(mm)135ejector force(kn)1.3
    theoretical shot volume(cm³)76screw speed (rpm)1 - 205 rpm
    screw diameter (mm)30Screw L/D Ratio115
    open stroke(mm)180Plastic TypeThermoplastic
    ItemInjection machine machineInjection pressure886-1530 kg/cm2
    Operating LanguageEnglish, Spanish, Japanese, Arab, etc.Screw Diameter26-30 mm
    Ejetor Stoke135 mmWorking Efficiency200 M/H
    Mold4-8 PCS/MShipping weight1.6 Tons
