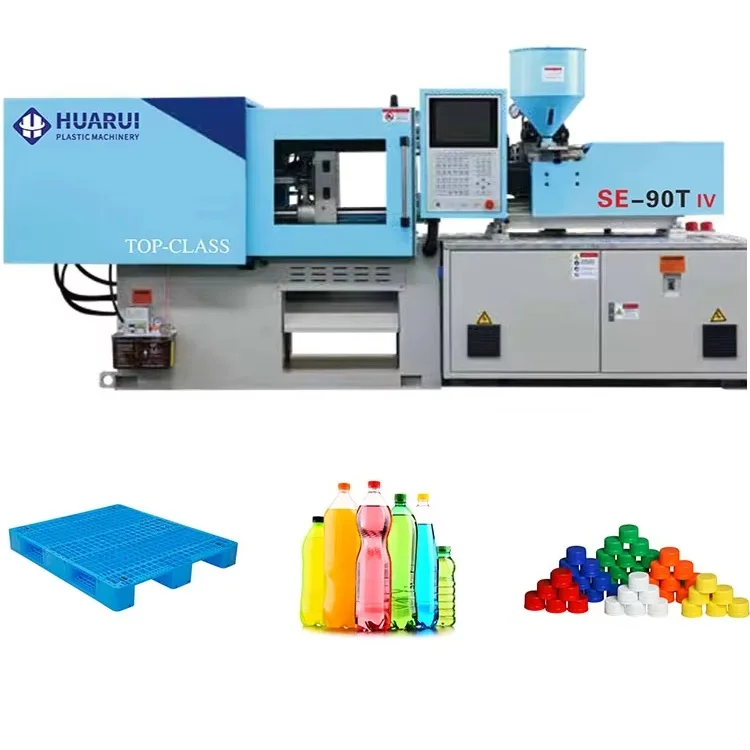

90T Horizontal Preform Injection Molding Moulding Machine Plastic Injection Molding Machine
90T Horizontal Preform Injection Molding Moulding Machine Plastic Injection Molding Machine
| machine type | Hydraulic, Electric | distance between tie bars | 370*370 |
| style | Horizontal | key selling points | Wide Space Between Tie-Bars |
| ejector number | 5 | core components | Motor, Pump, PLC, Screw |
| machinery test report | Provided | video outgoing-inspection | Provided |
| plasticizing capacity(g/s) | 0 | injection weight (g) | 175 |
| injection rate (g/s) | 98 | weight (kg) | 3500 |
| power (kw) | 8.6 | mold height(mm) | 150 - 380 mm |
| ejector stroke(mm) | 100 | ejector force(kn) | 33 |
| theoretical shot volume(cm³) | 192 | screw speed (rpm) | 1 - 200 rpm |
| screw diameter (mm) | 38 | Screw L/D Ratio | 20 |
| open stroke(mm) | 340 | Product name | Injection molding machine |
| Function | Plstic Injection Molding Machinery | Size | 4.1*1.2*1.8M |
| Application | Inserting Plastic Products | Material | Steel |
| Colour | Blue | Weight | 3500kg |
| Usage | Plastic Product Molding | Sample | Acceptable |
| Delivery Time | 30 days |
