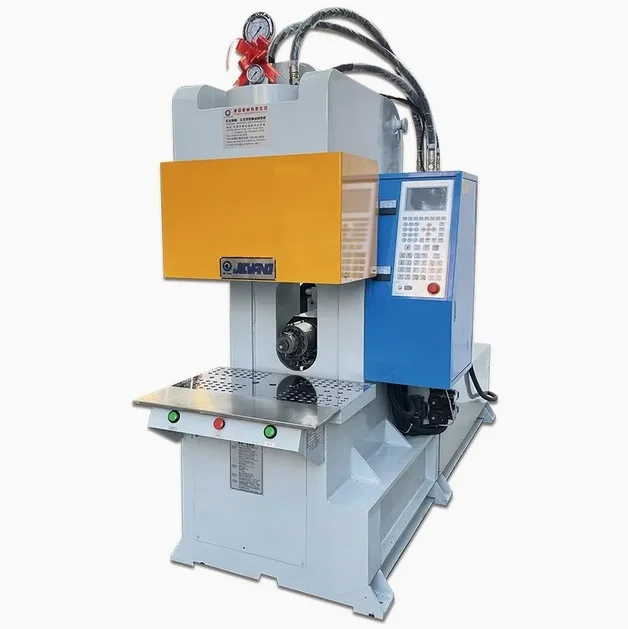

Advanced Plastic Vertical Clamping Horizontal Injection Molding Machine
Advanced Plastic Vertical Clamping Horizontal Injection Molding Machine
| machine type | Hydraulic | style | VERTICAL |
| key selling points | High Productivity | ejector number | 3 |
| core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 130 |
| injection weight (g) | 459 | injection rate (g/s) | 127.5 |
| weight (kg) | 5000 | power (kw) | 11 |
| mold height(mm) | 190 - 250 mm | ejector stroke(mm) | 100 |
| ejector force(kn) | 26.5 | theoretical shot volume(cm³) | 441.5 |
| screw speed (rpm) | 0 - 180 rpm | screw diameter (mm) | 50 |
| open stroke(mm) | 200 | Product Name | Electric Plug Making Machine Plastic Injection Moulding Machine |
| Max. Injection Pressure | 132 Mpa | Injection Speed | 65 mm/s |
| Injection stroke | 225 mm | NO. of Temperature control | 3+1 |
| (L*W) Platen size | 750*380 mm | System pressure | 13.7 Mpa |
| Oil Tank Capacity | 265 L | Heater Power | 10.2 KW |
| Machine Dimension(L*W*H) | 3.4*1.2*2.5 m |
